12kv 24kv 40.5kv 66kv 72.5kv 126kv 220kv AC Disconnect Switch

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: GW4
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Frequency: 50/60Hz Poles Number: 3
Phase: 3 Phase Or Single Phase Standard: IEC/GB
Function: Break Or Switch The Line. Installation Location: Power Plants
Warranty: 12 Months Rated Voltage: 12kv, 24kv, 40.5kv, 66kv, 72.5kv, 126kv 220kv
Rated Current: 200A-3150A
High Light:

220kv AC Disconnect Switch

,

40.5kv AC Disconnect Switch

,

126kv AC Disconnect Switch


Product Description

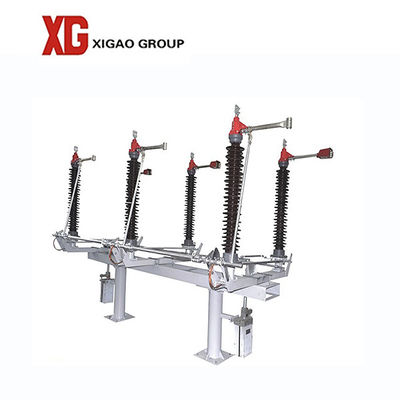

1. GW4 type 12kv, 24kv, 40.5kv, 66kv, 72.5kv, 126kv outdoor AC high voltage disconnected switch



GW4-12, 24, 40.5, 66, 72.5, 126 series outdoor AC high voltage disconnected switch (hereinafter referred to as disconnected switch). It is suitable for power systems with a frequency of 50HZ and a rated voltage of 12,24,40.5,66,72.5,126. The anti-fouling disconnected switch can meet the requirements of users in heavily polluted areas, it can effectively solve the problem of pollution during the operation of the disconnected switch. The disconnected switch and the attached grounding switch are each equipped with an independent operating mechanism. In order to ensure the correct operation sequence between the disconnected switch and the grounding switch, this product is equipped with a mechanism interlocking device. The 35-110KV grounding switch is divided into Type I and II, 15 / 220KV is type II. The dynamic thermal stability of the type II grounding switch is the same as that of the disconnected switch.

2. product  specifications:

1. According to the presence or absence of a grounding switch, it is divided into: ungrounded, single grounded, double grounded
2. Divided according to the area of use: ordinary type, anti-fouling type. Features of this series of disconnectors:
(1) The electrical connection terminal is transitioned through a soft connection, and the conductive contact is reliable;
(2) The ground knife adopts an external closing arrangement to ensure the reliable insulation distance of the ground knife to the other live end during the closing process;
(3) GW4-220 is equipped with a folding ground knife to reduce the space outside the ground knife.


3. Product environmental conditions

1. Altitude: 1000-3000 meters
2. The ambient temperature is not higher than + 40 ° C, and the minimum temperature is not lower than -35 ° C (alpine area is not lower than -40 ° C).
3 The wind speed does not exceed 34m / s.
4. The seismic intensity does not exceed 8 degrees.
5. The thickness of ice coating should not exceed 10mm.
6. Pollution-resistant products are suitable for heavily polluted areas.
7,  Not suitable for places with flammable substances, explosion danger, chemical corrosion and severe vibration.



4. Main technology parameter of Outdoor disconnected switch with earthing switch:



Item Unit GW4-126 GW4-252
Rated voltage KV 126 252
Rated current A 1250,2000 2000.2500
Rated frequency Hz 50 50
Rated short-time withstand current and duration KA/S 31.5/3,40/3 40/3,50/3
Rated peak withstand current(peak) KA 80,100 100,125

Rated short-time power

frequency withstand voltage(rms)

To earth KV 185(+70) 395(+145)
Between breaks KV 230(+70) 460(+145)
Rated lighting impulse withstand voltage To earth KV

550



1050
Between breaks KV 550(+100) 1050(+200)
Rated busbar transferring current A 1600 2000




5.  Factory


12kv 24kv 40.5kv 66kv 72.5kv 126kv 220kv AC Disconnect Switch 0

6.  Delivery


12kv 24kv 40.5kv 66kv 72.5kv 126kv 220kv AC Disconnect Switch 1


7.  FAQ


1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
