LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO
Model Number: LZZBJ9-35
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET/month
Detail Information
Rated Voltage: 33kv 35kv BIL: 38/95/185 KV
Usage: Current Protection Phase: Single
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Ambient Temperature: -5℃ To + 40℃ Altitude: 2000m
High Light:

815 mm Epoxy Resin Current Transformer

,

XG CT Epoxy Resin Current Transformer

,

2000m Epoxy Resin Current Transformer


Product Description

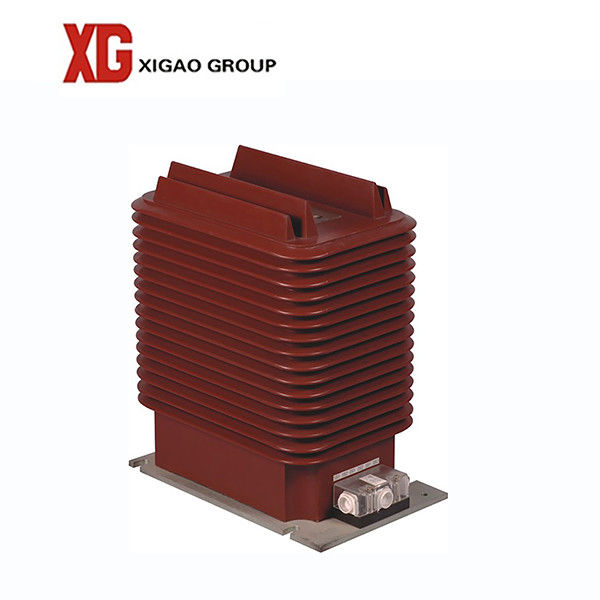

1.  LZZBJ9-35 35KV Fully Enclosed Indoor Epoxy Casting Resin CT Current Transformer


The current transformer of types LZZBJ9-35(D) are casting resins and fully enclosed.It is used for metering electric energy and current,relay protection in the electric system up to rated frequency 50Hz or 60Hz and rated voltage 35kV.The transformer can be executed according to the standards IEC 185 and GB1208-2006.



2. Type designation

3. Technical data

1. Rated insulation level: 38/95/185 kV;

2. Surface creepage distance: 815 mm;

3. The current transformer are in accodance with:GB1208-2006 transformer>standards;

4. Power factor:cosΦ=0.8(hysteresis);

5. Ambient temperature:-5℃ to + 40℃;

6. Altitude:Not over 2000m;

7. The other technical data see following table;



Rated primary

current

Accuracy class

Accuracy class and rated output(VA)

cosΦ=0.8

Short time thermal

current(kA)

Rated dynamic current(kA)
    0.2 0.5 5P15 5P20
20-100









0.2/0.2

0.2/0.5

0.5/0.5

0.2/5P

0.5/5P

10 15 - 15 200|1n 500|1n
150-200   10 15 - 15 31.5/1 80
300-500   10 15 - 15 31.5/2 80
600-1250   15 30 - 20 31.5/4 80
1500-2000   20 40 - 30 40/4 125
2500   20 40 - 20 40/4 125
20-100   10 15 15 15 200|1n 500|1n
150-200   10 15 15 15 31.5/1 80
300-500   10 15 15 15 31.5/2 80
600-1250   15 20 15 20 31.5/4 80
1500-2000   20 30 20 30 40/4 125
2500   20 20 20 20 40/4 125



4. Outline Dimensions of dry type current transformer



LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer 0



LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer 1

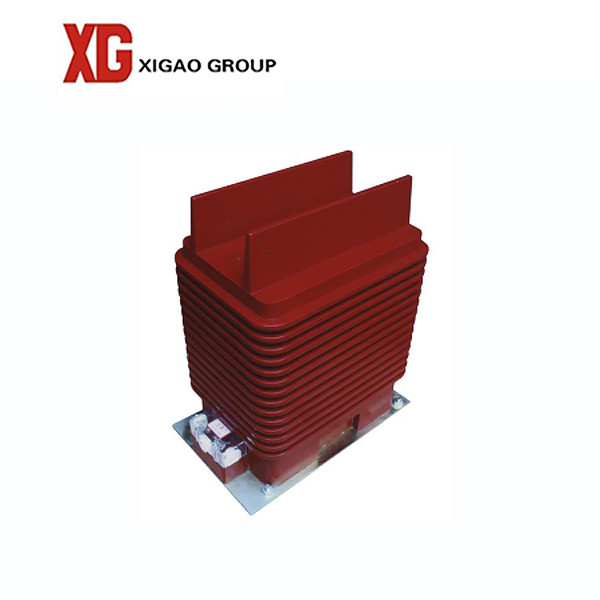

5. Photo and drawing of Current Transformer



LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer 2

6. Factory strength



LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer 3



7. Delivery diversification



LZZBJ9-35 Fully Enclosed Indoor Epoxy Resin Current Transformer 4
