| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO |
| Model Number: | LCZ35 |
| Minimum Order Quantity: | 2-3 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/P, T/T, D/A, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 2000 SET |
| Ratd Voltage: | 6KV 10kv 11KV | Phase: | Single |
|---|---|---|---|
| Accuracy Class: | 0.5, 0.2S, 10P, 5P20 | Ambient Temperature: | -45℃ - +40℃ |
| Material: | Cast Resin | Standard: | IEC/GB |
| Installation Location: | Substations | Rated Insulation Level: | 12/42/75kV |
| High Light: | LCZ-35 CT Current Transformer,LCZ35 CT Current Transformer,Epoxy Dry CT Current Transformer |
||

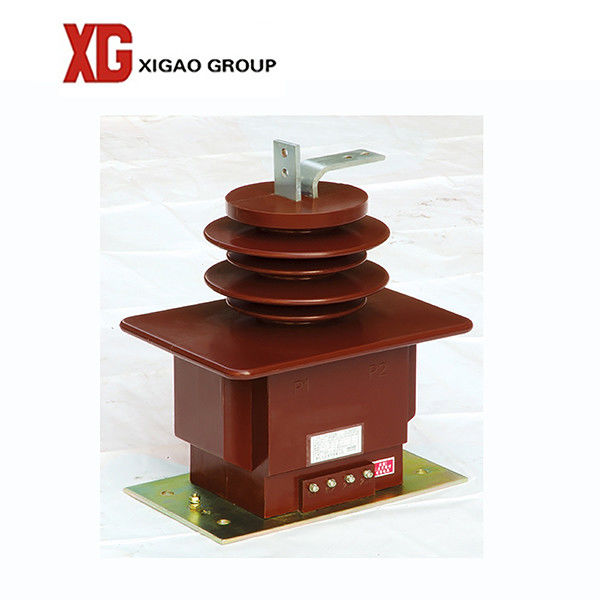

1. LCZ-35 33kV High Voltage Indoor Epoxy Dry Type CT Current Transformer
LCZ35 indoor current transformer is casting resin insulated CT, used for metering and protective relaying purposes for installation in indoor uopto 11kV rated frequency 50/60Hz.
1.Rated insulation level:12/24/72.5kV
2.Frequency: 50/60Hz.
3:Rated primary current:5-3150A
4: Accuracy class:0.5/5P
2. Specification
|
Type
|
Rated transformation ratio(A)
|
Accuracy Classes combination
|
Accuracy class and rated output COSØ=0.8 |
1s thermal current(kA)
|
Rated dynamic current(kA)
|
|||
| 0.2S |
0.2
|
05
|
10P15 | |||||
| LCZ35 |
5/5
|
0.2S/10P15 0.2/10P15 0.5/10P15 |
10 | 10 | 10 | 15 |
0.5
|
1.25
|
|
10/5
|
1
|
2.5
|
||||||
|
15/5
|
1.5
|
3.75
|
||||||
|
20/5
|
2
|
5
|
||||||
|
30/5
|
3
|
7.5
|
||||||
|
40/5
|
4
|
10
|
||||||
|
50/5
|
5
|
12.5
|
||||||
|
75/5
|
8
|
20
|
||||||
|
100/5
|
10
|
25
|
||||||
|
150/5
|
16
|
40
|
||||||
|
200/5
|
20
|
50
|
||||||
|
300/5
|
20
|
50
|
||||||
|
400/5
|
20
|
50
|
||||||
|
500/5
|
15
|
20
|
25
|
63
|
||||
|
600/5
|
25
|
63
|
||||||
|
800/5
|
32
|
80
|
||||||
|
1000/5
|
15
|
25 |
32
|
80
|
||||
Note: any special requirements can be negotiate with us
3. Photo
4. Factory
5. FAQ
1. Send the technical data, better for all useful information; we will make a good recommendation.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
