LB6 110KV 126kv Oil Immersed Single Phase Current Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: LB6-110
Minimum Order Quantity: 1-3 SET
Packaging Details: WOODNE CASE
Delivery Time: 7-15 DAYD
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000SET
Detail Information
Rated Voltage: 110kv Phase: Three
Usage: Current And Voltage Protection Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER Rated Frequency: 50HZ/60Hz
Application: Outdoor Type: Oil Type
High Light:

LB6 Single Phase Current Transformer

,

110KV Single Phase Current Transformer

,

126kv Single Phase Current Transformer


Product Description

1. LB6 Type 110KV 126kv Single phase Oil Immersed CT Current Tranformer



LB6-110 Current transformer is oil-immersed ,Outdoor type . It can be used for the electric current measurement

energy measurement and replay protection in the electric power system with a voltage of rated voltage 110kV

and for requency of 50/60Hz



The products are in accordance with the requirements of the standard :GB1208”Current Transformer’ and IEC60044-1’Current Transformer ‘



It is divided into conventional type and cast aluminum type according to the materialof oil tank . The customers can choose as their requirement

Ambient temperature :Max.temperature :+40℃;

Min.temperature :-25℃(- 45℃)

Daily are average temperature : no more than : 30℃

Altitude : no more than 2000m (unless otherwise specified)

Max.wind velocity : no more than 34m/s



2. Data



Rated voltage

110KV

Rated frequency

50/60Hz

Rated insulation level

126/230/550KV

Creepage distance

3155mm

Flashover distance

1150mm

Rated short-time  thermal curent (kA)

5.3~45kA/3s

Rated dynamic stability current (kA)

13~115

Rated primary current (A)

50~3200A

Rated secondary current (A)

1 or 5

Accuracy class

0.2,0.2S,0.5,0.5S,5P,10P   any combinations

Rated burden (VA)

15~60VA

Instrument security factor(FS)

5 or 10     5 or 10

Accuracy limit factor

10,15,20,30

Mounting  hole dimension (mm)

4 X 18

Mounting  dimension (mm)

475 X 475

Oil weight /Total weight (kg)

120/450

Outline Dimensions (mm)

(695±15) X570X (2150±15)



3.  Drawings

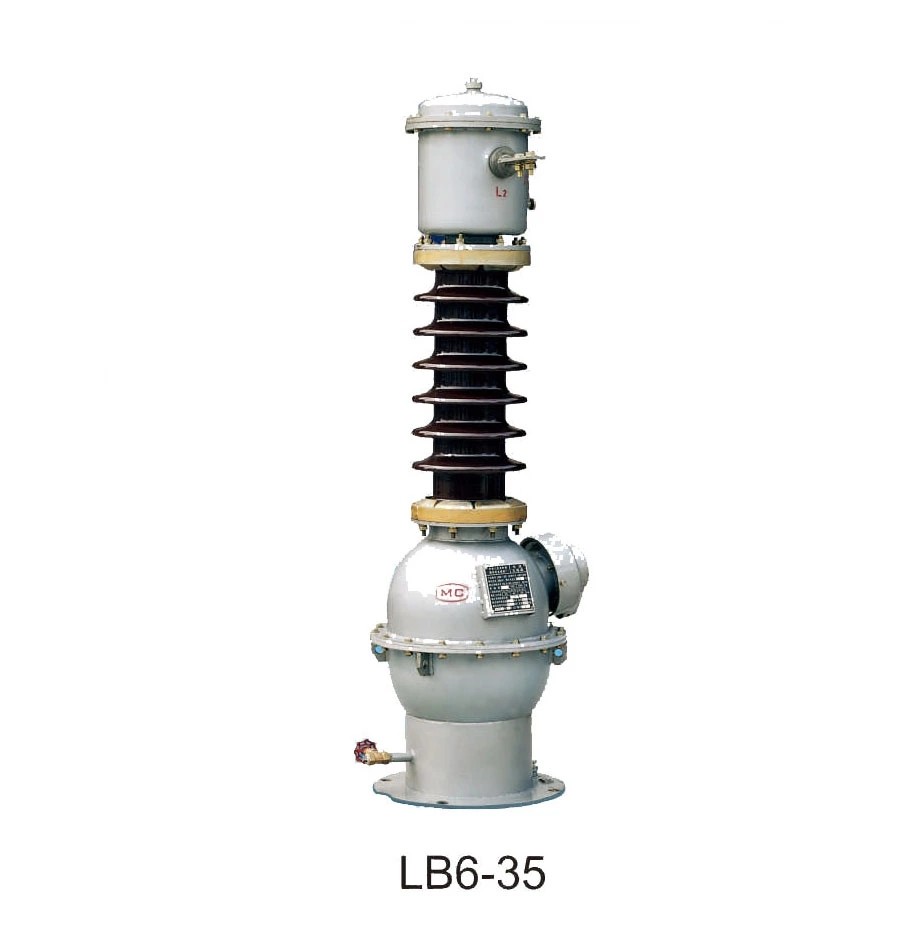

LB6 110KV 126kv Oil Immersed Single Phase Current Transformer 0
