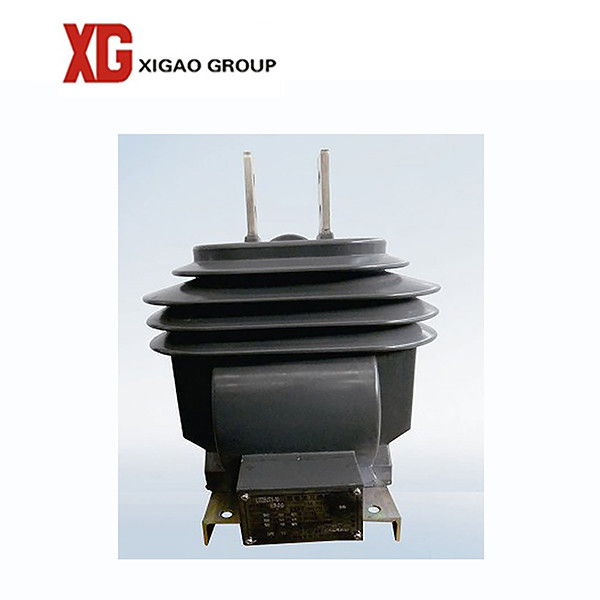

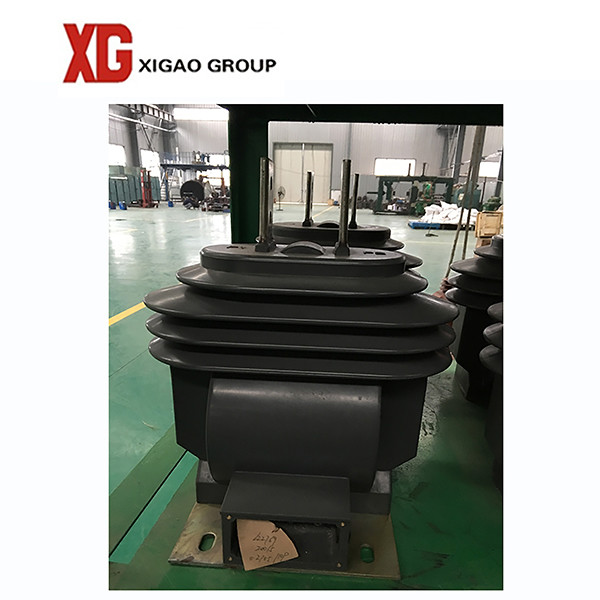

LZZW Type 35KV Indoor Cast Resin CT Current Transformer

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: LZZW...
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Rated Frequency: 50HZ/60Hz Voltage Class: 10kv
Rated Secondary Current: 5A/1A Application: High Voltage
Rated Insulation Level: 12/42/75kv Ambient Temperature: -45℃ To +40℃
High Light:

Cast Resin CT Current Transformer

,

35KV CT Current Transformer

,

Indoor CT Current Transformer


Product Description

LZZW type 10kv 11kv 12kv 33kv 35kv indoors cast resin ct/current transformer





2. Application of cast resin ct/current transformer

General Definitions
General definitions have been given according to international IEC 60044.

Instrument Transformer
A transformer intended to supply measuring instruments meters, protection relays and other similar apparatus.

Current Transformers
An instrument transformer in which the secondary current in normal conditions of use if substantially proportional to the primary current and differs in phase from it by angle which is approximately zero for an appropriated direction of the connections. It isolates the instrument and the protection circuit from the primary side and protect the devices against overliad according to the overcurrent characteristics of the transformer. Current transformer can have several secondary windings with cores of identical of different characteristics completely isolated from each other.

Measuring Current Transformer
A current transformer intended to supply indicating instruments, integrating meters and similar apparatus.

Protective Current Transformer
A current transformer intended to supply protective relays.

Primary Winding
The winding through which flows the current to be transformed.

Secondary Winding
The winding which supplies the current circuits of measuring instruments, meters, relays or similar devices.

3. Service


4. FAQ

(1). Payment option: T/T, L/C, western union and money order all are acceptable

(2). Shipment choice: By air, by sea or by express (like DHL,FEDEX ….)

(3). After service: Two years warranty in quality
