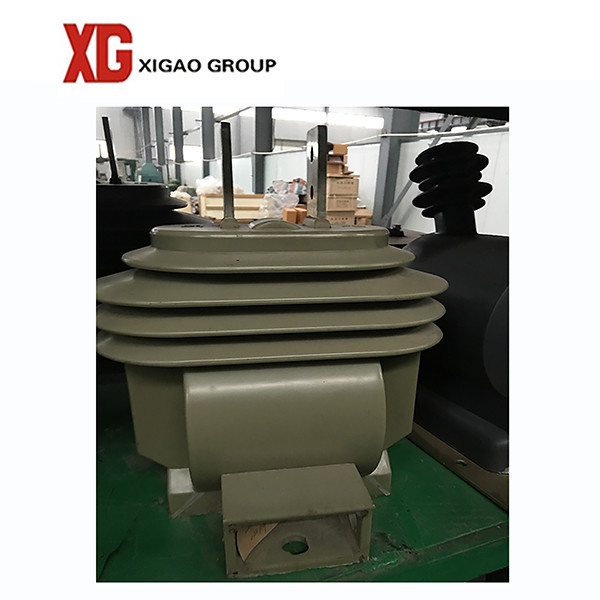

11KV 15KV 35KV Pole Mounted Current Transformer Fully Enclosed Outdoor Dry

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: LZZBJ10
Minimum Order Quantity: 1 SET
Price: USD100-300
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Type: Indoor Model Number: LZZB(J)10
Usage: Current Phase: Single
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Rated Frequency: 50HZ/60Hz Voltage Class: 10kv
High Light:

35KV dry Pole Mounted Current Transformer

,

15KV dry Pole Mounted Current Transformer

,

11KV Pole Mounted Current Transformer


Product Description

Briefly parametersr:
1. Post type, cast resin insulated
2. Rated Voltage :11kv, 15kv or 35kv
3. Standard IEC60044-1

4. Insulation level 36/70/170kv; 40.5/80/185kv; Frequency: 50/60Hz,

5. I th 25kv 1 sec.

6. Rated current ratio: as required

7. Core: you can choose cores quantity. we will produce the products

8. Accuracy class : 0.2S 0.2 , 0.5, 10P10, 10P15

9. Primary current: 5-2500A, Secondary current: 5A or 1A

model rated voltage Rated current Accuracy class
LZZBJ10

11KV 15KV 35KV

5-2500/5A 10P/10 0.5 0.2 0.2S


Product Installation Dimensions:

11KV 15KV 35KV  Fully enclosed outdoor dry epoxy resin  pole mounted current transformer CT



Suitable Operating Condition:

1.Altiude is no more than 1000m.

2.The maximum change of surrouding temperature is no more than -30~+40°C.

3.Universal product is only used in the area with less than 85% relative humidity.

4.Installation field had no serious effect transformer insulated, steam, chemical

deposition, dust foul and other explosive and corrosive medium, and the field without

serious shake and bump.

Certificate:

11KV 15KV 35KV Pole Mounted Current Transformer Fully Enclosed Outdoor Dry 1

Service:

11KV 15KV 35KV Pole Mounted Current Transformer Fully Enclosed Outdoor Dry 2

Factory:

11KV 15KV 35KV Pole Mounted Current Transformer Fully Enclosed Outdoor Dry 3

FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
