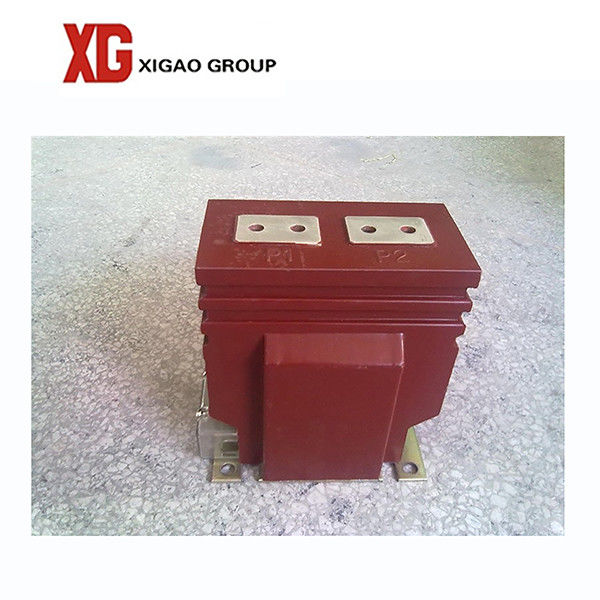

LZZBJ 10kv Epoxy Resin CT Current Transformer high voltage

Basic Information
Place of Origin: XAIN
Brand Name: XG
Certification: ISO,CCC
Model Number: LZZBJ
Minimum Order Quantity: 1 SET
Price: USD100-300
Packaging Details: WOODENC ASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Rated Secondary Current: 5A/1A Application: High Voltage
Rated Insulation Level: 12/42/75kv Ambient Temperature: -45℃ To +40℃
Material: Cast Resin Or Steel Installation Location: Power Plants, Substations And Power Systems Etc
High Light:

10kv outdoor CT Current Transformer

,

LZZBJ CT Current Transformer

,

10kv high voltage current transformer


Product Description

Main technical parameter

  1. Rated voltage: 11kV
  2. Rated secondary current: 5A or 1A
  3. Rated insulation level: 12/28/75kV
  4. Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
  5. Other technical parameter pls see as follow:
Rated current ratio (A) Accuracy classes combination Rated output
(VA)
FS ALF Rated short-time thermal current (kA/S) Rated dynamic current ( kA)
Measuring Protective
0.2(S) 0.5 10P
10-200/5 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.5/10P
10
15
15 15 5
(10)
10
15
20
100I1n 250I1n
300/5 31.5 80
400/5 31.5 80
500/5 40 100
600/5 50 125
800/5 20 63 125
1000/5 80 160
1200~1500/5 80 160
1500~2000/5 100 160
2000~2500/5 100 160

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Outline drawing
