Dry Type Indoor High Voltage 12/42/75kv CT Current Transformer For Switchgear

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: LZZBJ9
Minimum Order Quantity: 1 SET
Price: USD100-300
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Application: High Voltage Rated Insulation Level: 12/42/75kv
Ambient Temperature: -45℃ To +40℃ Material: Cast Resin Or Steel
Installation Location: Power Plants, Substations And Power Systems Etc Warranty: 12 Months
Accuracy Class: 0.5, 0.2S, 10P, 5P Package: Exporting Standard Package
Life Span: More Than 15 YEARS
High Light:

Dry 75kv CT Current Transformer

,

Dry 42kv CT Current Transformer

,

75kv protection current transformer


Product Description

Product display

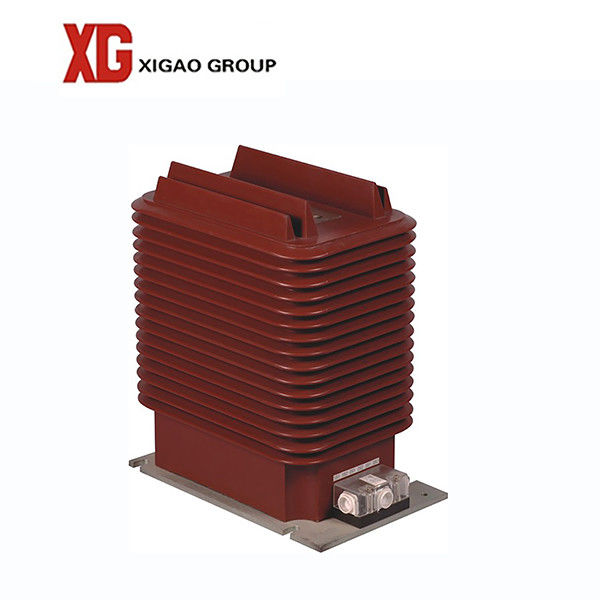

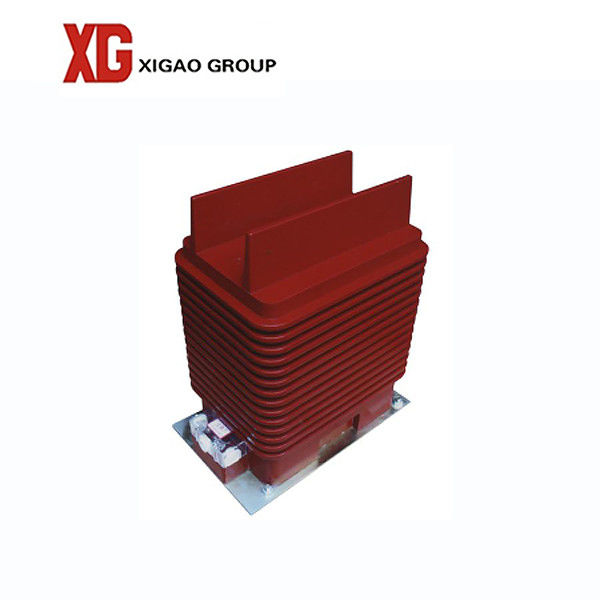

Dry type Indoor High Voltage CT current transformer for Switchgear

Summary

The current transformer is a fully enclosed pillar structure, and the external insulation adopts outdoor special epoxy resin. It has the characteristics of arc resistance, ultraviolet resistance, aging resistance, long life, large creepage distance, small partial discharge, and strong overvoltage resistance. The body composed of the primary winding and the secondary winding and its iron core is enclosed in a pouring body of epoxy resin mixture. The primary P1 and P2 ends are led out from the top of the product, and the secondary S1 and S2 ends are sealed in the outlet box from the bottom of the product. Lead out. Pollution level: Grade IV;



LZZBJ9 series indoor type current transformer, is used for 12/24/36kV, 50/60Hz power system.
When used with the measuring instruments in the secondary circuit to detect the operation of the power system and transmit the production and consumption of electric energy.
When used with protection relay, it is applied to protection of over voltage, over-current, overload and single-phase grounding for power system and equipment.

Technical Parameters
1. Rated insulation level: 40.5/95/185 kV;
2. Rated secondary current: 5A, 1A
3. See the table for rated primary current, accuracy level combination, rated output and dynamic thermal stability current
4. The partial discharge level conforms to the GB1208 "Current Transformer" standard.

Dry type Indoor High Voltage CT current transformer for Switchgear
Dry type Indoor High Voltage CT current transformer for Switchgear

Type description
Dry type Indoor High Voltage CT current transformer for Switchgear

Technical data

Dry type Indoor High Voltage CT current transformer for Switchgear



Drawing





Dry type Indoor High Voltage CT current transformer for Switchgear

Certificate:

Dry Type Indoor High Voltage 12/42/75kv CT Current Transformer For Switchgear 6

Service:

Dry Type Indoor High Voltage 12/42/75kv CT Current Transformer For Switchgear 7

Factory:

Dry Type Indoor High Voltage 12/42/75kv CT Current Transformer For Switchgear 8

FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
