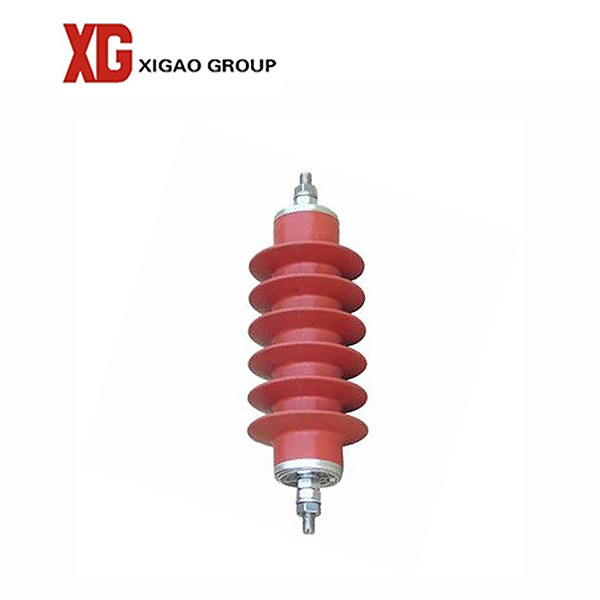

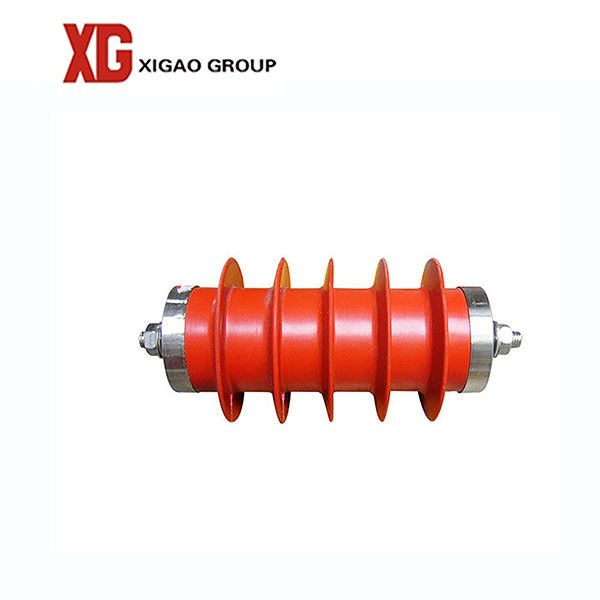

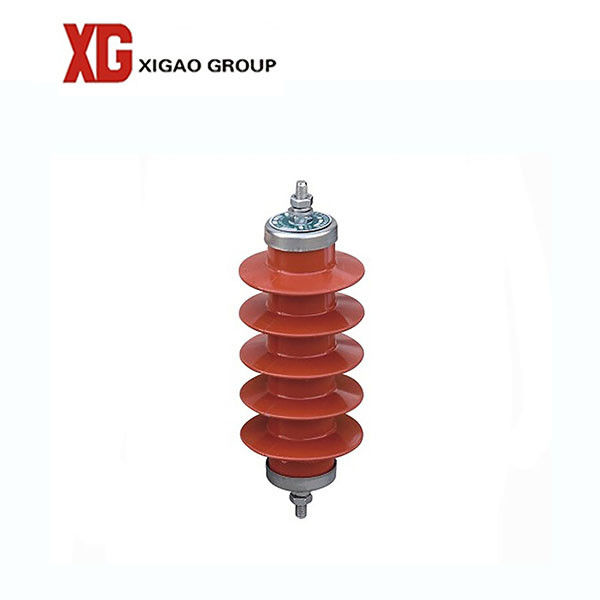

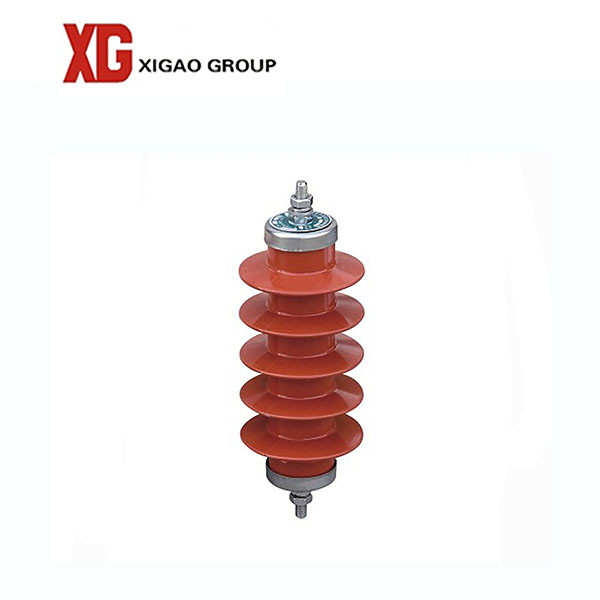

3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester Large Creepage

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: YH10W
Minimum Order Quantity: 5 SETS
Price: USD5-50
Packaging Details: WOODEN CASEBU
Delivery Time: 7-15 DYAS
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 10000 SETS
Detail Information
Phase: Single Material: Silicone Rubber & Zinc Oxide
Rated Frequency: 50HZ/60Hz Voltage Class: 10kv
Ambient Temperature: -45℃ To +40℃ Usage: Over-Voltage Protection
Warranty: 12 Months OEM: Yes
High Light:

3kV Lightning Surge Arrester

,

10kV Lightning Surge Arrester

,

10kV zinc oxide surge arrester


Product Description

Large Creepage 3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester
6-10kV Medium-voltage surge arresters
The Zinc Oxide lighting arrester are used for protection of electrical equipment from all kind of over-voltages caused by lightening or switching operations. Yueqing Aiso surge arresters the most advanced over-voltage protector in the world, made of metal-oxide (MO) resistors without spark gaps directly molded in silicone housing, in gray color or red color, and designed and tested according to IEC 60099-4 and IEC 62848-1.Product characteristic1.Small size,Light weight,resistance to impact,no collision damage during transportation,flexible installation,suitable for use in the switch cabin.2.Special structure,the overall compression molding,no air gap,good sealing performance,moisture-proof and explosion-proof3.Large creepage distance,good hydrophobicity ,strong stain resistance,stable performance and reduce operation maintenance.4.Unique formula of zinc oxide resistors, small leakage current,slow aging,long service life.5.With DC reference voltage,rectangular flow capacity and high current and large current withstand capacity are higher than standard requirement.
Applications
Surge arresters for medium-voltage systemsProtection of equipment from power electronics to high energy capacitors, arc furnace transformers and otherSurge arresters for special applications in low-voltage systemsSurge arresters for AC traction systemsSurge arresters for DC traction systemsVoltage limiting devices for traction systems
Usual Service Condition
Power frequency:48Hz ~60HzAmbient temperature:-40°C~+40°CMaximum wind speed: not exceed 35m/sAltitude: not exceed 2000mEarthquake intensity: not exceed 8 degreesIce thickness: not exceed 10 meters.Long-term applying voltage does not exceed the maximum coutinuous operating voltage.

Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Product photo:

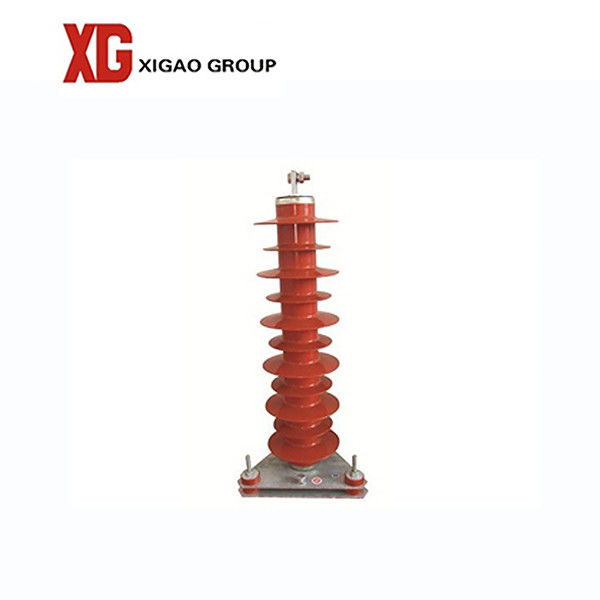

3kV-10kV Polymer Zinc Oxide Lightning Surge Arrester Large Creepage 0



FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
