LW8-40.5KV 35KV 36kv 40.5kv Outdoor SF6 Gas Circuit Breaker

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO
Model Number: LW8
Minimum Order Quantity: 1
Packaging Details: wooden box
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000SET/month
Detail Information
Rated Voltage: 24kV, 36kV, 40.5kV Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A
Certificate: ISO CCC Standard: GB, IEC Standard
Life Span: More Than 15 YEARS Working Temperature: -45℃ To +40℃
Model: LW8 Frequency: 50/60Hz
Medium: SF6
High Light:

40.5kv SF6 Gas Circuit Breaker

,

36kv SF6 Gas Circuit Breaker

,

Outdoor SF6 Gas Circuit Breaker


Product Description

1.  LW8-40.5KV 35KV 36kv 40.5kv outdoor SF6 gas circuit breakers 630A 1250A 2000A



LW8A-40.5 circuit breaker which is outdoor type finds its universal range of applications for the electrical system with elevation not greater than 2000m,ambient temperature not lower than -30℃,dirtiness grade not high than IV, alternating current 50Hz and the maximum voltage 126kV. It is used for cutting the rated current, malfunction current or switching the circuitry, to control and protect the electrical system ,and it can also be used for connecting with the circuit breaker.



2.  Parameter List



No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated current A 2000
3 Rated frequency HZ 50
5 Rated short circuit breaking current KA 31.5
6 Rated short-circuit current (peak) KA 50
7 Rated short-circuit withstand current KA 20
8 Rated short circuit closing current(peak) KA 50
9 Electrical life of rated short circuit breaking current times 30
10 Rated short circuit duration s 4
11 Rated line charging close current A 31.5
12 Rated operation sequence   O-0.3s-CO-180s-CO
13 Split time ms ≤60
14 Closing time ms ≤100
15 Velocity of rigid composite m/s 3.2
16 Velocity of rigidity m/s 3.4
17 Mechanical life times 6000
18 Quality of each circuit breaker kg 1400



3.  application



      Ambient temperature:-40℃~+40℃

  • Altitude:≤2000m
  • Wind pressure:≤700Pa
  • Daily temperature differenc:25℃
  • Icing thickness:≤10mm
  • Air pollution level:Ⅲ

4.  Photo and drawing

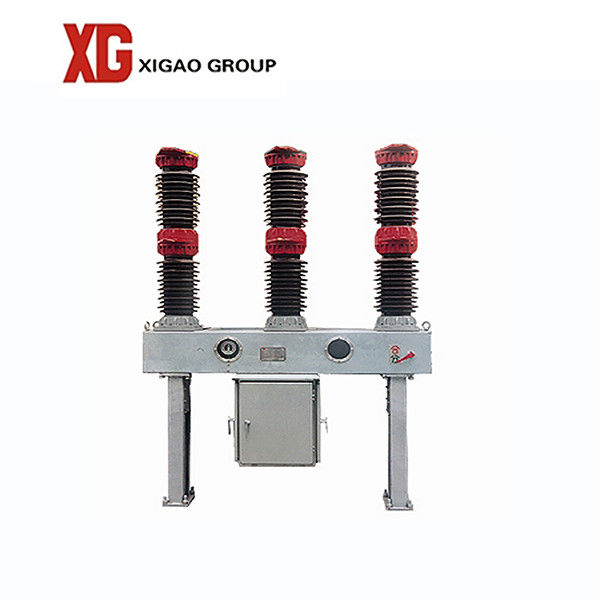

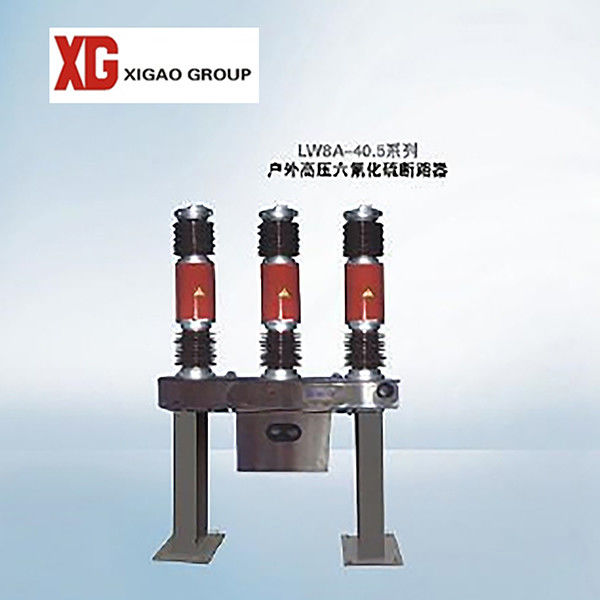

LW8-40.5KV 35KV 36kv 40.5kv Outdoor SF6 Gas Circuit Breaker 0



5. Factory strength

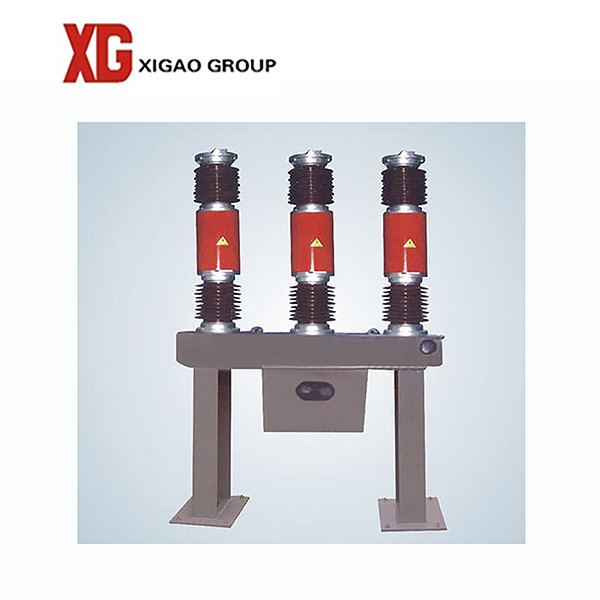

LW8-40.5KV 35KV 36kv 40.5kv Outdoor SF6 Gas Circuit Breaker 1

6. Delivery diversification

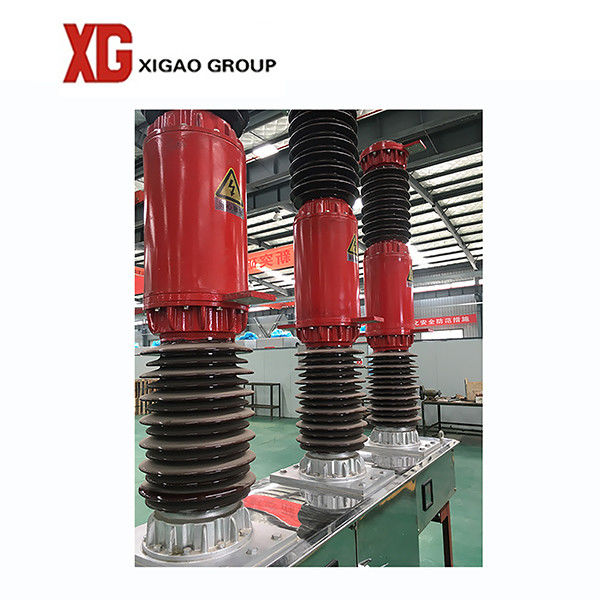

LW8-40.5KV 35KV 36kv 40.5kv Outdoor SF6 Gas Circuit Breaker 2
