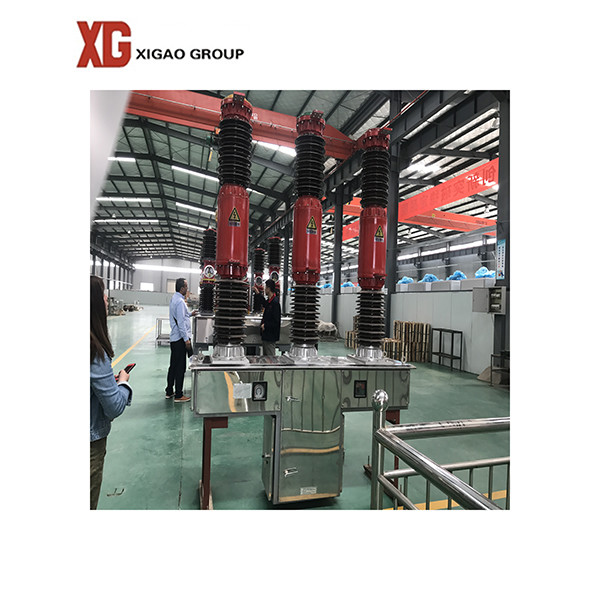

High Voltage Outdoor 40.5kv SF6 Circuit Breaker For Power Plant

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: LW8A
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Name: SF6 Circuit Breaker Voltage: 40.5kv
Function: Control & Protection Application: Power Plant
System Current: 400A-3150A Operation: Electric Or Manual
Life Span: 15 YEARS Warranty: 24 Months
High Light:

Outdoor 40.5kv SF6 Circuit Breaker

,

HV SF6 Circuit Breaker

,

Power Plant SF6 Circuit Breaker


Product Description

High Voltage Outdoor 40.5kv SF6 Circuit Breaker For Power Plant



1. LW8A-40.5 Type SF6 Circuit Breaker



40.5kv SF6 Circuit Breaker finds its universal range of application for the three-phases electrical system with alternating current 50HZ and the rated voltage 40.5kV.It is used for contolling and protecting the electrical system and measuring the current transformers.



2. SF6 Circuit Breaker Applicable place:



1. Power grid equipment.

2. Industrial and mining enterprise equipment.



3. SF6 Circuit Breaker Advantages



1. It conforms to GB1984 standard,GB/T28001-2011 idt OHSAS18001:2007,GB/T 24001-2004 idt ISO14001:200;

2. Excellent fracture performance, short arcing time and long service life;

3. The mechanical life is more than 3000 times;

4. Frequent operation, each set can be installed with 12 current transformers;



4.  Environmental Conditions



Ambient temperature: -30°C~+40°C
Relative humidity: ≤95%or≤90%

The daily average saturated vapor pressure: ≤2.2KPa;

The monthly average value: ≤1.8KPa.

Altitude: ≤3000m

Seismic intensity: ≤8

Air pollution level: Level Ⅲ

Wind pressure: ≤700pa

The installation shall be free from fire, explosion, severe vibration, chemical corrosion and serious pollution.



5. Technical Parameter



Name Data
Rated voltage 40.5
Rated current(A) 1600/2000
Rated Insulate level Power frequency withstand voltage(kV)1min 95
Thunder impulse withstand vltage (kV) 185
Rated short-circuit breaking current(kA) 25/31.5
Rated outof-phase breaking current (kA) 7.9/10
breaking current of earth fault in different phase(kA) 27.4/34.8
Rated breaking current of single capacitor bank(A) 400
Rated Operating sequence O-0.3S-CO-180S-CO
Rated SF6 gas pressure(Mpa) 0.5
Switch-off time(on rated voltage)(ms) 30≤t≤40
Switch-on time(on rated voltage)(ms) 60≤t≤80
Rated short-circuit making current(peak) (kA) 63/80
Rated short-circuit duration (s) 4
Rated short-circuit with stand current (kA) 25/31.5
Rated peak value withstand current(kA) 63/80
Mechanical life (time) 10000

Cumulative breaking times of rated short-circuit

breaking current 31.5 kA/40kA(time)

20
Cumulative breaking times of rated current(time) 2000
Annual leakAge rate of SF6(%) ≤0.5
Water content of SF6(VV)(PPm) ≤150
Outer insulating leakAge ratio distance(mm/kV) ≥25,≥31
Weight of the circuit breaker(KG) 1000
