High Reliability SF6 Circuit Breaker LW36 110kV

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: LW36
Minimum Order Quantity: 1 SET
Price: USD300-1000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DYAS
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Type: OUTDOOR Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, Frequency: 50/60Hz
Poles Number: 3 Standard: GB, IEC Standard
Function: Control And Protection Installation Location: Power Plants, Substations And Power Systems Etc
Warranty: 12 Months
High Light:

High Reliability SF6 Circuit Breaker

,

110kV SF6 Circuit Breaker

,

110kV sf6 gas circuit breaker


Product Description

High Reliability SF6 Circuit Breaker LW36 110kV

Description

SF6 circuit breaker LW36 is outdoor circuit breaker using sulfur hexafluoride gas as the arc extinguishing and insulating medium, and adopts the most advanced self-energy arc-extinguishing technology in the world. It has the characteristics of long electrical life, low operating power and high reliability.

Environmental Condition

Ambient temperature:-40℃~+40℃

Altitude:≤2000m

Wind pressure:≤700Pa

Daily temperature differenc:25℃

Icing thickness:≤10mm

Air pollution level:Ⅲ

Features

a) Reliable breaking performance

b) Reliable mechanical operating performance: high operational reliability, mechanical life up to more than 10000 time

c) Reliable insulation

d) Reliable sealing performance

e) Strict process of product components

Parameter:

Type
High Voltage, Outdoor
Pole number
3
Rated Voltage
72.5kV~252kV
Rated Cuttent
1250A~3150A
Rated short circuit breaking current
31.5KA/40kA
Rated short-time withstand current
31.5kA/40kA
Rated peak withstand current
100kA
Rated short time continual time
3s
Certificated:
ISO9001
Mechanical Life
10000
Application
Electric Power Transmission
OEM
accept
Package
Wooden case



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

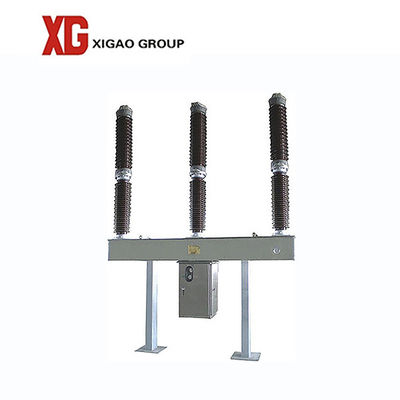

Product photo:

High Reliability SF6 Circuit Breaker LW36 110kV 0



FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
