GGD-0.4 400V Low Voltage Distribution Panel Cubicle Switchboard

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: GGD-0.4
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN BOX
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Type: Indoor, Metal Clad Rated Voltage: 0.4KV 0.416KV 6.6KV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A…. Frequency: 50/60Hz
Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66 Phase: 3 Phase
Material: S.S Steel Or Galvanized Sheet Application: Indoor
Standard: IEC/GB
High Light:

400V Low Voltage Distribution Panel

,

GGD-0.4 Low Voltage Distribution Panel

,

GGD-0.4 Cubicle Switchboard


Product Description

1. GGD-0.4 type indoor 400v low voltage distribution panel cubicle switchboard



GGD-0.4 type indoor 400v low voltage distribution panel cubicle switchboard is applicable to power consumers of power plants, substations, industrial and mining enterprises and is used for electric energy conversion, distribution and control of power, lighting and power distribution equipment in power distribution system with AC 50Hz, rated operating voltage of 380V and rated operating current of up to 3,150A.



2. Product parameter OF cubicle switchboard



No. Item(Unit) Data
1 Rated Operational Voltage(V) AC380
2 Rated Insulation Voltage(V) AC660
3 Rated Frequency(Hz) 50
4 Mai Bus Rated Current(A) 2500
5 Main Bus Rated Short-time Withstand Current(kA) 50
6 Rated Impulse Withstand Voltage(kV) 8
7 Standard GB7251.12
8 Protection Degree IP40



3. Product condition OF cubicle switchboard



Ambient air temperature : -5°C ~ +40°C;

Daily average temperature(Within 24h): ≤+35℃

Relative humidity: ≤50% at the maximum temperature of +40℃ and may be higher at lower temperature, for example, 90% at +20℃.

Altitude:≤2,000m;

Installation inclination:≤ 5°;

Installation places: Indoor; without fire, explosion risk, serious pollution, rain immersion, violent vibration,chemical corrosion and conductive dust.

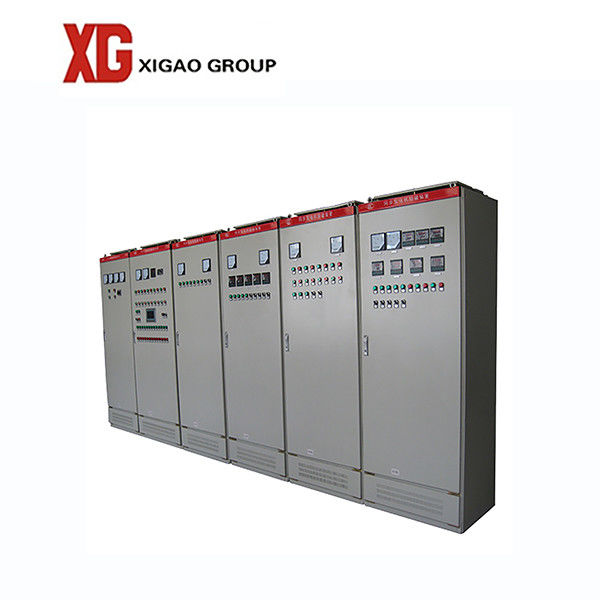

4.  Product drawing

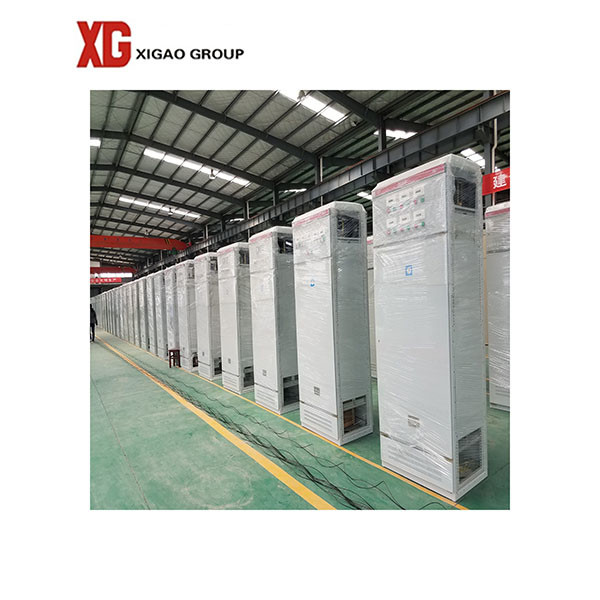

5. Factory strength



GGD-0.4 400V Low Voltage Distribution Panel Cubicle Switchboard 0



6. Delivery diversifition



GGD-0.4 400V Low Voltage Distribution Panel Cubicle Switchboard 1



7. FAQ



1. Our factory is 250000m2 for production and office.

2. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
