XGN15-12 Indoor 11kv 12kv 33kv SF6 Ring Main Unit RMU

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: HXGN15-12
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
Application: Indoor Standard: GB, IEC Standard
Function: On-off Warranty: 12 Months
OEM: Yes
High Light:

SF6 Ring Main Unit RMU

,

XGN15-12 Ring Main Unit RMU

,

12kv Ring Main Unit RMU


Product Description

1. XGN15-12 type 11kv 12kv 33kv SF6 ring main unit rmu



XGN15-12 type 11kv 12kv 33kv SF6 ring main unit rmu applied to the 3.6kV~12kV three phase AC 50/60Hz system to receive and distribution power energy, and suitable for continually operation and rebuilding the switchgear which install oil switch. The busbar is single busbar system and double busbar subsection system.

XGN15-12(G) is suitable for high altitude area which is developed on base of general switch. The switchgear conforms to GB3906 " 3~35kV AC Metal-enclosed Switchgear " and IEC62271-200 standard, and with function of five protections locking.

The main switch of panel is ZN28A-12 series vacuum circuit breaker, equip with CD10 series and CD17 electromagnetism, CT8, CT17/CT19 series spring operating mechanism.



2. Parameter data OF ring main unit rmu



No. Item Unit Data
1 Rated voltage KV 12
2 Rated current A 630,1250,1600,2000,2500,3150
3 Rated short-circuit current KA 20,25,31.5,40,50,63
4 Rated peak withstand current KA 50,63,80,100,125,160
5 Short-time withstand current(4s) KA 20,25,31.5,40,50,63
6 Insulation: Power frequency/Lightning KV 42/75
7 Protection class   IP4X
8 Optional circuit breaker   ZN12,ZN28,ZN63A(VS1),VD4 etc.
9 Operating mechanism   Spring mechanism,Permanent magnetic mechanism
10 Operational power supply V DC:110,220; AC:110,220
11 Overall dimension(Width*Depth*Height) mm 1100(1200,1400)x1200x2650
12 Weight KG 800



3. Service application OF ring main unit rmu



  • Suitable Altitude: 1000m ~ 4000m

  • Suitable Temperature: -40℃ ~ +45℃

  • Relative Humidity: Daily mean ≤95%, monthly mean ≤90%

  • Gradation of Earthquake Damage: ≤ Level 8



4. Photo and drawing

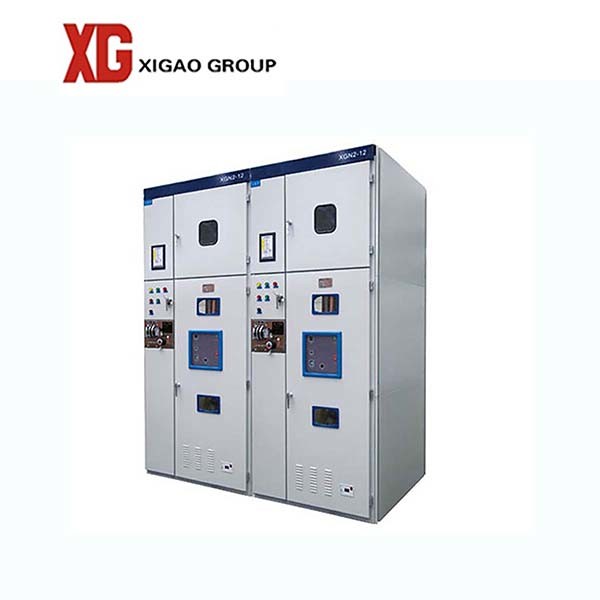

XGN15-12 Indoor 11kv 12kv 33kv SF6 Ring Main Unit RMU 0



5. Factory strength

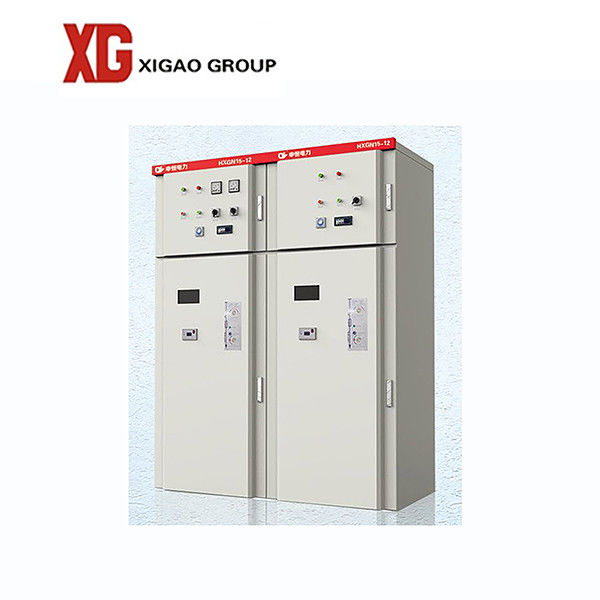

XGN15-12 Indoor 11kv 12kv 33kv SF6 Ring Main Unit RMU 1



6. Delivery



XGN15-12 Indoor 11kv 12kv 33kv SF6 Ring Main Unit RMU 2



7. FAQ



1. Technology ensure the quality satisfy international request.

2. Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
