JYN1-40.5 33kv 35kv 40.5kv Metal Enclosed Power Distribution Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: JYN...
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Frequency: 50/60Hz Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Rated Voltage: 17.5kV, 24kV, 36kV, 40.5kV Material: S.S Steel Or Galvanized Sheet
Application: Indoor Certificate: ISO14001 BS OHSAS18001
Standard: GB, IEC Standard Function: On-off
High Light:

JYN1-40.5 Power Distribution Switchgear

,

33kv Power Distribution Switchgear

,

40.5kv Power Distribution Switchgear


Product Description

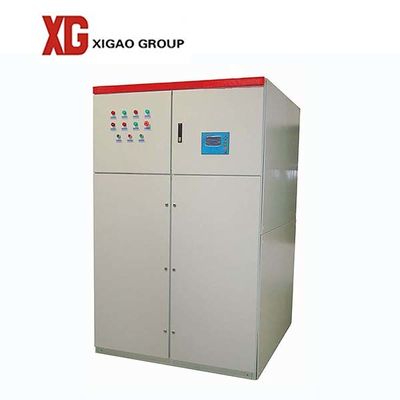

1. JYN1-40.5 Type indoor 33kv 35kv 40.5kv Metal-enclosed Compact Switchgear panel



JYN1-40.5 AC Metal Enclosed Withdrawable Switchgear is the indoors equipment with ac 50Hz, which is used for power plants and substations of 35 KV rated voltage, rated maximum current is 2000A, the highest voltage is less than 40.5 KV single busbar or single bus section of complete sets of power distribution device.



2. Parameter data of Metal-enclosed Compact Switchgear



Rated voltage 40.5kV
Rated current ≤1.6kA
Rate frequency 50Hz
rated short-circuit breaking current ≤31.5kA
Breaking times of rated short circuit breaking current 8
Rated short-circuit close current(Maximum) ≤80kA
rated dynamic current(Maximum) ≤80kA
4s thermal current ≤31.5kA
Rated operating sequence open-0.3S- close open-180S-close open
rated operating voltage of closing AC/DC 110V,220V
rated operating voltage of Opening AC/DC 110V,220V



Rated voltage

kV

lightning impulse withstand voltage(Maximum)kV 1minpower frequency withstand voltage(virtual value) kV
To ground, phase to phase and normal fracture

isolation

fracture

To ground, phase to phase and normal fracture

isolation

fracture

Auxiliary way back to earth
40.5 185 215 95 110 2



3. Product feature and application



Relative humidity: daily average value should not be more than 95%, while monthly average value should not be more than 90% (+25°C);
Seismic intensity should be not more than 8°;

Ambient temperature upper limit and lower limit are respectively +40°C and -40°C;

Altitude is not more than 1000m;
Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.
