KYN28 10kv 11kv 12kv 13.8kv Cubicle Type Gas Insulated Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: KYN...
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Model: KYN28, KYN61 Color: Grey Or Customized
Type: Indoor, Metal Clad Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A…. Frequency: 50/60Hz
Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66 Phase: 3 Phase
High Light:

KYN28 Gas Insulated Switchgear

,

11kv Gas Insulated Switchgear

,

13.8kv Gas Insulated Switchgear


Product Description

1. kyn28 12 type 10kv 11kv 12kv 13.8kv cubicle type gas insulated switchgear



KYN28A central metal-clad and metal-enclosed switchgear is produced independently based on the advanced manufacturing technique from home and abroad. It can be used to replace all sorts of old metal-enclosed switchgears.

The shell adopts the aluminum-zinc alloy coated steel sheet, processed by CNC machining tool, which ensure the high mechanical strength. The door is anti-corrosion and anti-impact coaedt. And the protection degree is IP4X

The main switch can be with the ZN63A (VSI) type of circuit breaker of this company, C3 series of fixed load switch; it is also with the interface communication.



2. Technical specification of cubicle type gas insulated switchgear



Serial No. Item Unit Technical parameters
1 Rated voltage KV 24
2 Rated frequency HZ 50/60
3 Rated insulation level 1 min withstand voltage (effective value) KV Phase to phase & phase to earth 60 Isolation fracture 79
Lighting impulse withstand voltage (peak value) 125 145
Auxiliary control circuit power frequency withstand voltage V 2000
4 Rated current A 630,1250,1600,2000,2500,3150
5 Specified short-circuit dropout current KA 20, 25, 31.5
6 Rated short-circuit making current (peak value) KA 50, 63, 80
7 Rated short time withstand current (4S) KA 20, 25, 31.5
8 Rated peak withstand current KA 50, 63, 80
9 Auxiliary control circuit rated voltage V AC or DC 110/220
10 Protection level​ V IP4X (the circuit breaker chamber door is open or isolation chamber is IP2X)
11 Outline dimension mm 1000*1910*24001
12 Weight Kg 840-1500



3. Photo and drawing

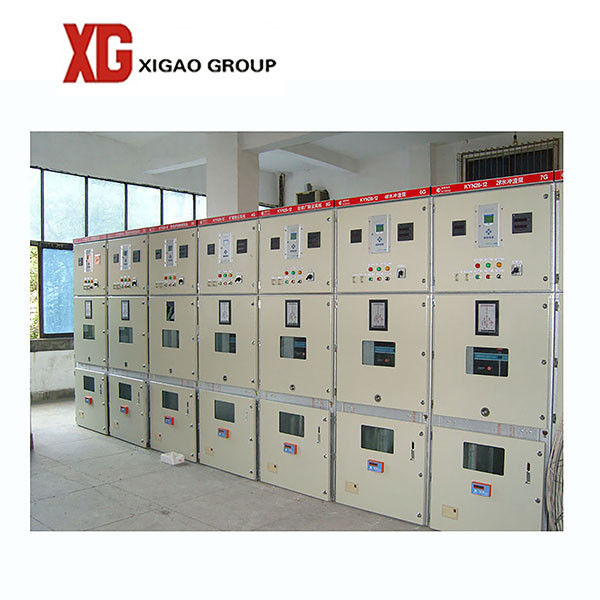

KYN28 10kv 11kv 12kv 13.8kv Cubicle Type Gas Insulated Switchgear 0



5. Certificate

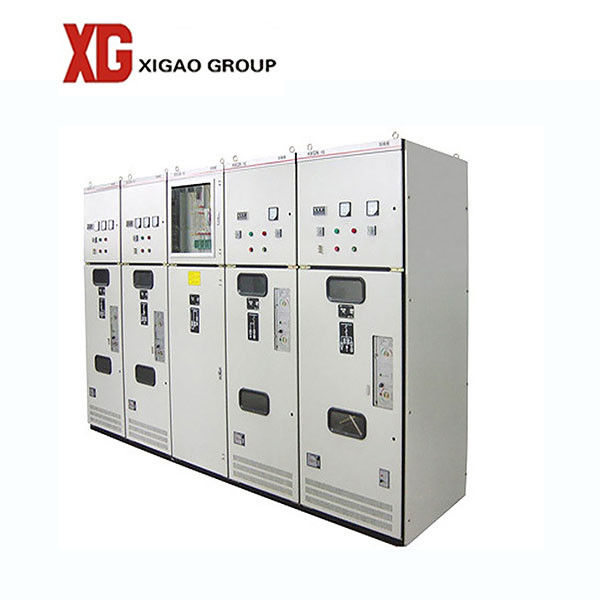

KYN28 10kv 11kv 12kv 13.8kv Cubicle Type Gas Insulated Switchgear 1



6. Delivery

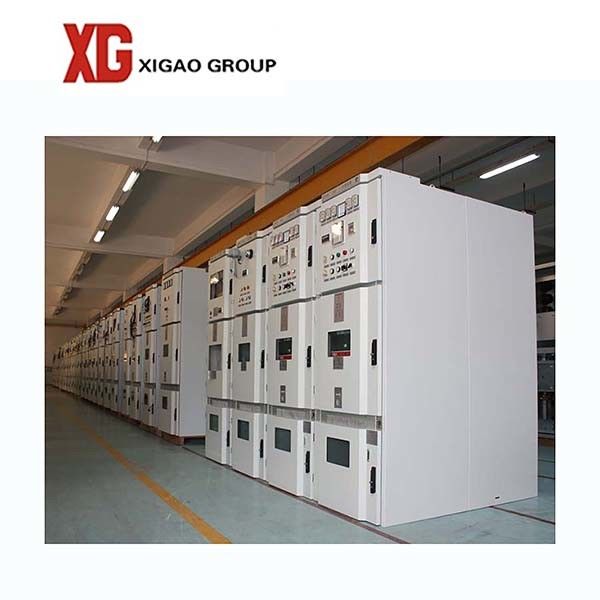

KYN28 10kv 11kv 12kv 13.8kv Cubicle Type Gas Insulated Switchgear 2
