KYN61-40.5 Indoor Metal Armored Power Distribution Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: KYN61
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN BOX
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Standard: GB, IEC Standard OEM: Yes
Warranty: 12 Months Package: Exporting Wooden Case Or Customized
MOQ: 1set Life Span: More Than 15 YEARS
Working Temperature: -45℃ To +40℃ Application: Indoor
High Light:

KYN61-40.5 Power Distribution Switchgear

,

33kv Power Distribution Switchgear

,

45kv Power Distribution Switchgear


Product Description

1. KYN61-40.5 type 33kv 35kv 36kv 40.5kv indoor Metal Armored Switchgear panel


KYN61-40.5 switchgear is complete indoor power distribution equipment suitable for 3-phase AC 50Hz and rated voltage of 40.5KV.It is used for power acceptance and distribution, circuit control, protection and detection etc in power plants, transformer substations or industrial and mining establishments.



2. Parameter of products



No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated Current A 630,1250,1600,2000,2500
3 Rated short-circuit current KA 20,25,31,5,40
4 Rated peak withstand current KA 50,63,80,100
5 Short-time withstand current KA 20,25,31.5,40
6 Insulation:Power frequency/Lighning KV 95/185
7 Protection class   IP4X
8 Optional circuit braekers   ZN85,VD4,HD4,LN2-40.5 ect.
9 Operating mechanism   Spring mechanism;Permanent magnetic.
10 Operational Power supply V DC:110,220;ac:110,220
11 Overall deimension(Width*Depth*Heigh) mm

1400(1200)X2800x2600

1680x2800(3100)X2800

12 Weight KG 1800
13 Protection degree   IP3X(compartment IP2X)



3. Product feature



Relative humidity:Daily average ≤95%,month average:90%

Earthquake intensity:≤8 degree;

Ambient temperature:-10℃∼+40℃

Altitude:≤1000M

Applicable occasions should be free from corrosive,inflammables and vapour.

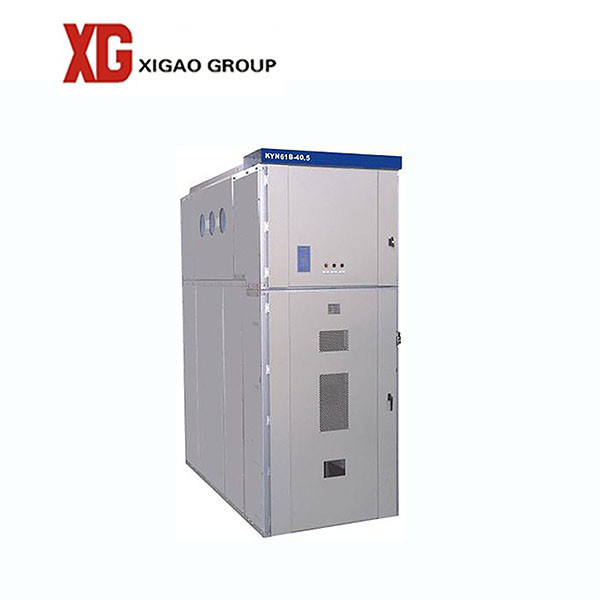

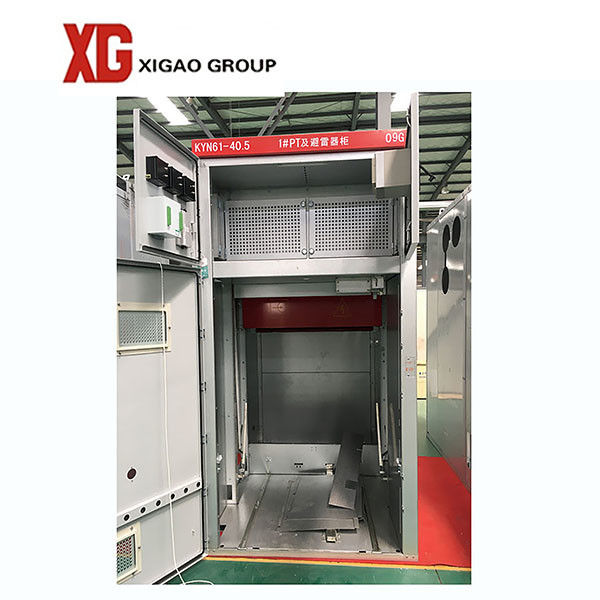

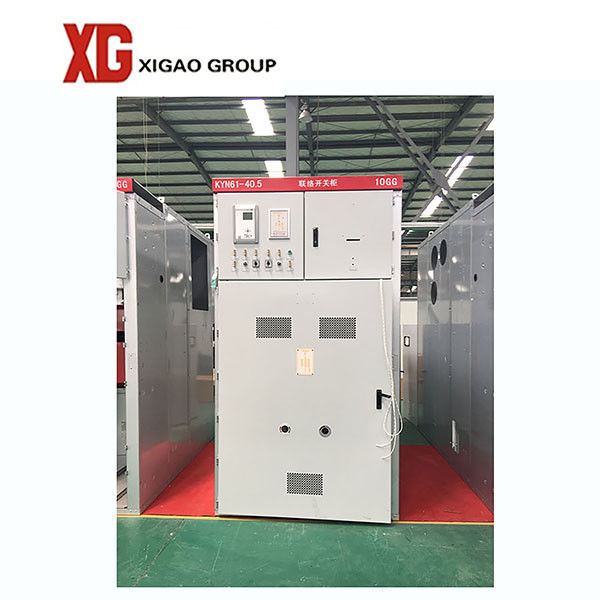

4. Photo and drawing






5. Fatory strength



KYN61-40.5 Indoor Metal Armored Power Distribution Switchgear 1





6. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
