| Usage: | Current And Voltage Protection | Phase: | Single |
|---|---|---|---|
| Coil Structure: | TOROIDAL | Coil Number: | AUTOTRANSFORMER |
| Rated Frequency: | 50HZ/60Hz | Voltage Class: | 10kv |
| Application: | High Voltage | Rated Insulation Level: | 12/42/75kv |
| High Light: | JLS CT PT Metering Unit,11kv CT PT Metering Unit,33kv CT PT Metering Unit |
||

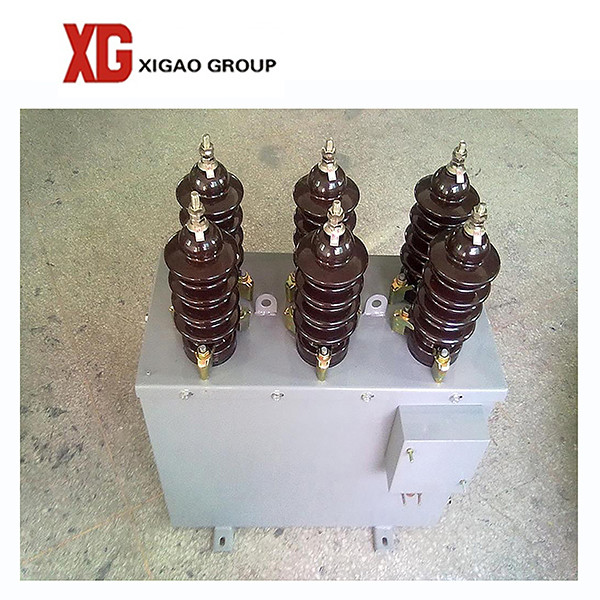

1. JLS Type 11kv 33kv Outdoor Oil-Immersed Combined CT PT Metering Unit
Technical Parameter – Voltage transformer
| Model | Rated voltage ratio | Accuracy class | Rated output | Ultimate output | Rated insulating voltage |
|
JLS- 6kV 12kV |
3000/100 |
0.2 0.5 |
15 30 |
300
|
3.6/25/40 |
| 6000/100 | 7.2/32/60 | ||||
| 10000/100 | 12/42/75 |
Technical Parameter – Current transformer
| Rated primary current | Rated secondary output(VA) | Rated short-time thermal current (KA) | Rated dynamic current (kA) | |
| 0.2 | 0.5 | |||
| 5-10 |
10 |
15 |
1.0 | 2.5 |
| 10-20 | 1.5 | 3.75 | ||
| 15-30 | 2.4 | 6.0 | ||
| 20-40 | 3 | 7.5 | ||
| 30-60 | 4.5 | 11 | ||
| 40-75 | 8.0 | 20 | ||
| 50-100 | 9.0 | 22.5 | ||
| 75-150 | 12 | 30 | ||
| 100-200 | 16 | 40 | ||
| 150-300 | 24 | 60 | ||
| 200-400 | 32 | 80 | ||
| 300-600 | 60 | 100 | ||
| 400-800 | 80 | 100 | ||
| 500-1000 | 80 | 100 | ||
