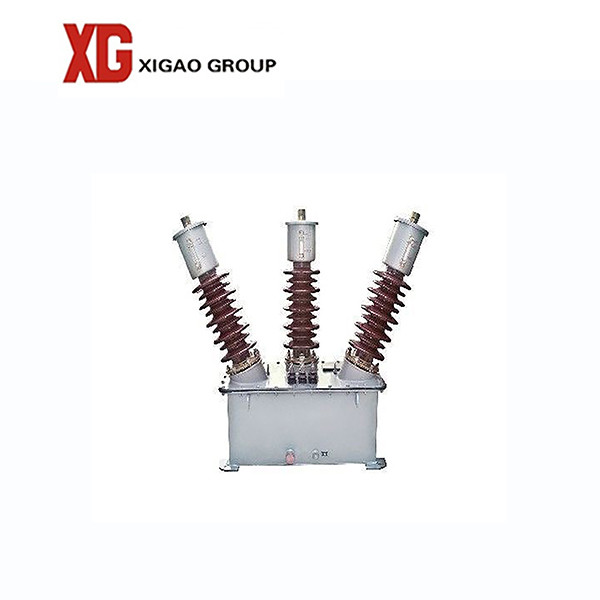

JLS-35 Oil Type Three Phase 35kv 40.5kv 33KV Metering Unit

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO, CCC
Model Number: JLS-35
Minimum Order Quantity: 1-3 SET
Packaging Details: WOODNE CASE
Delivery Time: 7-15 DAYD
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000SET
Detail Information
Rated Voltage: 33kv 35kv 40.5kv Phase: Three
Usage: Current And Voltage Protection Coil Structure: TOROIDAL
Coil Number: AUTOTRANSFORMER Rated Frequency: 50HZ/60Hz
Voltage Class: 10kv Type: Oil Type
High Light:

JLS-35 33KV Metering Unit

,

Oil Type 33KV Metering Unit

,

CCC 33KV Metering Unit


Product Description

1. JLS-35 Oil Type 33kv 35kv 40.5kv Power Combined Ct Pt Metering Unit



JLS-35  three-phase outdoor dry high-voltage power metering box (combined transformer) is application to 50 HZ (rated frequency), three-phase AC, 6kv, 10kv(rated voltage) electric net for power measuring. It is fixed on the high-voltage side of power supply transformer. There is one three-phase active watt-hour meter and one reactive watt-hour meter installed inside measuring box, which are used to directly measure active and reactive electric in high-voltage circuits.



2. Suitable Operating Condition

The maximum change of surrouding temperature is no more than -30~+40°C.
Altiude is no more than 1000m.

Universal product is only used in the area with less than 85% relative humidity.

Installation field had no serious effect transformer insulated, steam, chemical

deposition, dust foul and other explosive and corrosive medium, and the field without
serious shake and bump.



3.  Drawings







JLS-6,10,35 Outdoor Oil-immersed Metering Unit.png

JLS-6,10,35 Outdoor Oil-immersed Metering Unit.png



4. Factory



JLS-35 Oil Type Three Phase 35kv 40.5kv 33KV Metering Unit 2

5.   FAQ

1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Send the technical data, better for all useful information; we will make a good recommendation.

3. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
