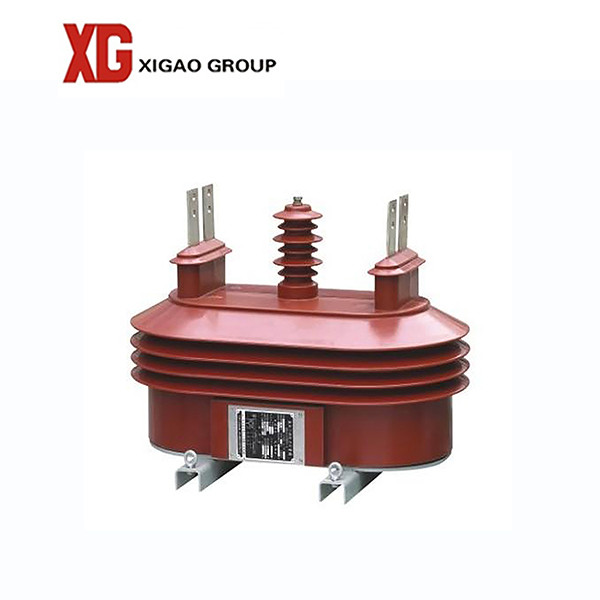

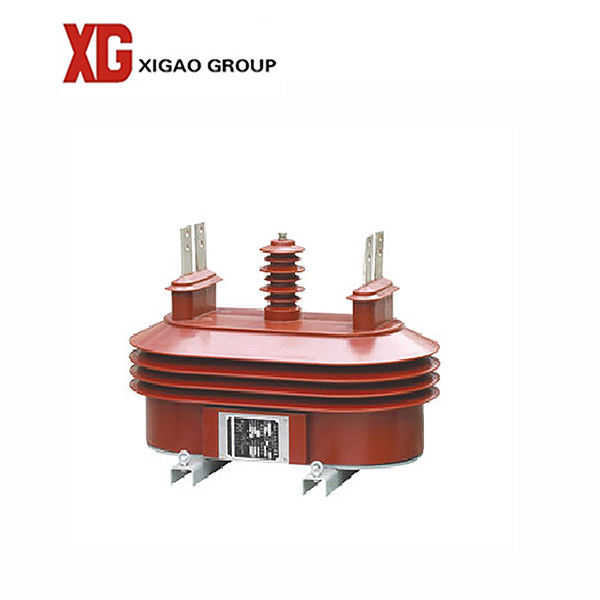

JLSZV 6kV 7.2kv 11kv 12kV Dry Combined CT PT Metering Unit

Basic Information

Place of Origin:	XIAN,CHINA
Brand Name:	XG
Certification:	ISO,CCC
Model Number:	JLSZV

Minimum Order Quantity:	1-3 SET
Packaging Details:	WOODNE CASE
Delivery Time:	7-15 DAYD
Payment Terms:	L/C, T/T, D/A, D/P, Western Union,
Supply Ability:	2000SET

Get Best Price Contact Now

Detail Information

Rated Voltage:	6kv 12kv	Phase:	Three
Usage:	Current And Voltage Protection	Coil Structure:	TOROIDAL
Coil Number:	AUTOTRANSFORMER	Rated Frequency:	50HZ/60Hz
Voltage Class:	11/3	Type:	Cast Resin Type
Highlight:	JLSZV CT PT Metering Unit , 6kV CT PT Metering Unit , 12kV CT PT Metering Unit

Product Description

1. JLSZV Type 6kV 7.2kv 11kv 12kV Dry Combined Ct Pt Metering Unit

1. Parameter

Technical Parameter – Voltage transformer

Model	Rated voltage ratio	Accuracy class	Rated output	Ultimate output	Rated insulating voltage
JLSZV- 6kV 12kV	3000/100	0.2 0.5	15 30	300	3.6/25/40
	6000/100				7.2/32/60
	10000/100				12/42/75

Technical Parameter – Current transformer

Rated primary current	Rated secondary output(VA)		Rated short-time thermal current (KA)	Rated dynamic current (kA)
Rated primary current	0.2	0.5	Rated short-time thermal current (KA)	Rated dynamic current (kA)
5-10	10	15	1.0	2.5
10-20			1.5	3.75
15-30			2.4	6.0
20-40			3	7.5
30-60			4.5	11
40-75			8.0	20
50-100			9.0	22.5
75-150			12	30
100-200			16	40
150-300			24	60
200-400			32	80
300-600			60	100
400-800			80	100
500-1000			80	100
