| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | SCB10 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 7-15 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 500 SETS |
| Primary Voltage: | 10kv-35kv | Usage: | Power |
|---|---|---|---|
| Phase: | Three | Coil Structure: | TOROIDAL |
| Rated Capacity: | 30kva-5000kva | Frequency: | 50Hz/60Hz |
| Rated Voltage: | 10kv | Vector Group: | Dyn11 / Yyn0 |
| Highlight: | 50KVA Dry Type Power Transformer,5000KVA Dry Type Power Transformer,35kv Dry Type Power Transformer |
||

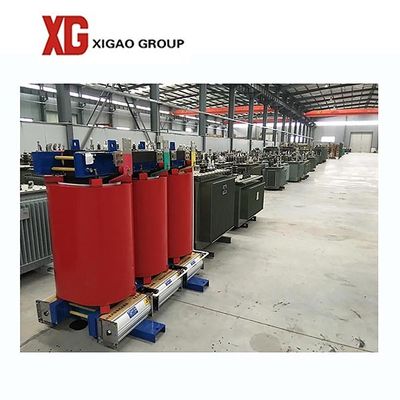

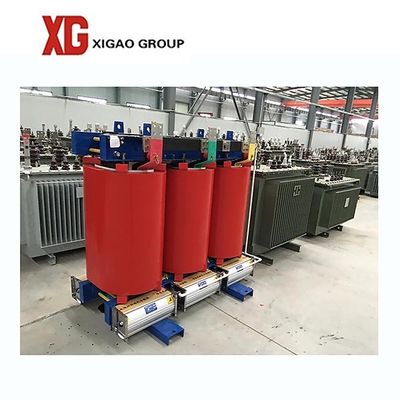

1. SCB10 11kv 50KVA-5000KVA 3 Phase Dry Type Power Transformer
Dry-Type Transformer can be used in high buildings,commerce centers,subways,airports,train stations,enterprises and power plants.They are especially suitable for installing and using in such places where strict fireproof requirements, including anti-combustible and anti-explosive,must be met.
2. Product parameter of power transformer
| Rated power (kVA) |
High Voltage (kV) |
H.V Tap range |
Low Voltage (kV) |
Connection Symbol |
Short-Circuit Impedance (%) |
No-load Loss (W) |
On-Load Loss (W) |
No-load Current (%) |
||||
| 9 Type | 10 Type | 11 Type | 9 Type | 10 Type | 11 Type | |||||||
| 30 | 6 6.3 10 10.5 |
±5% ±2×2.5% |
0.4 | Dyn11 Yyn0 |
4 | 130 | 110 | 100 | 600 | 600 | 600 | 2.1 |
| 50 | 170 | 150 | 130 | 870 | 870 | 870 | 2 | |||||
| 63 | 200 | 180 | 150 | 1040 | 1040 | 1040 | 1.9 | |||||
| 80 | 250 | 200 | 180 | 1250 | 1250 | 1250 | 1.8 | |||||
| 100 | 290 | 230 | 200 | 1500 | 1500 | 1500 | 1.6 | |||||
| 125 | 340 | 270 | 240 | 1800 | 1800 | 1800 | 1.5 | |||||
| 160 | 400 | 310 | 280 | 2200 | 2200 | 2200 | 1.4 | |||||
| 200 | 480 | 380 | 340 | 2600 | 2600 | 2600 | 1.2 | |||||
| 250 | 560 | 460 | 400 | 3050 | 3050 | 3050 | 1.2 | |||||
| 315 | 670 | 540 | 480 | 3650 | 3650 | 3650 | 1.1 | |||||
| 400 | 800 | 650 | 570 | 4300 | 4300 | 4300 | 1 | |||||
| 500 | 960 | 780 | 680 | 5150 | 5150 | 5150 | 1 | |||||
| 630 | 4.5 | 1200 | 920 | 810 | 6200 | 6200 | 6200 | 0.9 | ||||
| 800 | 1400 | 1120 | 980 | 7500 | 7500 | 7500 | 0.8 | |||||
| 1000 | 1700 | 1320 | 1150 | 10300 | 10300 | 10300 | 0.7 | |||||
| 1250 | 1950 | 1560 | 1360 | 12000 | 12000 | 12000 | 0.6 | |||||
| 1600 | 2400 | 1880 | 1640 | 14500 | 14500 | 14500 | 0.6 | |||||
| 2000 | 5 | 2830 | 2270 | 1940 | 17140 | 17140 | 17140 | 0.6 | ||||
| 2500 | 3350 | 2690 | 2300 | 20260 | 20260 | 20260 | 0.5 | |||||
3. Product advantage of power transformer
(1)Low loss, low noise,no oil.
(2)Small size, light weight, high efficiency.
(3)The oil-tank type is various and good-looking.
(4)stable opable operation which cutting down large number of loss from energy GRID and minising operation charge,improving the industrial economic benefit.
4. Product type of power transformer
5. Factory show
6. Delivery
7. FAQ
1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
