YH5W 10KV 15KV 20KV 30KV 66KV Metal Oxide Surge Arrester

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: YH5WS
Minimum Order Quantity: 3 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 SET
Detail Information
Phase: Single Material: Polymer/oxid-zinc + Silicon Rubber
Rated Frequency: 50HZ/60Hz Voltage Class: 10kv
Insulation Material: Rubber Ambient Temperature: -45℃ To +40℃
Installation Location: 10KV 15KV 20KV 30KV 66KV Standard: IEC60099-4
High Light:

30KV Metallic Zinc Oxide Arrester

,

66KV Metal Oxide Surge Arrester

,

YH5W Metal Oxide Surge Arrester


Product Description

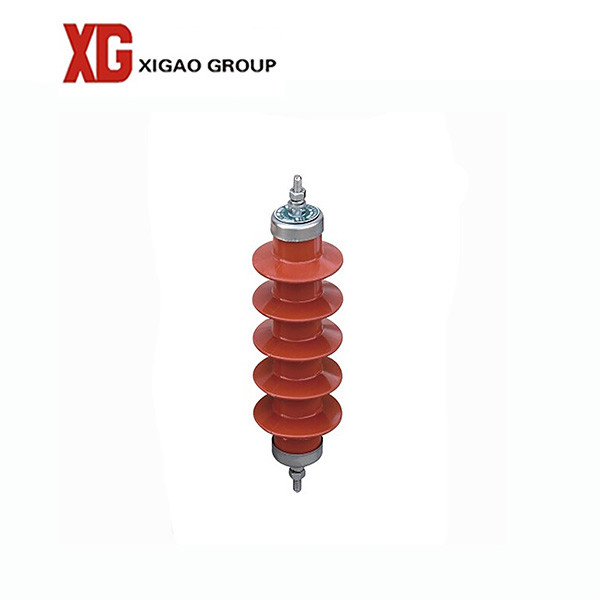

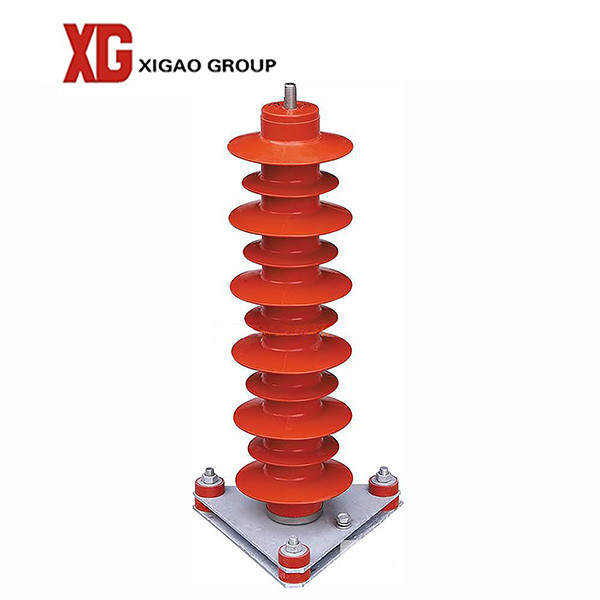

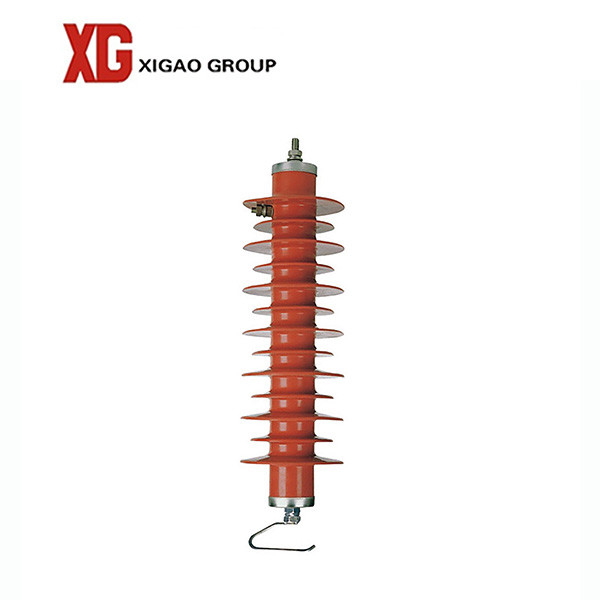

1. YH5W Type Lightning Arrester Metallic Zinc-Oxide Arrester Zinc Oxide Surge Arrestor



Metal oxide arresters are the most advanced protection devices for current over-voltage. They are widely used in power generation, power transmission and distribution systems to protect the insulation of electrical equipment from overvoltage.



The organic jacket metal oxide arrester is a scientific research achievement combining the advantages of organic insulating material and traditional porcelain sleeve metal oxide arrester technology. It not only has the advantages of porcelain sleeve metal oxide arrester, but also has good electrical insulation performance and dielectric. High strength, anti-leakage, anti-corrosion, heat resistance, cold resistance, aging resistance, explosion-proof, water-repellent, good sealing performance.



2. Conditions of Use



A. Applicable to indoor and outdoor;

B. Ambient temperature -40 ℃ ~ + 40 ℃;

C. Altitude does not exceed l000m;

D. Power frequency is not less than 48Hz, no more than 62 Hz;

E. The working frequency voltage applied to the arrestor should not exceed the continuous operating voltage of the arrester (no gap type).

F. Earthquake intensity is 8 degrees and following areas;

G. The maximum wind speed does not exceed 35m / s.



3. Product type:



Y—indicating porcelain sleeve metal oxide arrester
YH(HY)—represents an organic jacket metal oxide arrester
Structural features:

W—indicating no gap

C—representing series gap


Use place:

S—indicating power distribution type

Z—representing power station type

R—representing shunt compensation capacitor
D—represents the motor T—represents the electrified railway

X—represents the line type
Additional features:

W—indicating antifouling type

G—representing high prototyping

TH—indicating wet tropics
DL—Indicating cable type lightning arrester (Advantage: The product adopts a fully sealed structure, which reduces the distance between phases and has a large creepage distance.)
Anti-fouling level:

3- indicates Class III antifouling



4. Main technical parameters



The power distribution type is used to protect the power distribution equipment such as switchgear, variable voltage, box type change, cable outlet head, and oil switch on the column from atmospheric and operational overvoltage.



Model

Nominal

system

voltage

Rated

voltage

Continuous

operation

voltage

DC 1mA

reference

voltage

Lightning

impulse

current

residual

Steep wave

impulse

current

residual

switching

impulse-current

residual

voltage

creepage

distance

Height
kV (Valid value) KV (peak) φ mm H mm
Y5WS-5/15 3 5 4 7.5 15 17.3 12.8 85 253
YH5WS-5/15 80 184
YH5WS-5/15DL 80 184
Y5WS-10/30 6 10 8 15 30 34.6 25.6 85 253
YH5WS-10/30 80 184
YH5WS-10/30DL 80 184
Y5WS-12/35.8 10 12 9.6 18 35.8 41.2 30.6 85 305
YH5WS-12/35.8 85 257
YH5WS-12/35.8DL 85 257
Y5WS-15/45.6 10 15 12 23 45.6 52.5 39 85 305
YH5WS-15/45.6 85 257
YH5WS-15/45.6DL 85 257
Y5WS-17/50 10 17 13.6 25 50 57.5 42.5 85 305
YH5WS-17/50 85 257
YH5WS-17/50DL 85 257
