JCQ 10kv 11kv 33kv 35kv Zinc Oxide Surge Arrester

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: JCQ
Minimum Order Quantity: 3 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability: 10000 SET
Detail Information
Material: STEEL Feature: Antifouling
Ambient Temperature: -45℃ To +40℃ Standard: GB, IEC Standard,
Rated Voltage: 10KV 11KV 33KV Usage: With Surge Arrester
Application: Indoor And Outdoor MOQ: 3 Pc
High Light:

JCQ Zinc Oxide Surge Arrester

,

10kv Zinc Oxide Surge Arrester

,

35kv Zinc Oxide Surge Arrester


Product Description

1. Arrester Discharge Counter Surge Arrester Monitor JCQ,JSM



A optional spare parts of the lightning arrester.



Make much more convinient to know the work condition of the lightning arrester



A great assistant for quantitative analysis of the performance of lightning arrester.





2. Technical Datas for arresters discounter



Typical

model

Product's

description

Voltage grade

of system

Nominal

discharge

current

(kV)

Action current

Range

(kA)



Additional

resideual

voltage under

nominalcurrent

(kA)

2ms Square

wave discharge

Capacity

(A)

4/10High Current

Withstand

(kA)

JS-8 Common counter 3-66KV 5 50-5000 1 400 65
JCQ Current typeOn-line monitor 3-220KV 10 50-5000 1 600 100

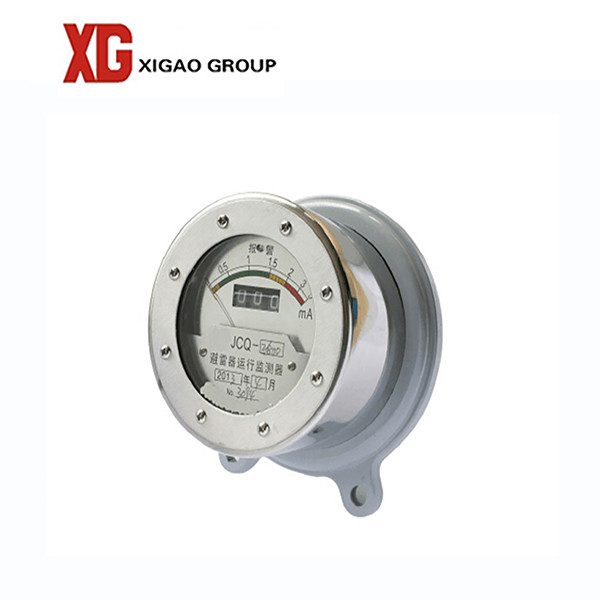

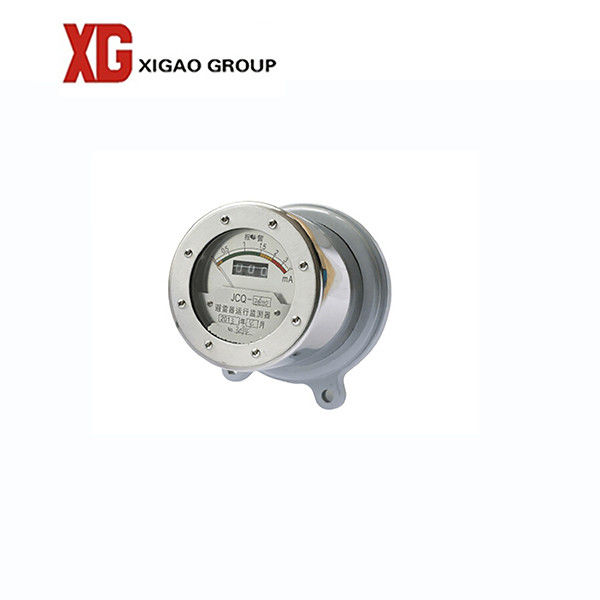

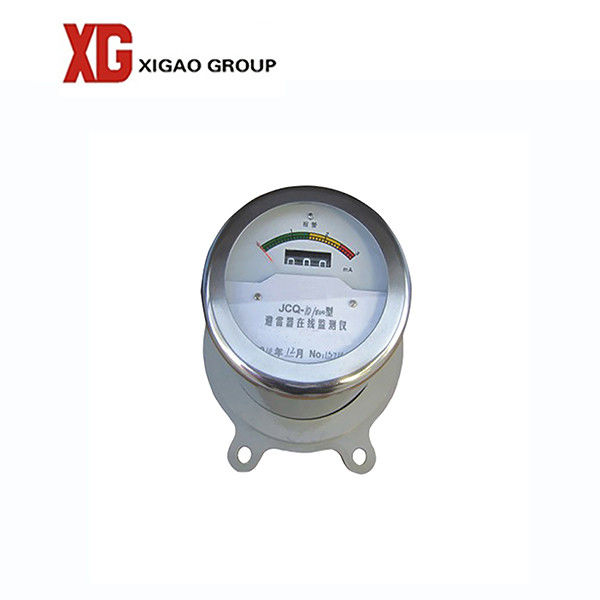

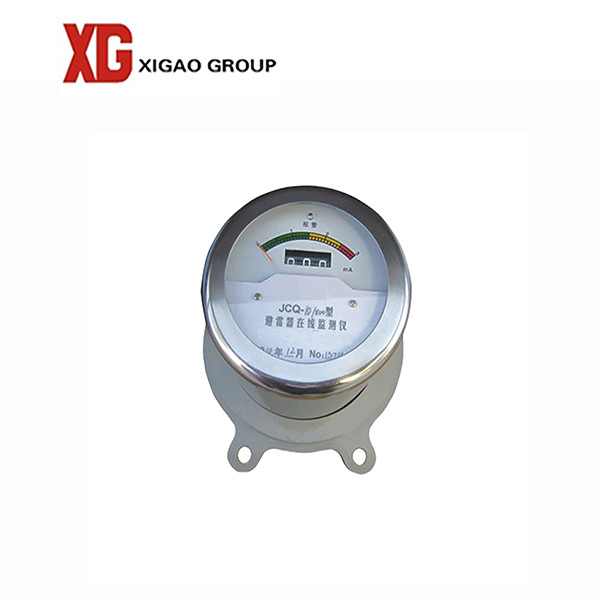

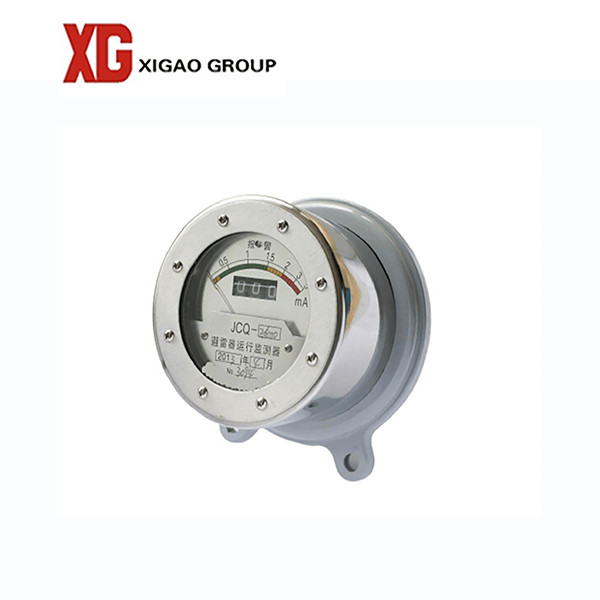

3. photo





JCQ 10kv 11kv 33kv 35kv Zinc Oxide Surge Arrester 0



4. Factory



JCQ 10kv 11kv 33kv 35kv Zinc Oxide Surge Arrester 1





5.  FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
