LW36 66KV 145kv Live Tank Outdoor Gas SF6 Circuit Breaker

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: LW36
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Type: Indoor Rated Voltage: 66 Kv - 145kv
Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A Frequency: 50/60Hz
Poles Number: 3 Medium: SF6
Material: Galvanized Sheet And Accessories Standard: IEC/GB
High Light:

LW36 SF6 Circuit Breaker

,

66K SF6 Circuit Breaker

,

145kv SF6 Circuit Breaker


Product Description

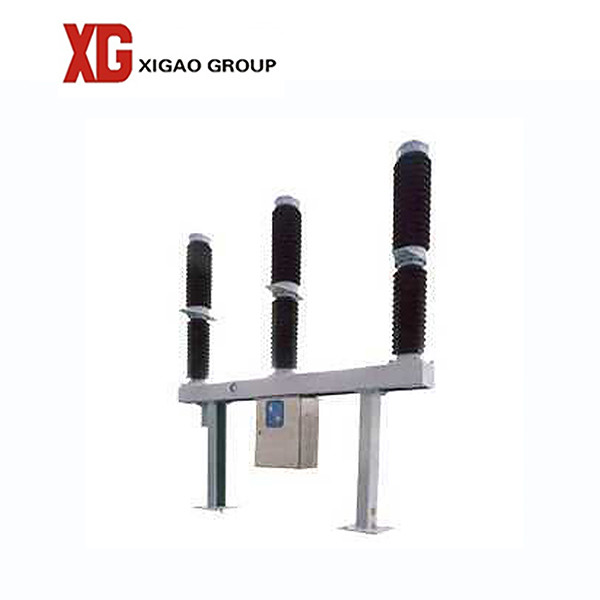

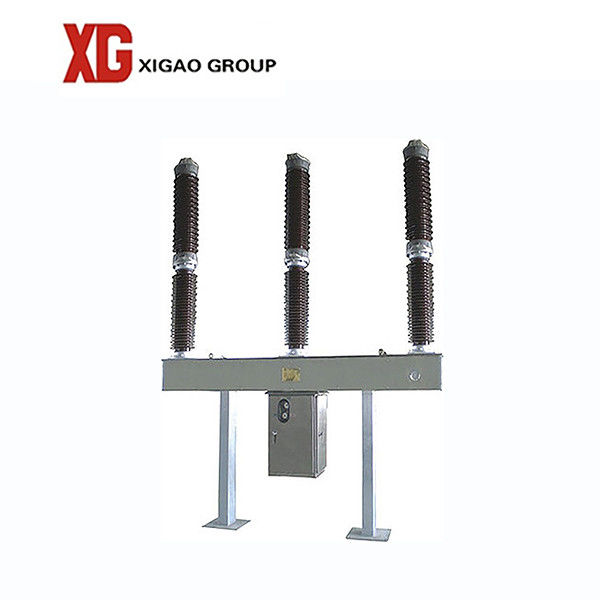

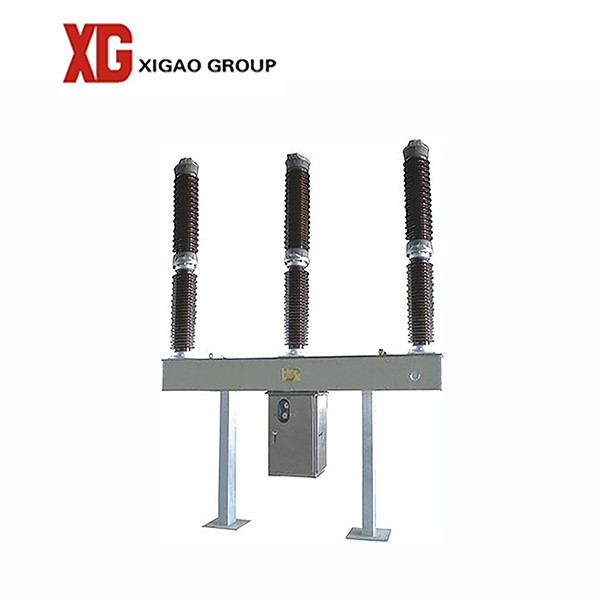

1. LW36 66 Kv - 145kv Live Tank Type Outdoor Gas Sf6 Circuit Breaker



Circuit breakers meet the requirements specified in EN 62271-1, EN 62271-100, EN 60273, and other relevant EN (IEC) standards.

Circuit breakers is a "live-tank" type, for external installation, with SF6 gas for insulation and a medium for extinguishing the arc.The driving mechanism is motor-spring. In order to maintain the stability of the system and reduce electrical, mechanical and thermal stress, the working times for switching off of the fault currents is as short as possible.

Apart from switching off short-circuit currents, the circuit breaker is able to perform other operations such as disconnecting the capacitors, transformers and power lines.



2. Technical Description



Circuit breakers use the "SF6 single-pressure" method to extinguish the arc.

The circuit breaker mechanically dimensioned to the short-circuit loads and tensile strengths of IX-level earthquakes by EMSC-98. The high voltage connections are made of aluminum with screw holes according to IEC standards.

The circuit breakers are designed for single-pole and three-pole quick re-start. The drive mechanism has the option of automatic re-start (APV) with cycle O -0.3 s - CO - 3 min - CO.

The circuit breakers are equipped with a temperature-compensated density gauge for indication of the gas pressure.



3. Factory



LW36 66KV 145kv Live Tank Outdoor Gas SF6 Circuit Breaker 0

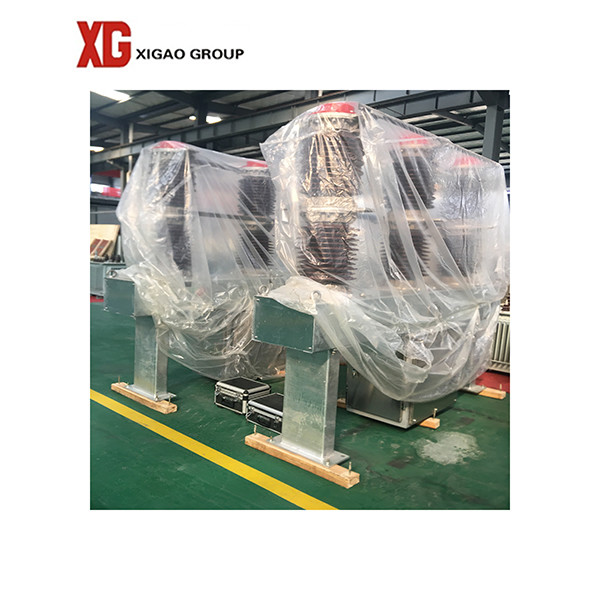

4. Delivery



LW36 66KV 145kv Live Tank Outdoor Gas SF6 Circuit Breaker 1



5. FAQ



1. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

2. Usually shipped by sea, small order or urgent order we can send you by air.

3. All our activities are accredited to ISO 14001:2015 and IEC standard.

4. Technology ensure the quality satisfy international request.
