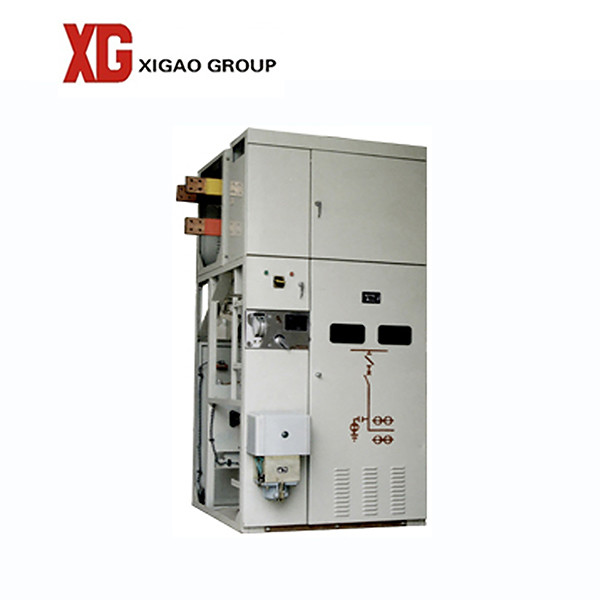

HXGN17 Fixed AC Metal Enclosed 3 Phase Switchgear Cubicle

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: XGN17
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Material: S.S Steel Or Galvanized Sheet
Application: Indoor Function: On-off, Control Or Protection Function Used In Power System Generation, Transmission, Distribution, Electric Energy Conversion And Consumption
High Light:

HXGN17 3 Phase Switchgear Cubicle

,

33KV 3 Phase Switchgear Cubicle

,

40.5KV 3 Phase Switchgear Cubicle


Product Description

1. HXGN17-33KV 40.5KV fixed AC metal enclosed 3 phase switchgear cubicle



(Abbreviations“ switchgear ”. It's suitable for single busbar systems with power level from 33KV indoor 3 phase AC 50/60HZ, rated current as 630 ~ 1250 A. As the acceptance and distribution of electrical energy, and circuit control, saturation and monitoring. It can meet the requirements of power plant, substation ( switching station ) and industrial and mining enterprises. This switch cabinet has a reliable " five - proof" locking function. The cabinet is equipped with FZN21-40.5 Vacuum load switch, strong compatibility, beautiful and generous, and easy maintenance, is a superior performance point collocation device. and accomodates to the demand of power market,reform of city and rural power grids, and packaged substations.



3. Working Environment


1. Ambient temperature:-10oC ~ +40oC;

2. Altitude: Not exceed 1000m above sea level;

3. Ambient humidity: Daily average RH ≤ 95%; Monthly average RH ≤ 90%

4. The around atmosphere should not contain distinct pollutions such as corrosive or flammable gas or steam

5. No severe contamination or frequency severe vibration, and the design of rigid grade under condition should meet the requirements of grade 1

6. No violent vibration, bumps and vertical gradient not more than 8° of place

Note: When the actual use conditions is different with the above mentioned information, the

user and the manufacturer should be negotiated


4. Specification

No Name Unit Data
1 Rated voltage kV 33
2 Insuation level Lightning impulse withstand voltage kV

170/185



1minpower frequency withstand volatge kV 80/95
3 Rated frequency Hz 50/60
4 Rated current A 630,1250
5 4s short time withstand current kA 25,31.5
6 Rated peak withstand current kA 50,63
7 Thickness
7.1 Base frame mm 2.0
7.2 Side panels mm 2.0
7.3 Top cover(with provisions of louvers for heat dissipation) mm 2.0
7.4 Doors mm 2.0
8 Live cable indicators for incoming & outgoing cables   Supply Live display
9 Material   Steel sheet coated with aluminum-zinc alloy
10 Protection level   Enclosure IP3X,partition of each compartment is IP2X
11 Standard   IEC62271-200
12 Color   RAL7032 / RAL7035



5. Factory



HXGN17 Fixed AC Metal Enclosed 3 Phase Switchgear Cubicle 0



6. Delivery



HXGN17 Fixed AC Metal Enclosed 3 Phase Switchgear Cubicle 1



7. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
