GGD-0.4 0.4kv Low Voltage Metal Enclosed Switchgear

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: GGD
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Rated Voltage: 0.4KV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
High Light:

0.4kv Indoor Distribution Cabinet

,

0.4kv Metal Enclosed Switchgear

,

GGD-0.4 Metal Enclosed Switchgear


Product Description

1. GGD-12 type low voltage indoor distribution cabinet metal enclosed switchgear 0.4kv

Main technical parameters
Sequence number Project Name Unit Electrical parameters
1 standards   GB 7251.1-2005
2 The rated voltage insulation Ui V 690V
3 Rated voltage Ue V 400V
4 Rated current In A 630A~100A
5 Short-term tolerance current ability lew kA 20KA
6 Shell IP protection grade   IP30/IP55/IP65
7 Environment temperature °C -20~+40
8 installation   landing
9 Case materials mm 1.5-2.0 Cold-rolled steel sheet or stainless steel plate
10 Surface treatment   Electrostatic spraying technology
11 Open the direction   The opening Angle is equal or greater than 135



2. Photo

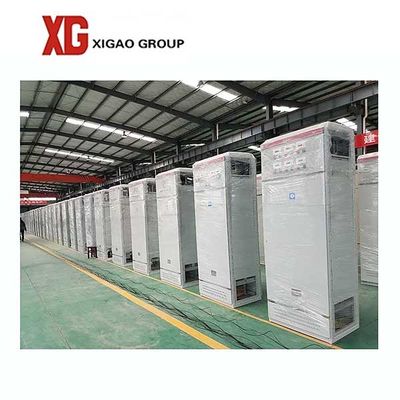

GGD-0.4 0.4kv Low Voltage Metal Enclosed Switchgear 0



3. Factory



GGD-0.4 0.4kv Low Voltage Metal Enclosed Switchgear 1



4. Delivery



GGD-0.4 0.4kv Low Voltage Metal Enclosed Switchgear 2



5. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
