KYN28-12 Armor AC Metal Enclosed Electrical Switchgear Cubicle

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: KYN28
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
Rated Voltage: 10kv 11kv 12kv Rated Current: 200A-3150A
High Light:

KYN28-12 Electrical Switchgear Cubicle

,

7.2kv Electrical Switchgear Cubicle

,

12kv Electrical Switchgear Cubicle


Product Description

1. KYN28-12 Armor Type Ac Metal-Enclosed electrical switchgear cubicle 7.2kv 10kv 12kv

KYN128-12 armoured medium mounted metal enclosed switchgear is suitable for use in 3.6-12kv three-phase ac power grids for receiving and distributing electrical energy and for controlling, monitoring and protecting circuits. Can be used for single busbar, single or double busbar system bus section system. The switchgear meet IEC62271"Ac metal enclosed switching equipment and control equipment with rated voltage above 1KV and below 52KV",IEC694"Common provisions for high voltage switches and control equipment",China GB3906 "3.6~40.5KV ac metal enclosed switching equipment and control equipment",DL/T404 "indoor ac high voltage switchgear order conditions",Germany DIN VDE0670 "ac switching equipment with rated voltage over 1KV"And so on standard request.And has the consummation reliable shell operation function.


2. KYN28-12 Metal-enclosed Electrical High Voltage Switchgear Cubicle


Project
Unit
Data
Rated voltage
kV
3.6
7.2
12
Rated frequency
Hz
50
60
-
-
-
-
Rated current of circuit breaker
A
630
1250
1600
2000
2500
3150
Rated current of switchgear
A
630
1250
1600
2000
2500
3150
Rated short time withstand current(4s)
kA
16
20
25
31.5
40
50
Rated peak withstand current
kA
40
50
63
80
100
125
Rated short circuit breaking current
kA
16
20
25
31.6
40
50
Rated short circuit closing current
kA
40
50
63
80
100
125
Rated insulation level
1min power frequency withstand voltage
kV
24
32
42
Lingtning impulse withstand coltage
kV
40
60
75
Protection grade
Shell is IP4X, IP2X when circuit breaker door is open


3. Photo

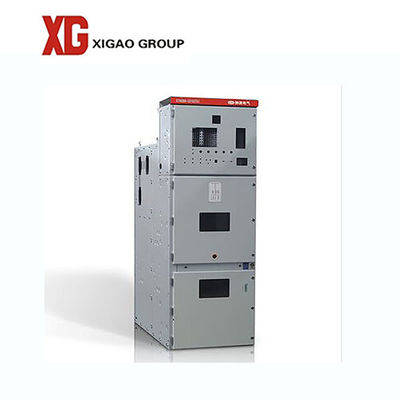

KYN28-12 Armor AC Metal Enclosed Electrical Switchgear Cubicle 0

4. Factory
KYN28-12 Armor AC Metal Enclosed Electrical Switchgear Cubicle 1

5. Delivery


KYN28-12 Armor AC Metal Enclosed Electrical Switchgear Cubicle 2

6. FAQ


1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
