LW36A-145KV Live Tank High Voltage SF6 Circuit Breaker

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: LW36
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
High Light:

High Voltage SF6 Circuit Breaker

,

Live Tank SF6 Circuit Breaker

,

LW36A-145KV SF6 Circuit Breaker


Product Description

1. LW36A-145KV Live Tank High Voltage 11kv 126kv 145kv Sf6 Circuit Breaker

LW36A-145KV Live Tank High Voltage 11kv 126kv 145kv Sf6 Circuit Breaker, with voltage from 40.5-550kV and rated current up to 4000A, manufactured by our company, are provided with three kinds of operating mechanism, pneumatic, spring and hydraulic type.
Motor is used in spring mechanism to charge closing spring and charge opening spring at closing. Disk spring is used in hydraulic mechanism to be charged instead  of traditional compressed nitrogen gas for charge, and hydraulic driving is used at both opening and closing. Compressed air is used in pneumatic mechanism as driven force for open while spring is used for close. The three kinds of operating mechanisms have their own features and are used in circuit breakers of different voltage class respectively.Due to the unit structure in circuit breaker, there are advantages of minimized number of breaks,lower number of parts, simple structure,high reliability and long period of inspection.

2.Normal Service Condition

2.1 .Altitude: ≤3000m

2.2. Humidity monthly:≤90%
2.3. Max .wind velocity:≤35m/s
2.4. Pollution class:Ⅲclass,IV class
2.5. Ambient air temperature:-35℃~40℃(It’s satisfied under condition of -40℃ in heavy cold area)
2.6. Max .temperature difference daily: 25K
2.7. Earthquake withstand density:8 degree
2.8. Ice coating: ≤10mm
2.9. Max. radiance from sun: 1000 W/m2



3. Technical Datasheet

1)  Three-phase Mechanism

Outdoor H.V. three pole mechanism SF6 live tank 400 kv circuit breaker

2)  Single-phase Mechanism

Outdoor H.V. three pole mechanism SF6 live tank 400 kv circuit breaker


4. Photo

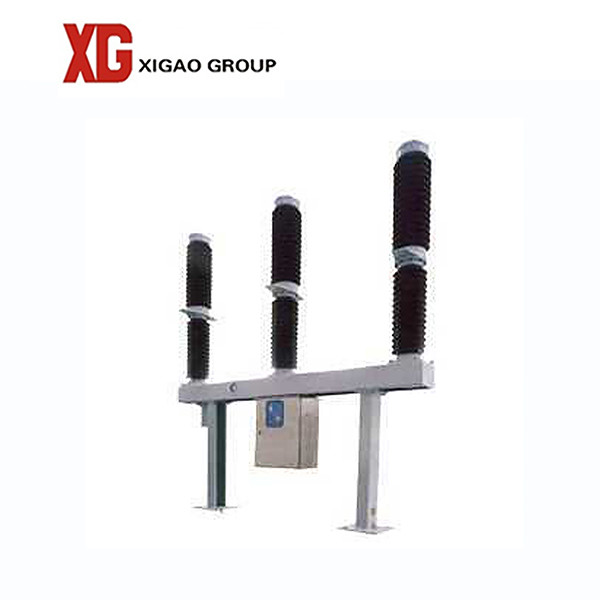

LW36A-145KV Live Tank High Voltage SF6 Circuit Breaker 2

5. Factory

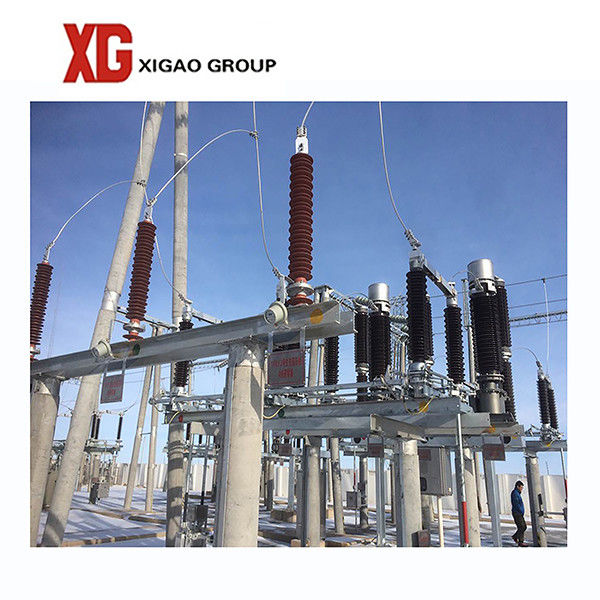

LW36A-145KV Live Tank High Voltage SF6 Circuit Breaker 3



6. Delivery



LW36A-145KV Live Tank High Voltage SF6 Circuit Breaker 4
