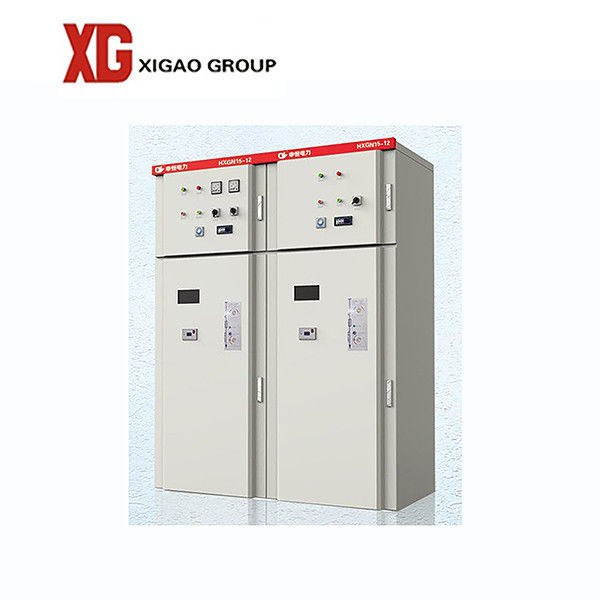

Box Type XGN15-12 Fixed Metal Closed Ring Network Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: HXGN15-12
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
Application: Indoor Standard: GB, IEC Standard
Function: On-off Warranty: 12 Months
OEM: Yes
High Light:

XGN15-12 Ring Network Switchgear

,

11kv Ring Network Switchgear

,

12kv Ring Network Switchgear


Product Description

1. XGN15-12 box type fixed metal closed ring network switchgear 10kv 11kv 12kv



 XGN15-12 box type fixed metal closed ring network switchgear (referred to as ring network cabinet) is a new type of high voltage switchgear produced for urban power grid reconstruction and construction needs. It is also used as the starting load current and short-circuit current in the power supply system.

The ring network cabinet is suitable for AC 12KV, 50/60HZ power distribution system, and is widely used in urban power grid construction and renovation projects, industrial and mining enterprises, high-rise buildings and public facilities. As a ring network power supply unit and terminal equipment, the distribution of power, control and protection of electrical equipment can also be installed in box-type substations.
The ring network cabinet complies with the relevant regulations of IEC420 and GB3909.

Ring network power supply principle

The ring network power supply generally consists of three basic units, and the incoming and outgoing line cabinets serve as ring network units. When any line fails, it can be isolated in time, and another unit ensures that the user's transformer branch is continuously powered. The user loop ring network cabinet protects and isolates the transformer, facilitating maintenance and repair.
The ring network cabinet can be arbitrarily extended, and various combinations can be formed by the basic unit according to user requirements.


2. MODEL AND MEANING


Box Type XGN15-12 Fixed Metal Closed Ring Network Switchgear 0


3. Technical Sheet




 No.

 Item

 Unit

Data

 1

 Rated voltage

KV

12

2

Rated current

A

630,1250,1600,2000,2500,3150,4000

3

Rated short-circuit current

KA

20,25,31.5,40,50,63

4

Rated peak withstand current

KA

50,63,80,100,125,160

5

Short-time withstand current(4s)

KA

20,25,31.5,40,50,63

6

Insulation: Power frequency/Lightning

KV

42/75

7

Protection class



IP4X

8

Optional circuit breakers



ZN63A(VS1), VD4, VBP, EV12 etc.

9

Operating mechanism



Spring mechanism; Permanent magnetic actuator

10

Operational power supply

V

DC:110,220; AC:110,220

11

Overall dimension(Width*Depth*Height)

mm

800(650,1000)x1500(1700)x2300

 12

 Weight

 KG

800




4. Photo and drawing


Box Type XGN15-12 Fixed Metal Closed Ring Network Switchgear 1


5. FAQ


1. Technology ensure the quality satisfy international request.
2. Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
3. For tender cooperation, it is welcome to discuss the detail in between.
4. Some type reports are provided accordingly.
5. Our factory is 250000m2 for production and office.
6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
