0.4KV 6.6kv MNS Indoor Metal Enclosed Power Distribution Switchgear

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: MNS..
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Color: Grey Or Customized Type: Indoor, Metal Clad
Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A….
Frequency: 50/60Hz Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66
Phase: 3 Phase Material: S.S Steel Or Galvanized Sheet
High Light:

MNS Power Distribution Switchgear

,

0.4KV Power Distribution Switchgear

,

MNS Withdrawable Switchboard


Product Description

1.  0.4KV 6.6kv MNS Indoor Metal Enclosed Withdrawable Switchboard

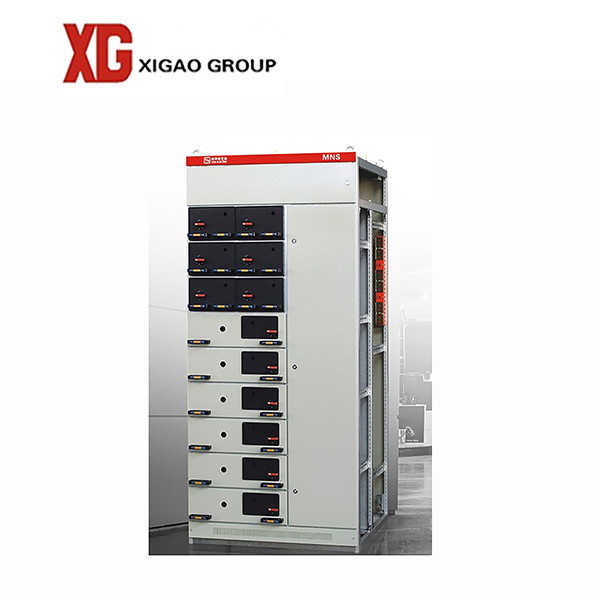

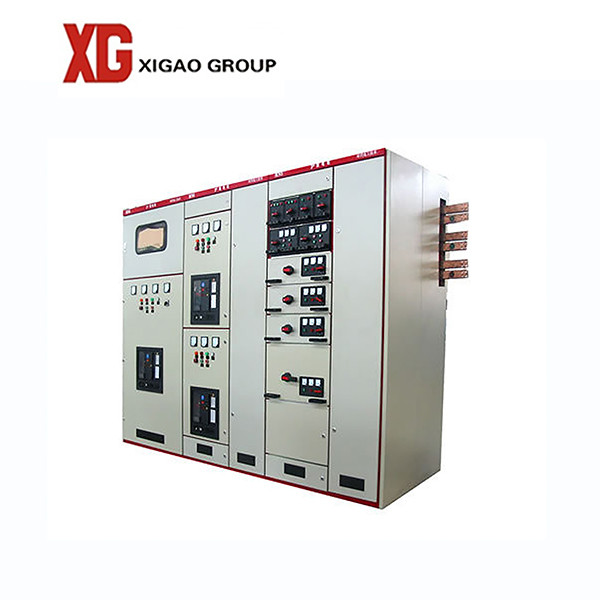

MNS Indoor Metal Enclosed Withdrawable Switchboard

It is suitable for all power distribution systems and locations that require a three-phase alternative current with a frequency of 50(60)Hz and a rated voltage from 380V to 660V such as power systems, petrochemical industries, public utilities, residential areas, drilling platform, mining enterprises, etc.It is suitable for all power distribution systems and locations that require a three-phase alternative current with a frequency of 50(60)Hz and a rated voltage from 380V to 660V such as power systems, petrochemical industries, public utilities, residential areas, drilling platform, mining enterprises, etc.



2. Description



Features

It is suitable for all power distribution systems and locations that require a three-phase alternative current with a frequency of 50(60)Hz and a rated voltage from 380V to 660V such as power systems, petrochemical industries, public utilities, residential areas, drilling platform, mining enterprises, etc.


3. Parameters

Rated voltage 380V
Rated power current 100~4000A
Rated short time withstand current 65kA
Rated peak withstand current 136kA



Rated insulation voltage up to 1000V
Rated operating voltage up to 690V
Rated frequency 50Hz, 60Hz
Main busbar Rated current up to 6300A
Rated peak withstand current up to 250kA
Rated short-time withstand current up to 100kA
Distribution busbar Rated current up to 2000A
Rated peak withstand current up to 176kA
Rated short-time withstand current up to 100kA
Size Width 600mm, 800mm, 1000mm
Depth 800mm, 10000mm
Height 2200mm
Forms of separation up to Form 4b
Degrees of protection IP30



4. Mechanical design:



Frame construction: The basic elements of the MNS frame construction are "C" shaped steel profiles with a 25mm hole pitch. This 25mm equals the dimension of 1E used in MNS to define the area usage within the switchgear. Each cubicle is precision constructed by bolting horizontal and vertical profiles together, to form a rigid modular structure. The profiles are galvanic protected against corrosion.



5. Technical detail






6. FAQ



1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

2. For tender cooperation, it is welcome to discuss the detail in between.

3. Some type reports are provided accordingly.

4. Our factory is 250000m2 for production and office.

5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
