| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO, CCC |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 SET |
| Model Number: | SG10 | Usage: | Power |
|---|---|---|---|
| Frequency: | 50Hz/60Hz | Rated Voltage: | 10kv |
| Phase: | Three | Rated Capacity: | 500kva |
| Type: | Dry | ||
| High Light: | SCB13 Dry Type Power Transformer,20KV Dry Type Power Transformer,5000kva Dry Type Power Transformer |
||

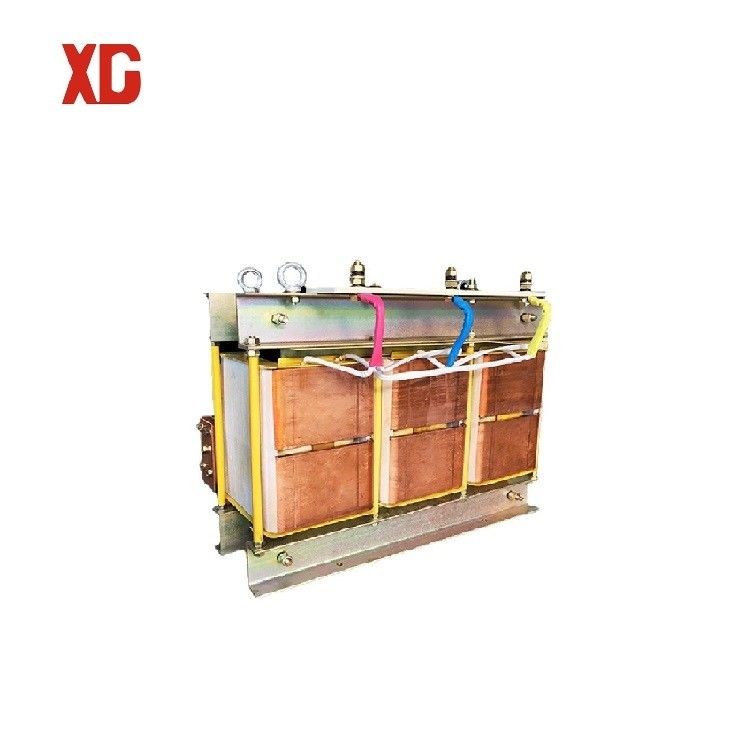

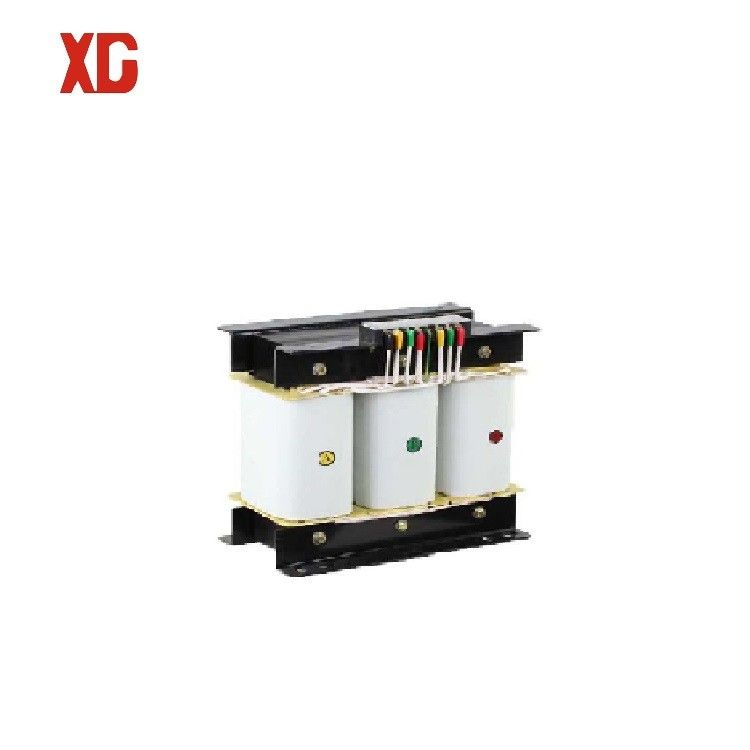

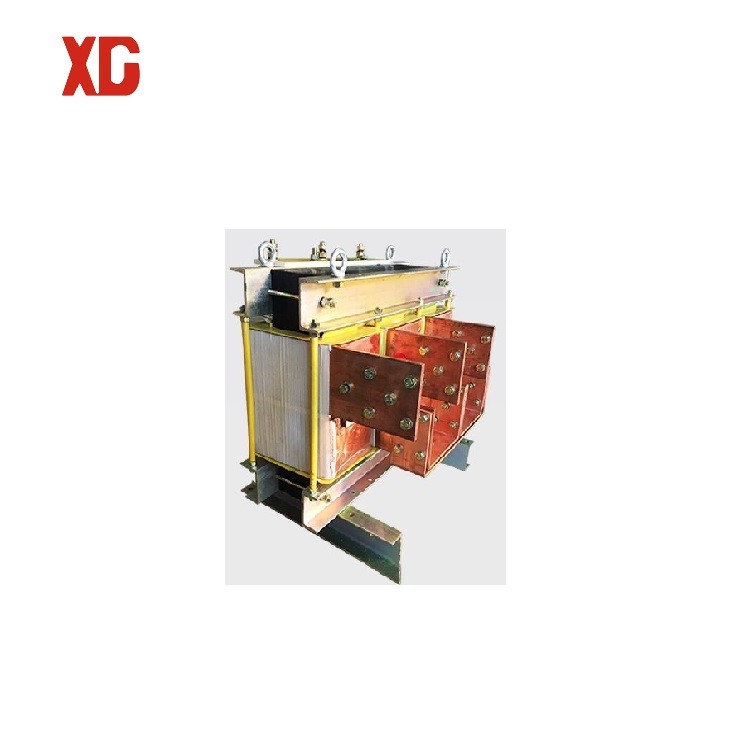

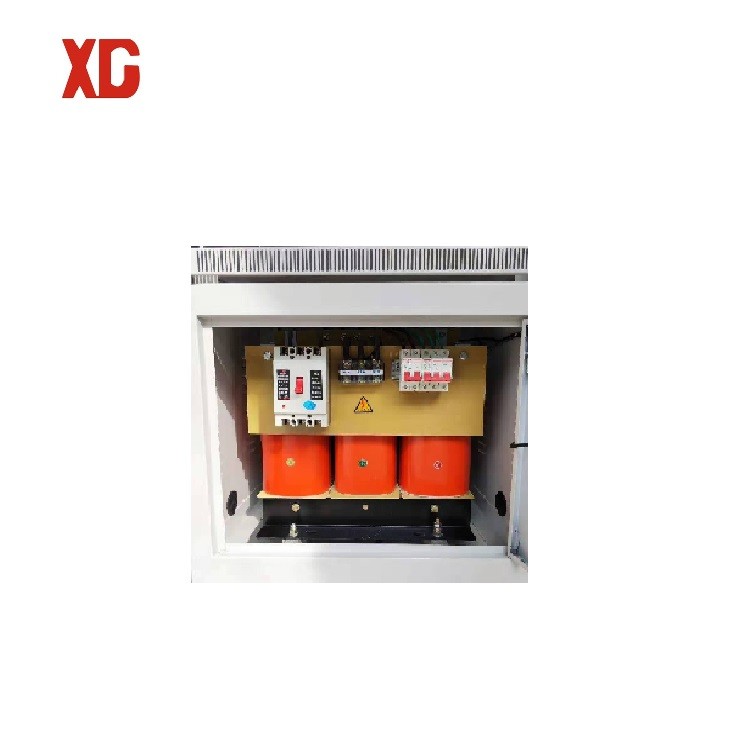

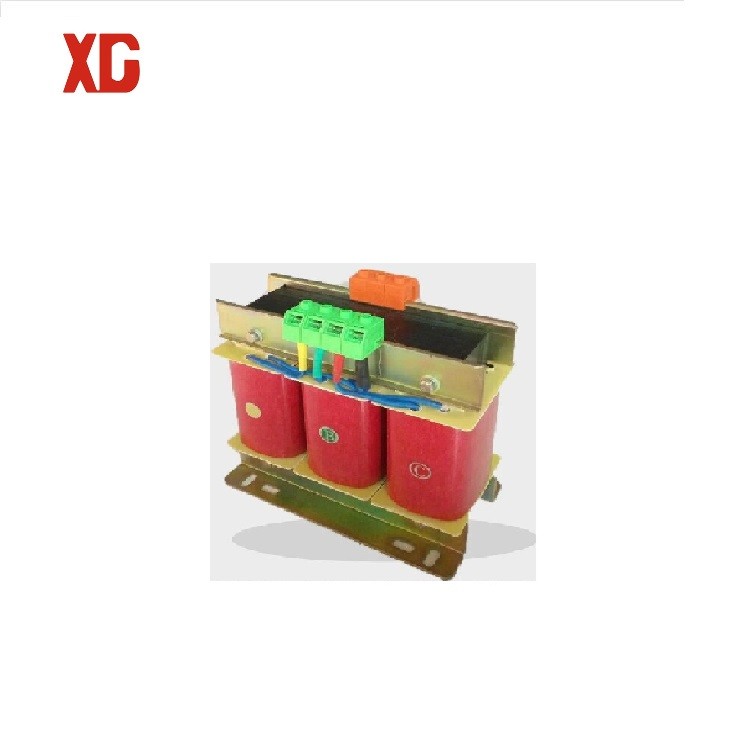

1.SG10 Type H-Class Insulation Dry-Type 11Kv 33Kv Power Transformer
01) The core is made of cold-rolled silicon steel sheet with high magnetic permeability, and the structure is drawn plate;
The magnetic circuit is short, the loss and noise level is low;
02) Winding adopts compression line, small loss, strong short-circuit resistance;
03) The active part adopts special pressing mode, and axial compression is reliable;
04) The oil tank is bell shaped, full folding plate structure, good appearance, easy maintenance;
05) The capsule type oil container is used to minimize the aging of oil.
06) Local discharge: the apparent discharge at 1.5 times the rated voltage is less than 80pC;
07) Noise :63MVA and below products less than 58dB(AN);
08) Power loss: no-load loss is 30% lower than IEC standard;
09) Reliability: No damage or oil leakage occurred to all in-service products;
10) Short circuit resistance: SFZ11-5000/132 products successfully passed the national short circuit resistance test
Transformer quality supervision and inspection center and through the Netherlands "KEMA" quality control system.
1)Simple maintenance: seldom need any maintenance.
2)They are pollution-free
3)They are used in the areas of contaminated and damped
4)They are easier to Install.
5)They have long servie life because of the dielectric heating & low thermal
6)Protects the property & people
7)For short circuit currents, they have high resistance
8)Performance is excellent
Capacity is high to support overloads
| Dry-type transformer type | Cast Resin |
| Manufacturing Standards | IEC, ANSI |
| Rated Capacity | Up to 25MVA |
| Rated Voltage | Up to 36KV |
| Phases | Single or Three phase |
| Tapping | With tapping links or on-load tap changer |
| Frequency | 50Hz or 60Hz |
| Vector groups | Dy, Yy, Yd as standard. Other on request |
| Class Insulation | According to IEC 60085, Class F or Class H |
| Type of cooling | AN (natural air),AF, AFWF on request |
| IP Rate | IP00 to IP54 |
| Environment Class | E2 |
| Climate Class | C2 |
| Fireproof Class | F1 |
4. FAQ
1. Send the technical data, better for all useful information; we will make a good recommendation.
2. Usually shipped by sea, small order or urgent order we can send you by air.
3. All our activities are accredited to ISO 14001:2015 and IEC standard.
4. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
