AC 35KV Armoured Movable Power Distribution Switchgear

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: KYN61
Minimum Order Quantity: 1
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500
Detail Information
Model: KYN61 Color: Grey Or Customized
Type: Indoor, Metal Clad Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A…. Frequency: 50/60Hz
Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66 Phase: 3 Phase
High Light:

Movable Power Distribution Switchgear

,

Armoured Power Distribution Switchgear

,

35KV Power Distribution Switchgear


Product Description

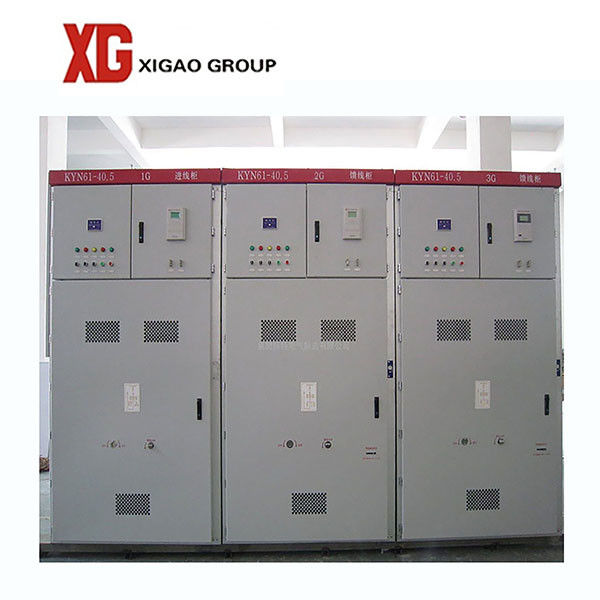

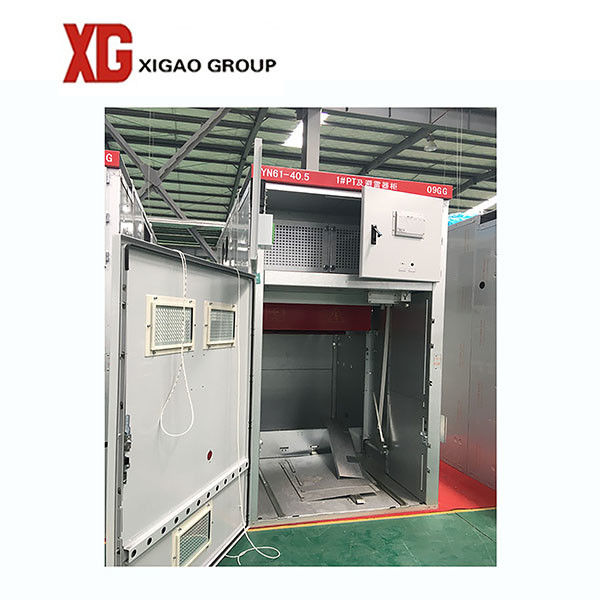

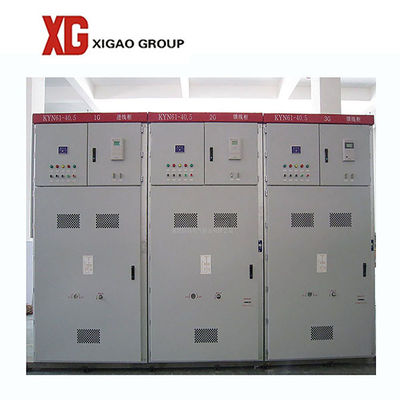

1.KYN61-40.5KV 35KV Armoured Movable AC Power Distribution Switchgear



KYN61-40.5 switchgear is complete indoor power distribution equipment suitable for 3-phase AC 50Hz and rated voltage of 40.5KV.It is used for power acceptance and distribution, circuit control, protection and detection etc in power plants, transformer substations or industrial and mining establishments.



2.Parameter of products

No. Item Unit Data
1 Rated voltage KV 40.5
2 Rated Current A 630,1250,1600,2000,2500
3 Rated short-circuit current KA 20,25,31,5,40
4 Rated peak withstand current KA 50,63,80,100
5 Short-time withstand current KA 20,25,31.5,40
6 Insulation:Power frequency/Lighning KV 95/185
7 Protection class   IP4X
8 Optional circuit braekers   ZN85,VD4,HD4,LN2-40.5 ect.
9 Operating mechanism   Spring mechanism;Permanent magnetic.
10 Operational Power supply V DC:110,220;ac:110,220
11 Overall deimension(Width*Depth*Heigh) mm

1400(1200)X2800x2600

1680x2800(3100)X2800

12 Weight KG 1800
13 Protection degree   IP3X(compartment IP2X)

3.Product feature and application



Relative humidity:Daily average ≤95%,month average:90%

Earthquake intensity:≤8 degree;

Ambient temperature:-10℃∼+40℃

Altitude:≤1000M

Applicable occasions should be free from corrosive,inflammables and vapour.

4.Diagrams



5. Factory show


6. FAQ



(1). How to order the products?

Send your product name, model and drawing and let us confirm the right one, and recommend and make a good offer.

(2). About lead time and shipping time?

Usually it is 3-10 days, if quantity is big, lead time will be extended.

(3)Life span of our XG brand?

Generally we promise two years quality guarantee, some products will be extended longer time for life span.
