HV 7.2kV 12kV Indoor Power Distribution Switchgear AC 50Hz

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: KYN28
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Model: KYN28 Indoor Power Distribution Switchgear Color: Grey Or Customized
Type: Indoor, Metal Clad Rated Voltage: 7.2kV, 12kV HV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A Frequency: AC 50/60Hz
Protection Level: IP4X/ IP30/IP32/IP40/IP65 Phase: 3 Phase
High Light:

12kV Indoor Power Distribution Switchgear

,

HV Indoor Power Distribution Switchgear

,

Metal Clad Power Distribution Switchgear


Product Description

HV 7.2kV 12kV Indoor Power Distribution Switchgear Panel AC 50Hz

1. KYN28 type indoor Power Distribution switchgear panel

The KYN28A-12 Power Distribution Switchgear is a power transmission and distribution device for accepting and distributing electric power in the sectionalized single-bus system, which is mainly used for accepting electric power of small and medium-sized generators, power distribution of industrial and mining enterprises, accepting and transmitting electric power for secondary substations. starting of large-sized HV motors and used in. power plants, its functions are for control, protection, and monitoring.

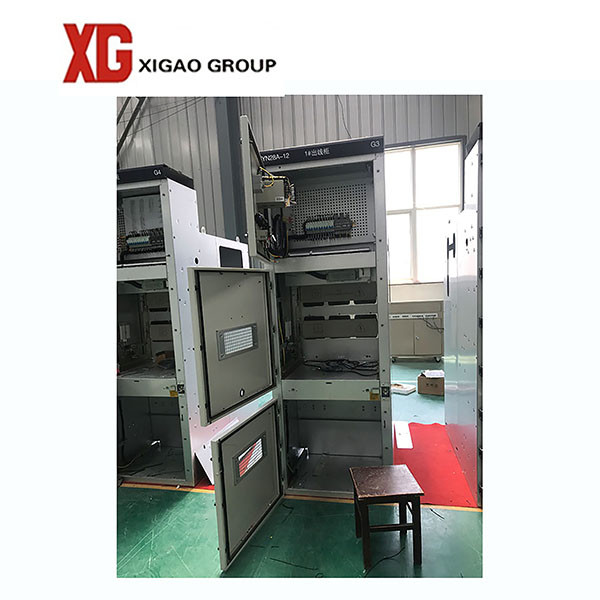

2. Photo



HV 7.2kV 12kV Indoor Power Distribution Switchgear AC 50Hz 0


3. Specification

Item

unit
value
Rated Frequency

Hz
50/60
Rated voltage




kV
12


Rated insulation level
1min Power Frequency Withstand Voltage
42
lightning impulse withsdand voltage
75
Main Busbar Rated Current
A
630,1250,1600,2000,2500,3150
Sub-Busbar Rated Current
A
630,1250,1600,2000,2500,3150*
4S Thermal Stability Currenct (Effective Data)
kA
16,20,25,31.5,40
Rated Dynamic Stability Currenct (Peak Value)
40,50,63,80,100
Protection Level
enclosure:IP4X, CB Compartment open:IP2X




4. Working Environment


1. Temperature: Not over than +40, Not less than -5. Equal Temperature35.
2. Altitude: not over than 1000M
3. Relative Humidity: ≤90% (+25)
4. Withstand Earthquake magnitude: 8 degree
5. Without dust, fire, Corrosion or other dangerous items around.



5. FAQ



1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

2. For tender cooperation, it is welcome to discuss the detail in between.

3. Some type reports are provided accordingly.

4. Our factory is 250000m2 for production and office.

5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
