KYN28 Substation Power Distribution Switchgear 7.2kV 12kV 17.5kV

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: KYN...
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Model: KYN28, KYN61 Power Distribution Switchgear Color: Grey Or Customized
Type: Indoor, Metal Clad Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV, 36kV And 40.5kV
Rated Current: 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A…. Frequency: 50hz/60Hz
Protection Level: IP4X/ IP30/IP32/IP40/IP65/IP66 Phase: 3 Phase
High Light:

Substation Power Distribution Switchgear

,

Power Distribution Switchgear 7.2kV

,

Power Distribution Metal Clad Switchgear


Product Description

KYN28 Metal Clad Power Distribution Switchgear 7.2kV 12kV 17.5kV



1. kyn28 12 type gas insulated switchgear



KYN28A with three-phase AC 50Hz single bus or single bus sectional system. It is mainly used for substation and distribution system of power plants, substation, industrial and mining enterprises, building hotels, municipal construction and petrochemical sector as power receiving, power distribution andthe circuit controlling, protection and monitoring.





2. Technical specification of cubicle type gas insulated switchgear



Serial No. Item Unit Technical parameters
1 Rated voltage KV 24
2 Rated frequency HZ 50/60
3 Rated insulation level 1 min withstand voltage (effective value) KV Phase to phase & phase to earth 60 Isolation fracture 79
Lighting impulse withstand voltage (peak value) 125 145
Auxiliary control circuit power frequency withstand voltage V 2000
4 Rated current A 630,1250,1600,2000,2500,3150
5 Specified short-circuit dropout current KA 20, 25, 31.5
6 Rated short-circuit making current (peak value) KA 50, 63, 80
7 Rated short time withstand current (4S) KA 20, 25, 31.5
8 Rated peak withstand current KA 50, 63, 80
9 Auxiliary control circuit rated voltage V AC or DC 110/220
10 Protection level​ V IP4X (the circuit breaker chamber door is open or isolation chamber is IP2X)
11 Outline dimension mm 1000*1910*24001
12 Weight Kg 840-1500



3. Photo and drawing

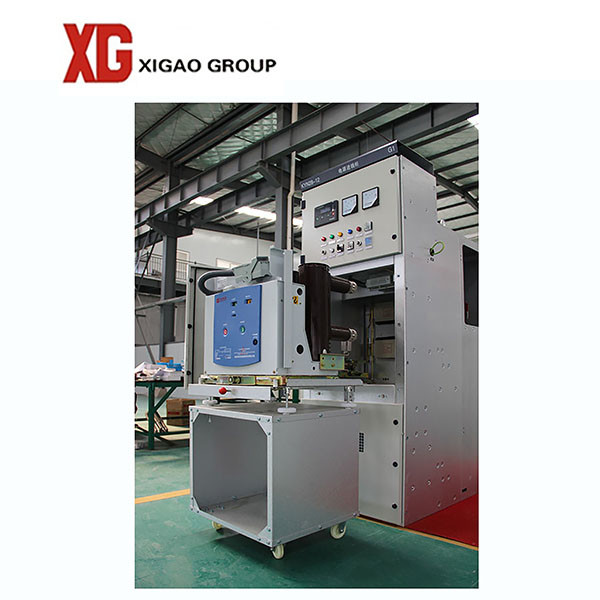

KYN28 Substation Power Distribution Switchgear 7.2kV 12kV 17.5kV 0
