| Place of Origin: | XIAN,CHINA |
|---|---|
| Brand Name: | XG |
| Certification: | ISO,CCC |
| Model Number: | KYN28 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SET |
| Name: | LV Low Voltage Switchgear | Type: | Indoor, Metal Clad |
|---|---|---|---|
| Rated Voltage: | 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV | Rated Current: | 630A, 1250A, 1600A, 2000A, 2500A, 3150A, 4000A |
| Protection Level: | IP4X/ IP30/IP32/IP40/IP65/IP66 | Phase: | 3 Phase |
| Rated Voltage: | 10kv 11kv 12kv | Rated Current: | 200A-3150A |
| High Light: | 17.5kV LV Low Voltage Switchgear,7.2kV LV Low Voltage Switchgear,12kV LV Low Voltage Switchgear |
||
LV Low Voltage Switchgear is used as indoor power distribution equipment for ring network and terminal power supply in factories, workshops, residential districts, high-rise buildings, schools, parks and other places.

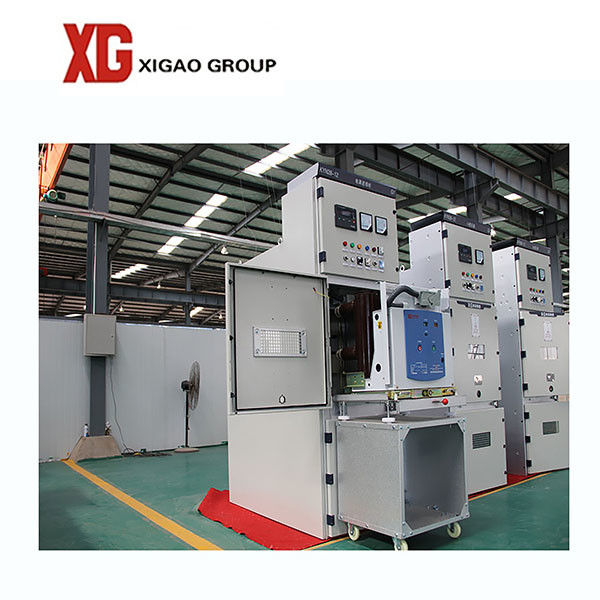

2. KYN28-12 Metal-enclosed Electrical High Voltage Switchgear Cubicle
|
Project
|
Unit
|
Data
|
||||||
|
Rated voltage
|
kV
|
3.6
|
7.2
|
12
|
||||
|
Rated frequency
|
Hz
|
50
|
60
|
-
|
-
|
-
|
-
|
|
|
Rated current of circuit breaker
|
A
|
630
|
1250
|
1600
|
2000
|
2500
|
3150
|
|
|
Rated current of switchgear
|
A
|
630
|
1250
|
1600
|
2000
|
2500
|
3150
|
|
|
Rated short time withstand current(4s)
|
kA
|
16
|
20
|
25
|
31.5
|
40
|
50
|
|
|
Rated peak withstand current
|
kA
|
40
|
50
|
63
|
80
|
100
|
125
|
|
|
Rated short circuit breaking current
|
kA
|
16
|
20
|
25
|
31.6
|
40
|
50
|
|
|
Rated short circuit closing current
|
kA
|
40
|
50
|
63
|
80
|
100
|
125
|
|
|
Rated insulation level
|
1min power frequency withstand voltage
|
kV
|
24
|
32
|
42
|
|||
|
Lingtning impulse withstand coltage
|
kV
|
40
|
60
|
75
|
||||
|
Protection grade
|
Shell is IP4X, IP2X when circuit breaker door is open
|
|||||||
3. Photo
4. Factory
5. Delivery
6. FAQ
1. Send the technical data, better for all useful information; we will make a good recommendation.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
3. Usually shipped by sea, small order or urgent order we can send you by air.
4. All our activities are accredited to ISO 14001:2015 and IEC standard.
5. Technology ensure the quality satisfy international request.
