| Brand Name: | XG |
|---|---|
| Certification: | ISO,CCC |
| Model Number: | GGD |
| Minimum Order Quantity: | 1 SET |
| Price: | USD1000-5000 |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SETS |
| Place Of Origin: | XIAN, China | Model: | GGD |
|---|---|---|---|
| Color: | Grey Or Customized | Type: | Indoor, Metal Clad |
| Rated Voltage: | 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV | Rated Current: | 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A, |
| Frequency: | 50/60Hz | Protection Level: | IP4X/ IP30/IP32/IP40/IP65/IP66 |
| Phase: | 3 | ||
| High Light: | LV Power Distribution Switchgear,Power Distribution Switchgear 24kV,Power Distribution Switchgear 36kV |
||

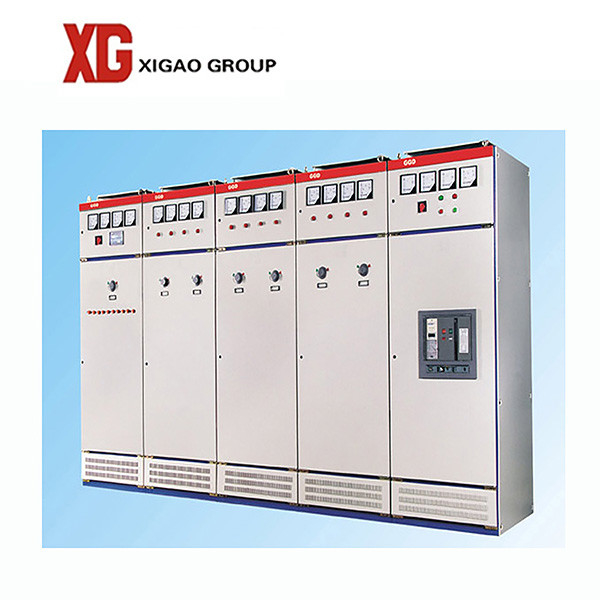

Indoor LV Power Distribution Switchgear 24kV 36kV 40.5kV
Power Distribution Switchgear is widely used in power plants, substations, industrial and mining enterprises, hotels, airports, docks and the building of broadcasting and communication center, transmission & distribution.
1.Technical Specification:
| GGD | |||
| No | Item | Unit | Parameter |
| 1 | Rated voltage | V | 380 |
| 2 | Rated current | A | 1000 |
| 3 | Rated short-circuit breaking current | KA | 15 |
| 4 | Rated short-circuit withstand current | KA | 15 |
| 5 | Rated peak withstand current | KA | 30 |
| GCS | |||
| No | Item | Unit | Parameter |
| 1 | Rated insulation voltage | V | 660(1000) |
| 2 | Rated main circuit operating voltage | V | 380(660),220,24 |
| 3 | Rated auxiliary circuit operatingvoltage | V | 220,110 |
| 4 | Rated frequency | Hz | 80(60) |
| 5 | Horizontal bus rated current | A | 4000 |
| 6 | Vertical bus rated current | A | 1000 |
| 7 | Rated peak withstand current | KA | 105(1760) |
| 8 | Rated short time withstand current | KA | 50(80) |
| MNS | |||
| No | Item | Unit | Parameter |
| 1 | Rated operating voltage | V | 380 |
| 2 | Rated frequency | Hz | 50 |
| 3 | Rated insulation voltage | V | 660 |
| 4 | Auxiliary circuit insulation voltage | V | 380 |
| 5 | Rated impulse withstand voltage | KV | 6 |
| 6 | Rated short time withstand current | KA | 30 |
| 7 | Rated peak withstand current | KA | 63 |
| 8 | Rated current of the distribution bus | A | 1000 |
| 9 | Rated short time withstand current 1s | KA | 80 |
| 10 | Enclosure rating | IP30 | |
2.Product Specification:
| Current Voltage | 380V |
| Rated Current | 3150A |
| Working frequency | 50HZ |
| Current | AC |
| Altitude | ≤2000m |
| Ambienttemperature | -35ºC-+40ºC |
| Seismic Capacity | 8 degree |
3.Service:
1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
4.Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
5.Product photo:
