ZW20 10kv 11kv 12kv Outdoor Pole Mounted Auto Recloser

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: ZW20
Minimum Order Quantity: 1 SET
Price: \
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Medium: Vacuum Material: Galvanized Sheet And Accessories
Standard: IEC/GB Function: Control And Protection
Installation Location: Power Plants Warranty: 12 Months
OEM: Yes Package: Exporting Standard Package
High Light:

ZW20 Pole Mounted Auto Recloser


10kv Pole Mounted Auto Recloser


12kv Pole Mounted Auto Recloser

Product Description

1.  ZW20 type 10kv 11kv 12kv outdoor pole mounted auto recloser vacuum circuit breakers


ZW20-12 outdoor high voltage vacuum circuit breaker for a period of 12KV, rated voltage of the three-phase ac 50HZ outdoor distribution equipment. It adopts vacuum arcing and SF6 gas as insulating medium is W20-12 column type vacuum circuit breaker on the modified products.
ZW20 vacuum circuit breaker Mainly used for breaking, closing load current power system, overload current and short circuit current.


2. Parameters of vacuum circuit breaker


No. Content Unit Data
1 Rated voltage kV 12
2 Rated frequency Hz 50
3 Rated current A 630,1000
4 Rated short circuit breaking current kA 12.5, 16, 20, 25
5 Rated peak withstand current (peak) kA 31.5, 40, 50, 63
6 Rated short time withstand current (4s) kA 12.5, 16, 20, 25
7 Rated short-circuit current (peak) kA 31.5, 40, 50, 63
8 Mechanical life times time 10000
9 Rated short-circuit breaking current breaking times time 30
10 1 min power frequency withstand voltage (phase to earth) kV 42/48
11 Peak lightning impulse withstand voltage (phase to earth) kV 75/85
12 Secondary circuit power frequency withstand voltage 1 min kV 2
13 Net weight kg 140
14 Rated SF6 gas pressure (gauge pressure) Mpa "0"


3. Application


Altitude: ≤2000m

Ambient Temperature: -40ºC ~ +40ºC
Relative humidity: daily≤95%, month≤90%

Earthquake intensity: ≤8

Wind speed: ≤34m/s

Installation site: Not including inflammable, explosive, chemical corrosion

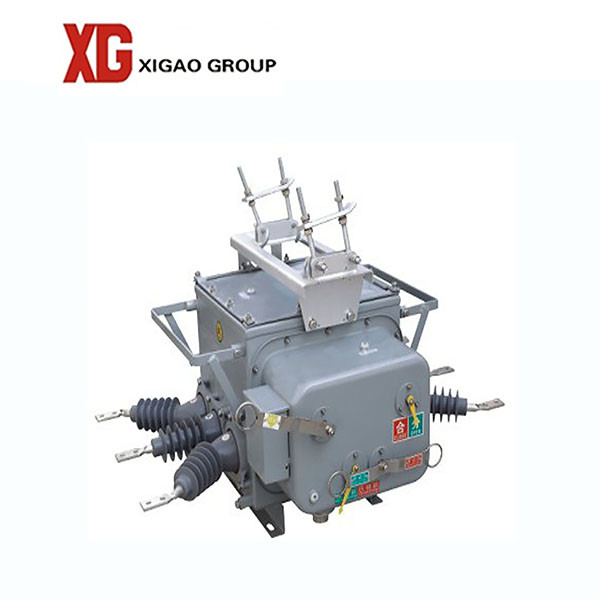

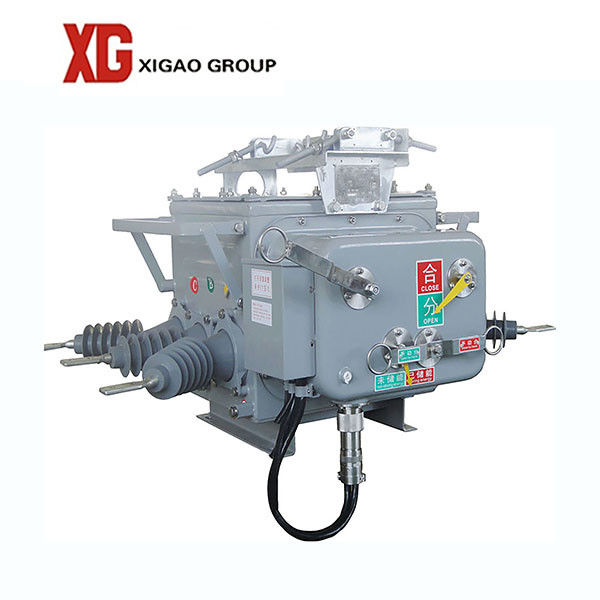

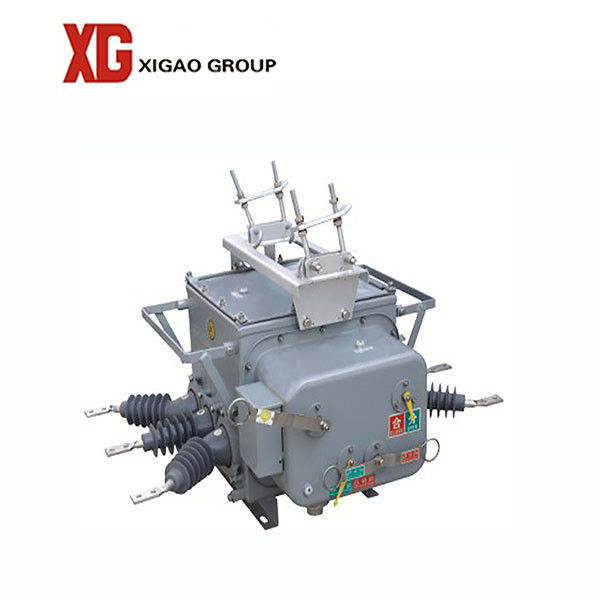

4. Photo and drawing






5. Factory


ZW20 10kv 11kv 12kv Outdoor Pole Mounted Auto Recloser 1



6. Delivery


ZW20 10kv 11kv 12kv Outdoor Pole Mounted Auto Recloser 2


7. FAQ


1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
