ZW32 Outdoor High Voltage Circuit Breaker Vacuum

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: ZW32
Minimum Order Quantity: 1 SET
Price: USD200-1000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Rated Voltage: 3.6KV 6.6KV 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A,
Frequency: 50/60Hz Poles Number: 3
Material: Galvanized Sheet And Accessories Function: Control And Protection
Installation Location: Power Plants, Substations And Power Systems Etc Warranty: 12 Months
High Light:

ZW32 High Voltage Circuit Breaker

,

High Voltage Circuit Breaker Vacuum

,

ZW32 hv circuit breaker


Product Description

ZW32 Outdoor High Voltage Vacuum Circuit Breaker



Product Description

ZW 32 outdoor high-voltage alternating-current vacuum circuit breaker is a new on-pole switchgear of our vacuum circuit breaker series products. Its rated voltage is 12 kV. It applies to places with such voltage level, including overhead lines, industrial and mining enterprises, power stations, substations, etc. Under its normal operating conditions and specified technical parameters, it can satisfy the protection requirements of systems connected with the grid in service. It has good performance in short-circuit making and breaking. It is characterized by automatic re-making, stable operation and long electric life.



Technical Parameter



Item
Description
Unit
Data
1
Rated voltage
KV
12
2
Rated insulation level
1 min power frequency withstand voltage(Dry)
KV
34

75

3
Rated current
A
630
4
Rated frequency
Hz
50/60
5
Rated short-circuit brekaing current
kA
16
6
Rated short-circuit making current(peak value)
kA
40 50 63
7
Rated short-time withstand current
kA
16
8
Rated withstand current(peak value)
kA
40 50 63
9
Rated operating sequence

OC-0.3s-CO-180S-CO
10
Rated duration of short-circuit
S
4
11
Rated current of over-current trip
A
5
12
Breaking times of rated short-circuit making current
Times
30
13
Permissible wearing thickness for contacts
mm
3
14
Meachical life

M2 class
15
Rated operating voltage
V
DC220 AC220 DC24
16
Mass
kg
About 125



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Product photo:

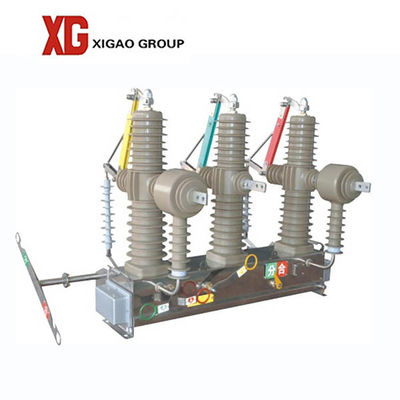

 ZW32 Outdoor High Voltage Circuit Breaker Vacuum 0

FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
