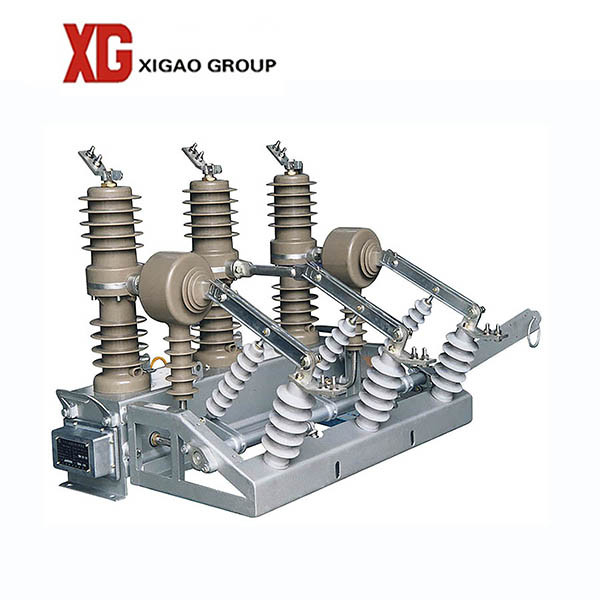

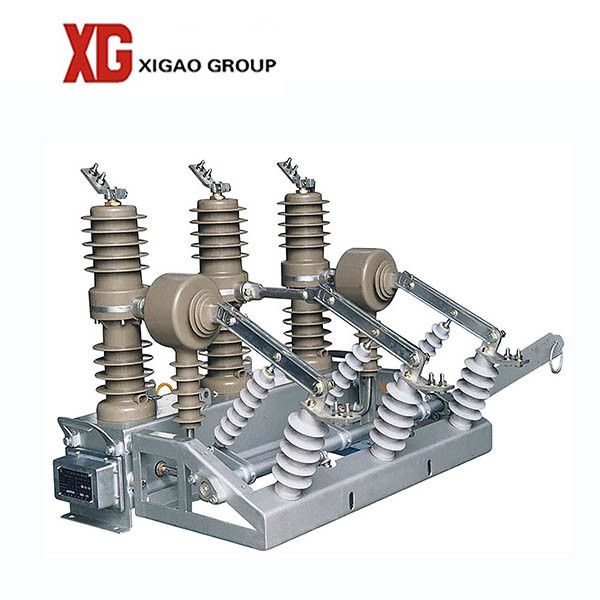

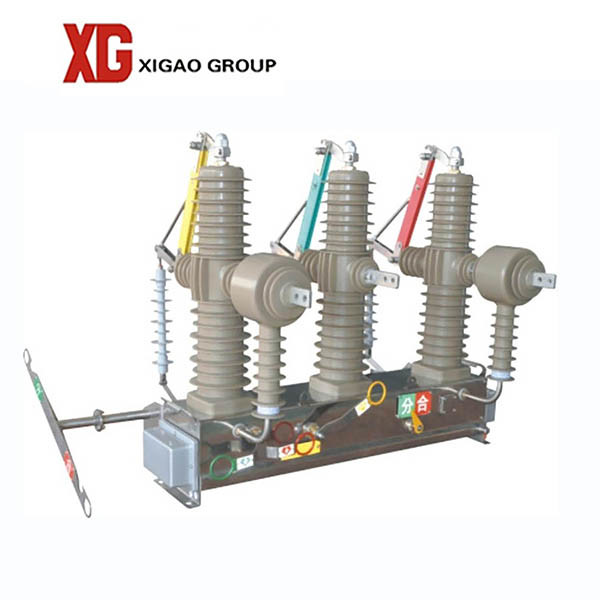

ZW32 High Voltage Outdoor Vacuum Circuit Breaker Manual With Isolation

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: ZW32
Minimum Order Quantity: 1 SET
Price: USD300-1000
Packaging Details: WOODEN ASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Model: ZW32 Type: Indoor
Rated Voltage: 3.6KV 6.6KV 7.2kV, 12kV, 17.5kV, 24kV, 36kV, 40.5kV Rated Current: 400A 630A, 1250A, 1600A, 2000A, 2500A, 3150A,
Frequency: 50/60Hz Poles Number: 3
Medium: Vacuum Material: Galvanized Sheet And Accessories
High Light:

ZW32 1600A Outdoor Vacuum Circuit Breaker

,

ZW32 12KV Outdoor Vacuum Circuit Breaker

,

ZW32 630A Outdoor Vacuum Circuit Breaker


Product Description

Specification
Rated voltage
kV
12
24
40.5
Rated frequency
Hz
50
50
50
Rated current
A
630
630
630
Rated short circuit breaking current
kA
20
20
20
Rated peak withstand current (peak)
kA
50
50
50
Rated short-time withstand current
kA
20
20
20
Rated short-circuit making current (peak)
kA
50
50
50
Mechanical endurance
Ops
10000
10000
10000
Rated short circuit breaks number
Ops
30
30
30
Power frequency withstand voltage (1min) (wet)(dry) phase to phase/isolating distance
kV
42/48
65/79
85/95
Lighting impulse withstand voltage (peak) (wet)(dry) phase to phase/isolating distance
kV
75/85
125/145
185
Power frequency withstand voltage of secondary circuit (1min)
kV
2
2
2

 certificate:
ZW32 High Voltage Outdoor Vacuum Circuit Breaker Manual With Isolation 0
Factory:
ZW32 High Voltage Outdoor Vacuum Circuit Breaker Manual With Isolation 1
Service:
ZW32 High Voltage Outdoor Vacuum Circuit Breaker Manual With Isolation 2
FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.
