Resin Cast PT Potential Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: JDZ10-10
Minimum Order Quantity: 1-3 SET
Packaging Details: WOODEN CASE
Delivery Time: 3- 7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Voltage Class: 10kv 11kv 12kv Rated Insulation Level: 12/42/75kv
Usage: Voltage Protection Phase: Single
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Rated Frequency: 50HZ/60Hz Application: Indoor
High Light:

Resin Cast PT Potential Transformer

,

JDZ PT Potential Transformer

,

11kv PT Potential Transformer


Product Description

1.  JDZ Type 10kv 11kv 33kv 35kv Indoors Resin Cast PT Potential Transformer



It is used for electria energy metering ,voltage control and reply protection in the electria system of frequency 50Hz or 60Hz and rated 36kv and or blelow .

Reted voltage ratio :

35000/√3/100/√3/100/3 or 33000/√3/110/√3/110/3 or

35000/√3/100/√3/100/√/100/3 or 33000/√3/110/√3/110/√/110/3

Accracy class: 0.2, 0.5, 1, 6P

Rated output(VA):75kv,150kv, 250kv,100kv, 30kv, 60kv

Ultimate output(VA):1000VA, 2x500VA



2.  Photo

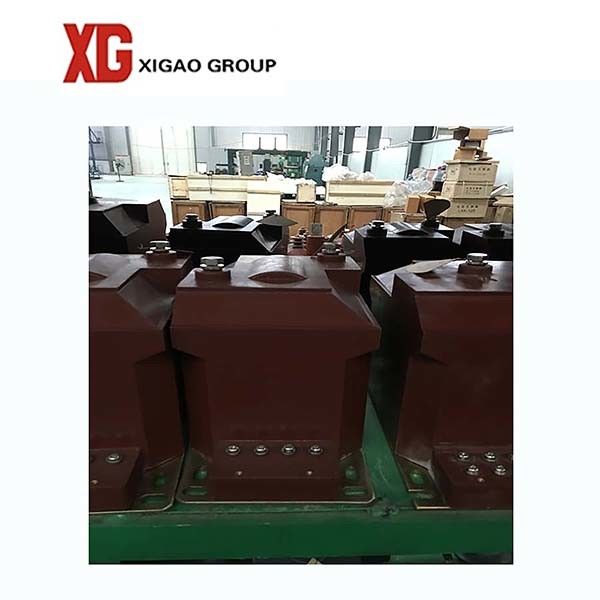

Resin Cast PT Potential Transformer 0

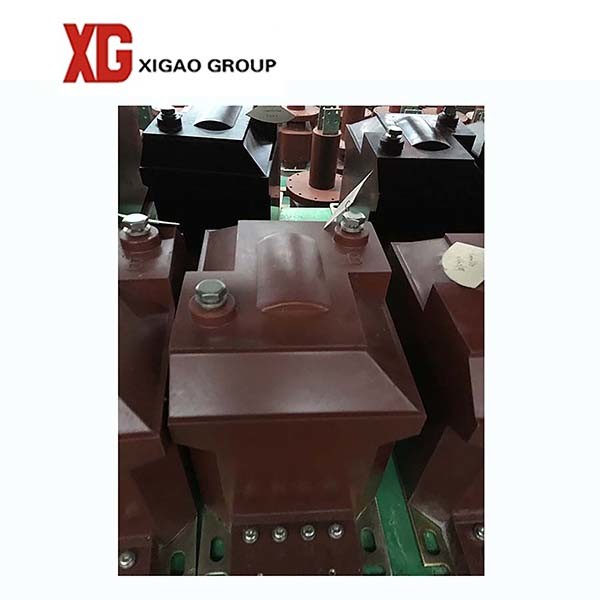

Resin Cast PT Potential Transformer 1





3. Dimensions








4. Factory showing room



Resin Cast PT Potential Transformer 3



5.  Delivery



Resin Cast PT Potential Transformer 4



6. FAQ



1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

2. For tender cooperation, it is welcome to discuss the detail in between.

3. Some type reports are provided accordingly.

4. Our factory is 250000m2 for production and office.

5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
