JDZ-35Q Indoor 33KV 35KV Epoxy Resin 3 Phase Potential Transformer

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO
Model Number: JDZ
Minimum Order Quantity: 1
Packaging Details: WOODEN BOX
Delivery Time: 3-7 DAYS
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET /MONTH
Detail Information
Type: Indoor Usage: Voltage Protection
Phase: Single Coil Structure: TOROIDAL
Accracy Class: 0.2, 0.5, 1, 6P Rated Voltage: 35kv
Voltage Ratio: 35000/√3/100/√3/100/3 Or 33000/√3/110/√3/110/3 Ultimate Output(VA): 1000VA, 2x500VA
High Light:

JDZ-35Q 3 Phase Potential Transformer

,

33KV 3 Phase Potential Transformer

,

35KV 3 Phase Potential Transformer


Product Description

1. JDZ-35Q Indoor 33KV 35KV 3 Phase Epoxy Resin PT Potential Transformer



It is used for electria energy metering ,voltage control and reply protection in the electria system of frequency 50Hz or 60Hz and rated 36kv and or blelow .

Rated voltage ratio :

35000/√3/100/√3/100/3 or 33000/√3/110/√3/110/3 or

35000/√3/100/√3/100/√/100/3 or 33000/√3/110/√3/110/√/110/3

Accracy class: 0.2, 0.5, 1, 6P

Rated output(VA):75kv,150kv, 250kv,100kv, 30kv, 60kv

Ultimate output(VA):1000VA, 2x500VA



2. Dimensions






3. Photo and drawing of Voltage Transformer

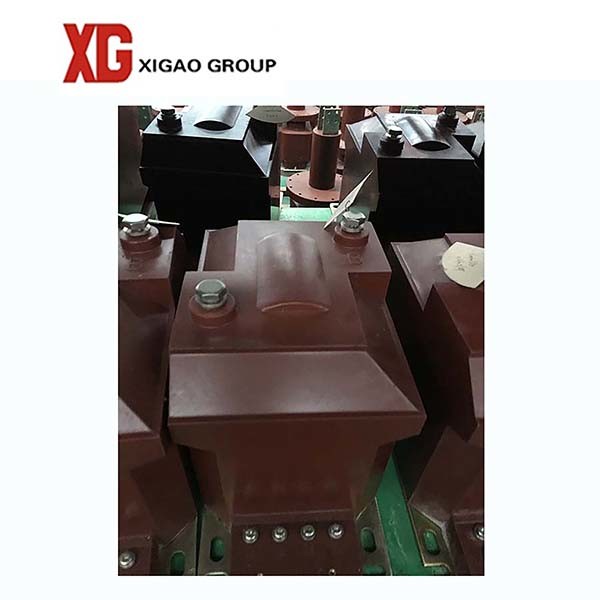

JDZ-35Q Indoor 33KV 35KV Epoxy Resin 3 Phase Potential Transformer 1

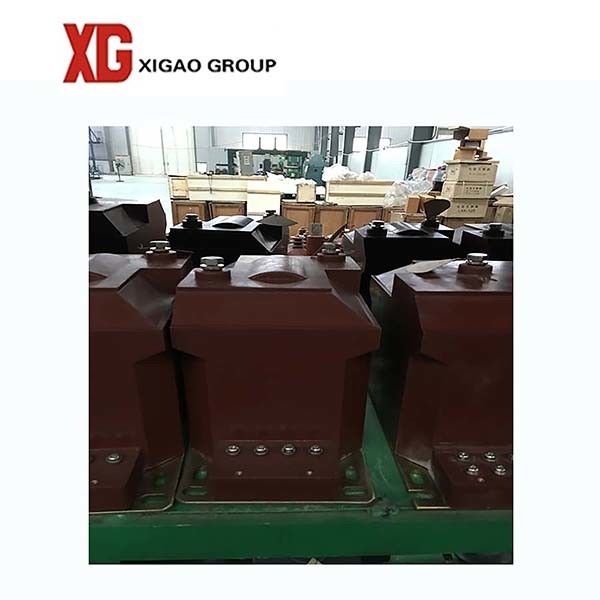

JDZ-35Q Indoor 33KV 35KV Epoxy Resin 3 Phase Potential Transformer 2



4. Factory strength



JDZ-35Q Indoor 33KV 35KV Epoxy Resin 3 Phase Potential Transformer 3



5. Delivery diversification



JDZ-35Q Indoor 33KV 35KV Epoxy Resin 3 Phase Potential Transformer 4



6.  FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.
