JDZ-35Q 33KV 35KV Single Phase PT Potential Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO
Model Number: JDZ9-35
Minimum Order Quantity: 2-3 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/P, T/T, D/A, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Ratd Voltage: 33kv 35kv 40.5kv Phase: Single
Accuracy Class: 0.5, 0.2S, 10P, 5P20 Ambient Temperature: -45℃ - +40℃
Material: Cast Resion Expoxy Standard: IEC/GB
Usage: Voltage Protection Rated Insulation Level: 35/95/185kV
High Light:

JDZ-35Q PT Potential Transformer

,

35KV PT Potential Transformer

,

JDZ-35Q Single Phase Potential Transformer


Product Description

1. JDZ-35Q Type 33KV 35KV Single Phase PT Potential Transformer



JDZX9-35 voltage transformers for the single-phase epoxy resin pouring insulation fully enclosed products, core and winding cast into one, small size, light weight, the second terminal with a outlet box cover, and there are three different directions of the feeder outlet, In the rated frequency 50Hz or 60Hz, rated voltage 3kV, 6kV, 10kV power system, for energy measurement, voltage monitoring and relay protection.



Ref JDZ9-35
Um 36kv
Test Voltge 70kv/170kv
Rated primary Voltage - U PN

30000V

33000V

Rated Secondary Voltage - U SN 100V or 110V
Thermal Limiting Output 1000VA
Rated Burden In Accuracy Class(IEC) 0.2: 30VA
0.5: 80VA
1.0: 120VA
Frequency 50/60Hz
Weight 110 kgs



2. Photo

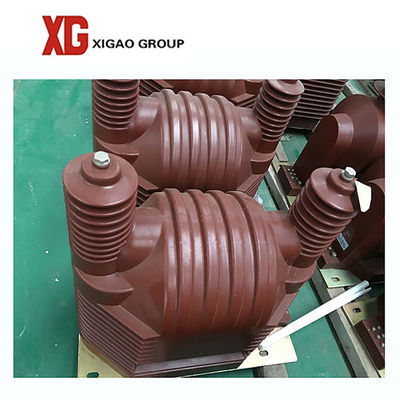

JDZ-35Q 33KV 35KV Single Phase PT Potential Transformer 0

JDZ-35Q 33KV 35KV Single Phase PT Potential Transformer 1





3. Factory



JDZ-35Q 33KV 35KV Single Phase PT Potential Transformer 2



4. FAQ



1. Usually shipped by sea, small order or urgent order we can send you by air.

2. Send the technical data, better for all useful information; we will make a good recommendation.

3. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
