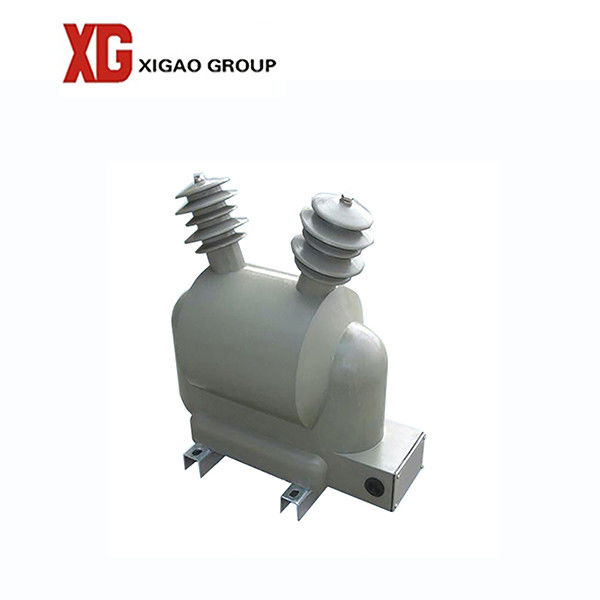

11kV PT Potential Transformer Voltage Transformer Single Phase

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: JDZW10
Minimum Order Quantity: 1 SET
Price: USD100-300
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DYAS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SETS
Detail Information
Usage: Voltage Protection Phase: Single
Coil Structure: TOROIDAL Coil Number: AUTOTRANSFORMER
Rated Insulation Level: 12/42/75kv Ambient Temperature: -45℃ To +40℃
Material: Cast Resin Or Steel Installation Location: Power Plants, Substations And Power Systems Etc
Warranty: 12 Months
High Light:

11kV PT Potential Transformer

,

Single Phase PT Potential Transformer

,

11kV Potential Voltage Transformer


Product Description

11kV potential transformer 11kv voltage transformer

Description

The types of outdoor voltage transformer are full cast- resin insulated used in outdoors. They are used for metering electric energy, voltage control and relay protection in the electricnon-useful ground neutral system up to 50Hz or 60Hz and 10kV. The transformers can beexe cuted according to the standards GB1207-2006 and IEC 60044-2.



Technical data

1 .The voltage transformers are in accordance with GB1207-2006 and IEC 60044-2 standards;

2. Power factor of load: COSφ =0.8(lagging);

3. Creep age distance: the product accords with the request of ιι class;

4. The other technical data see following table:



Type Rated voltage rated (V) Rated output (VA) Limit output (VA) Weight (kg)
0.2 class 0.5 class
JDZW-10 10000/220 25 50 300 22.5
10000/100/220 25 50 200

30





Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



Competitive Advantages

1. We offer high quality products at competitive price.

2. Shortest delivery time.

3. Flexible payment terms.

4. Timely after-sale service.

5. Our products have been exported to Argentina, Egypt, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

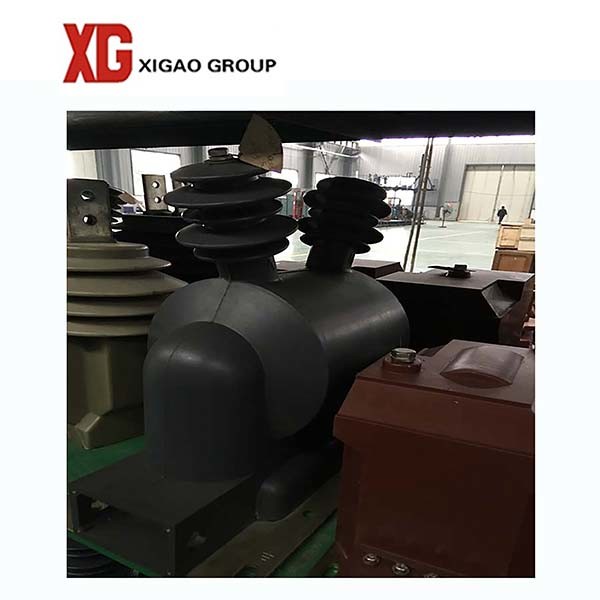

Product photo:

11kV PT Potential Transformer Voltage Transformer Single Phase 0



FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
