Outdoor Waterproof H.V. 33KV 11kv Power Transformer

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO, CCC
Model Number: S9-M&S11-M
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SET
Detail Information
Usage: Power Usage Phase: Three
Coil Structure: TOROIDAL Rated Capacity: 30kva-5000kva
Frequency: 50Hz / 60Hz Material: Copper Or Aluminum
Vector Group: DYN11 / YYN0 Secondary Voltage: 0.4kv
Primary Voltage: 11kv 33kv
High Light:

XG 11kv Power Transformer

,

CCC 11kv Power Transformer

,

YYN0 11kv Power Transformer


Product Description

1. S11 Type 11KV 33KV Outdoor Waterproof H.V. Oil Type Power Transformer

S9-M 11kv oil immersed distribution transformers are widely used for power supply & distribution in
industrial and civil occasions, to step down grid voltage (11, 10.5, 10, 6.3, 6KV) to line
voltage 400, which can serve both indoors and outdoors at an ambient
temperature range -25℃ to 40℃. With reasonable structure design, the transformers
are qualified to withstand short-circuit and overload, and are free of maintenance and easy to repair.
The transformers have S9 and advanced S11 series, the S11 is more recommended for less loss of both load and no-load.
Product standard: IEC60076 & GB1094 and GB/T6451

2. Product Spec. of oil immersed power distribution transformer


Rated Capacity Voltage Combination Coupling

No-load Losses
(W)

Loaded
Losses
(75℃)

Short Circuit Impedance No-load Current
High voltage(KV)

Tapping
(%)

Low voltage
(KV)

30









6
6.3
10









+-5
+- 2*2.5










0.4









Dyn0
Or
Dyn11

210 745






4.0

2.4
50 300 1050 2.4
80 410 1460 1.8
100 450 1665 1.8
125 530 1950 1.6
160 610 2250 1.6
200 700 2670 1.4
250 810 2920 1.4
315 990 3670 1.2
400 1100 4220 1.2
500 1300 5170 1.2
630 1500 6220 1.0
800 1710 7360




6

1.0
1000 1990 8600 1.0
1250 2350 10260 1.0
1600 2750 12420 1.0
2000 3400 15300 0.8
2500 4000 18180 0.8


3. Ambient conditions of oil immersed power distribution transformer​

Altitude: ≤1, 000m
Highest ambient temperature: +40℃
Highest annual average temperature: +20℃
Highest monthly average temperature: +30℃
Lowest temperature: -25℃

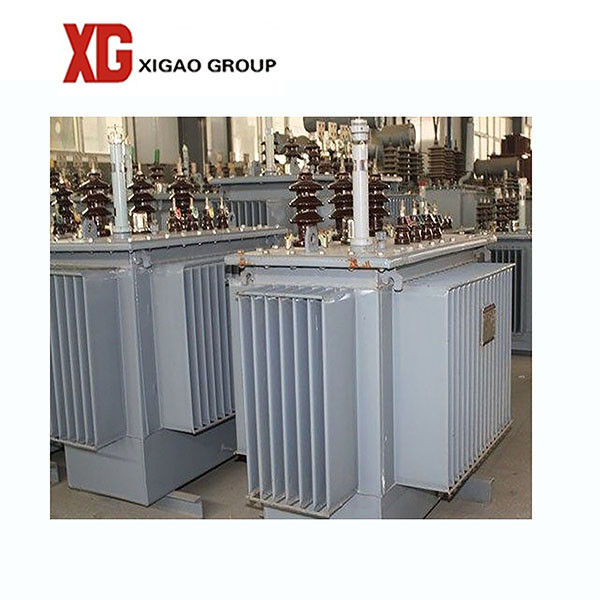

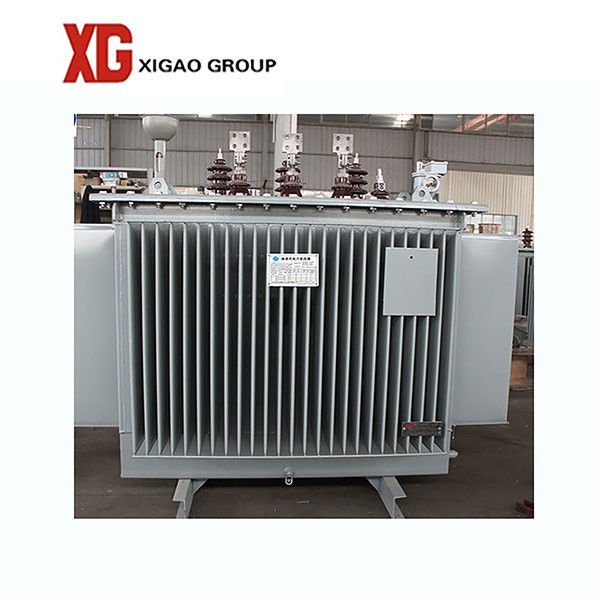

Outdoor Waterproof H.V.  33KV 11kv Power Transformer 0Outdoor Waterproof H.V.  33KV 11kv Power Transformer 1
4. Factory

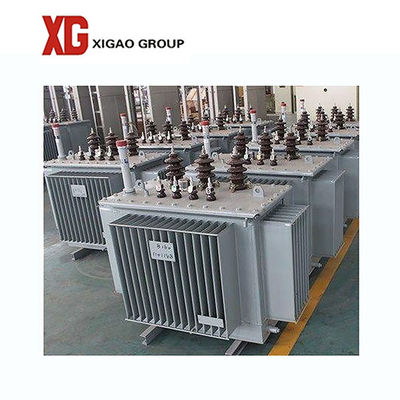

Outdoor Waterproof H.V.  33KV 11kv Power Transformer 2



5. Delivery

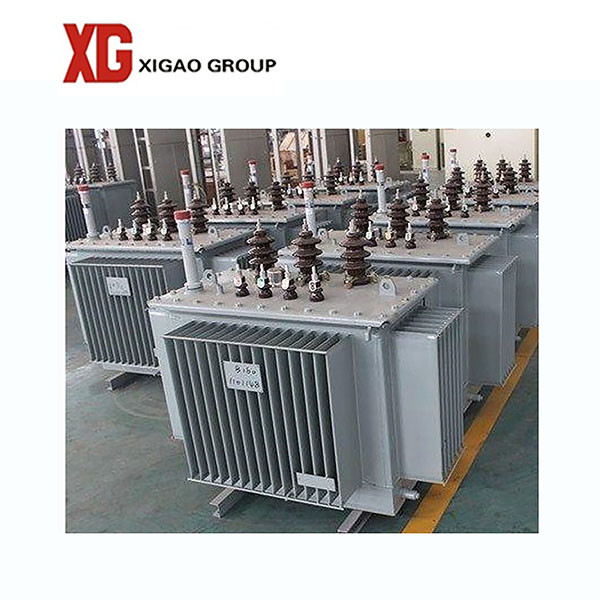

Outdoor Waterproof H.V.  33KV 11kv Power Transformer 3

6. FAQ

1.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
2. For tender cooperation, it is welcome to discuss the detail in between.
3. Some type reports are provided accordingly.
4. Our factory is 250000m2 for production and office.
5. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
