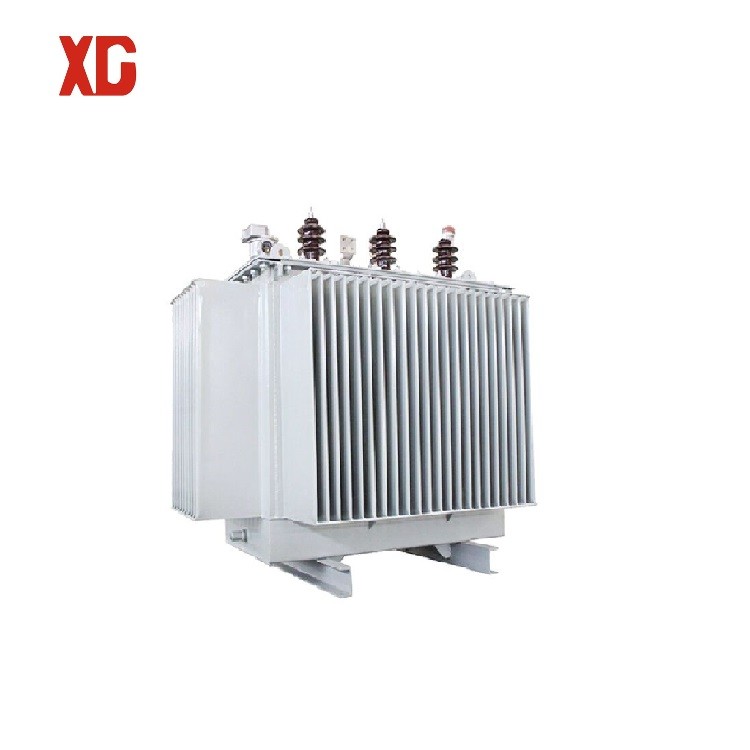

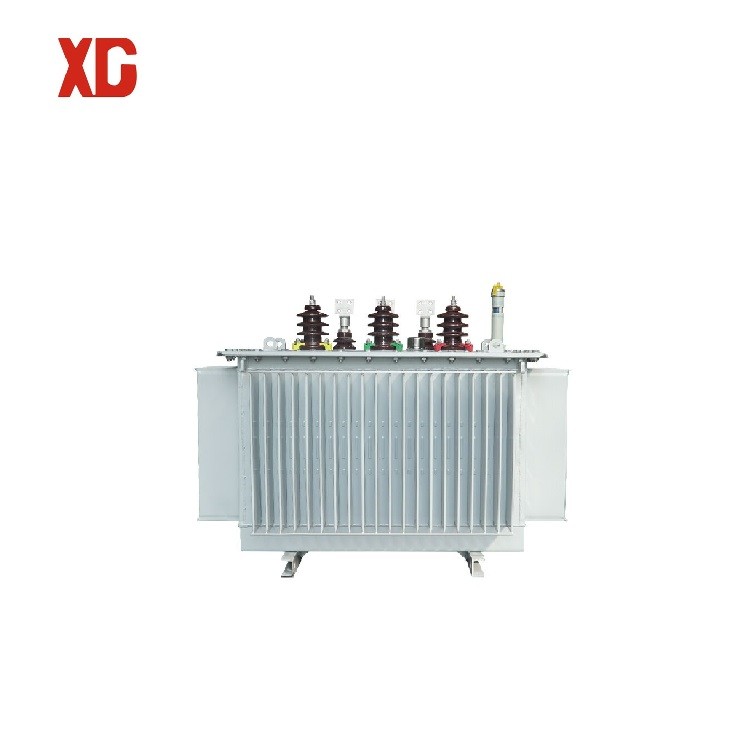

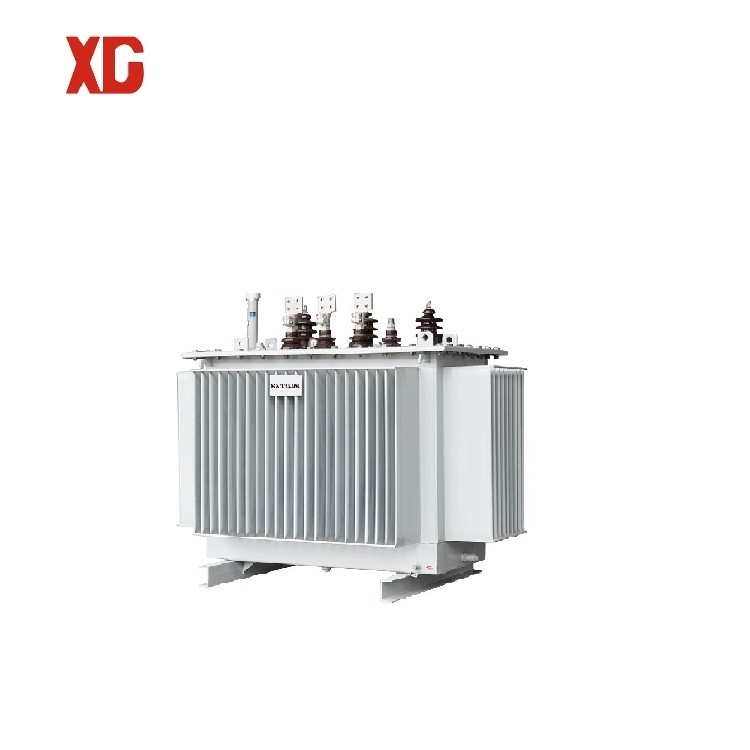

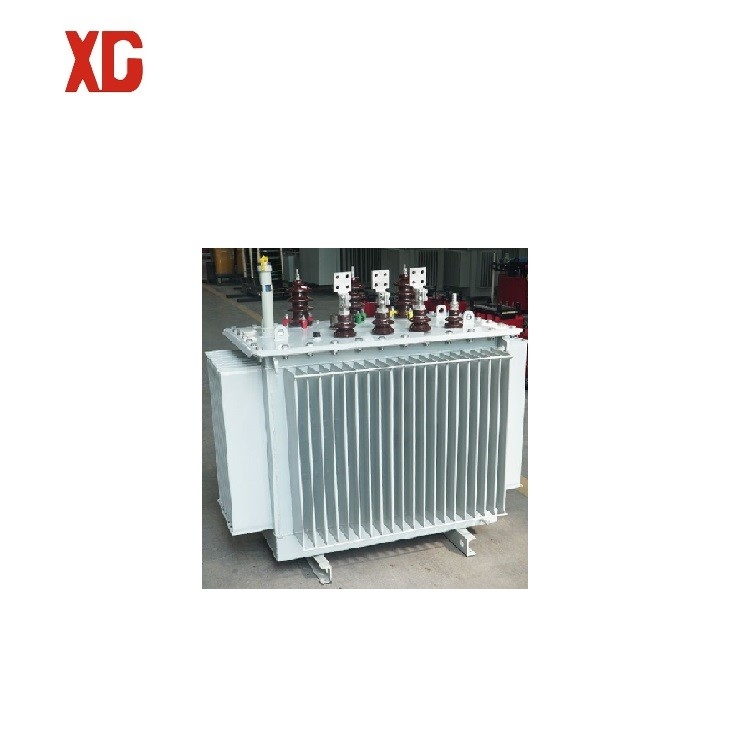

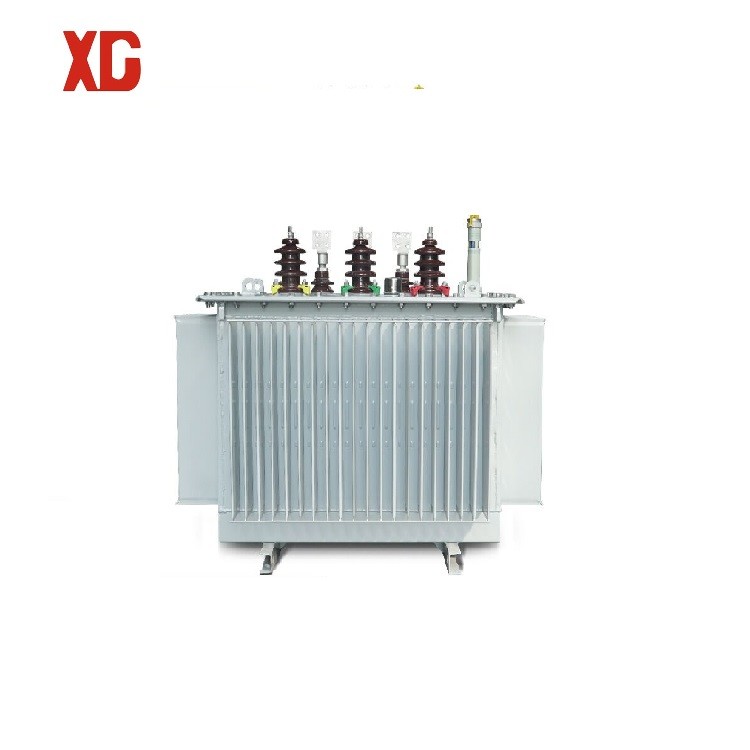

Three Phase Oil Immersed Power Transformer S11-M 10kv 10.5kv 6kv 100kva 500kva 100kva

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO,CCC
Model Number: S11
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Primary Voltage: 10kv Secondary Voltage: 0.4kv
Usage: Power Output Voltage: 200v/220/240/380v/400v/415v/440v
Material: Cooper Frequency: 50/60Hz
Coil Structure: Winding Rated Capacity: 30-2000kva
Windings: Silicon Steel Core/Copper Or Aluminum Winding Phase: Three
High Light:

Three Phase Oil Immersed Power Transformer

,

10.5kv Oil Immersed Power Transformer

,

S11-M Three Phase Transformer


Product Description

1.Product Description



Best quality S11-M power distribution transformer price

The fully sealed transformer is fully oil-immersed. This kind of oil-immersed transformer with the corrugated oil tank shell has been widely used in various power distribution equipments due to its own elasticity to accommodate oil expansion.



2.Product application:

S11-M series fully sealed oil-immersed distribution transformers comply with IEC standards. Its core is made of high quality cold rolled silicon wafer and full diagonal non perforated structure, and its coil is made of high quality oxygen free copper. Corrugated plate or expansion radiator tank.
Because there is no need for oil maintenance device, the height of the transformer is reduced. Because the transformer oil does not contract with the air, the aging of the oil is delayed, so as to prolong the service life of the transformer.
This product is widely used in urban power grid transformation, residential areas, factories, high-rise buildings, mining plants, hotels, shopping malls, airports, railways, oil fields, docks, highways and other outdoor places.

3.Product Features:

(1) Environmental protection transformer with small no-load loss, small no-load current and small noise;
(2) No oil storage box, saving space;
(3) Overall sealing, vacuum filling oil, high insulation stability;
(4) The corrugations on the oil tank are used as the heat dissipation components. The corrugations can expand or contract with the change of the amount of oil
(5) Fully sealed structure, maintenance free;
(6) Equipped with oil level gauge to ensure safe operation.


4.Applicable Environment:



(1) High ambient temperature: +40℃
(2) Low ambient temperature: -25℃
(3) Altitude: <1000m
(4) Monthly average relative humidity: 90% (20℃)
(5) Installation location: Install in a place where there is no fire, explosion hazard, serious pollution, chemical corrosion and severe vibration, indoors or outdoors.



5.Technical parameter



Model Voltage Link Group Short-Circuit impendance(%) loss(KW) Current of no loading(%)
HV LV no loading loading
S11-50/35



























35±5%
38.5±5% 35±2*2.5% 38.5±2*2.5%































0.4





























Yyn0
Dyn11

















6.5

0.17 1.21 2
S11-100/35 0.23 2.01 1.8
S11-125/35 0.27 2.38 1.7
S11-160/35 0.29 2.82 1.6
S11-200/35 0.34 3.33 1.5
S11-250/35 0.41 3.95 1.4
S11-315/35 0.49 4.76 1.4
S11-400/35 0.58 5.75 1.3
S11-500/35 0.69 6.92 1.2
S11-630/35 0.83 7.87 1.1
S11-800/35 0.98 9.41 1
S11-1000/35 1.15 11.54 1
S11-1250/35 1.41 13.94 0.9
S11-1600/35 1.7 16.67 0.8
S11-2000/35 2.18 18.38 0.7
S11-2500/35 2.56 19.67 0.6
S11-3150/35



7

3.04 23.09 0.56
S11-4000/35 3.62 27.36 0.56
S11-5000/35 4.32 31.38 0.48
S11-6300/35



7.5

5.25 35.06 0.48
S11-8000/35 7.2 38.48 0.42
S11-10000/35 8.7 45.32 0.42
S11-12500/35



8

10.08 53.87 0.4
S11-16000/35 12.16 65.84 0.4
S11-20000/35 14.4 79.52 0.4
S11-25000/35 17.02 94.05 0.32




5. FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
