2500KVA 3 Phase Oil Type Power Transformer Immersed Cooled

Basic Information
Place of Origin: XIAN
Brand Name: XG
Certification: ISO,CCC
Model Number: S9
Minimum Order Quantity: 1 SET
Price: USD500-5000
Packaging Details: WOODEN CASE
Delivery Time: 7-15 DYAS
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 500 SETS
Detail Information
Name: 3 Phase Oil Type Power Transformer Rated Capacity: 30kva-5000kva
Rated Voltage: 10KV Primary Voltage: 10kv
Secondary Voltage: 0.4kv Output Voltage: 200v/220/240/380v/400v/415v/440v
High Light:

3 Phase Oil Type Power Transformer

,

2500KVA Oil Type Power Transformer

,

2500KVA transformer oil immersed type


Product Description

2500KVA 3 Phase Oil Type Power Transformer Immersed Cooled



1. Oil Type Power Transformer Features



1. The transformer core is made of imported high quality cold rolled silicon steel, which greatly reduces the no-load loss and no-load current, and the core is bound to ensure the tightness of the core and reduce the noise.

2. The high and low voltage winding is made of anaerobic copper, the low-voltage winding 500KVa and the following are twin-barrel cylindrical structures, 630KVa and above are foil coils, and the high voltage windings are made of cylindrical structures.

3. The transformer connection group adopts Dyn11 to reduce the influence of harmonics on the power grid and improve the quality of power supply.



2. Reliable Structure

Based on the traditional structure and mature technology, our company has made many improvements, such as:
1) Spiral coil with longitudinal oil passage, better internal heat dissipation;
2) Improved the effective support of the coil end surface, and the ability to resist short-circuit current is stronger;
3) The new hoisting structure and body positioning structure are adopted to ensure more reliable in long-distance transportation and operation;
4) We have many unique and reliable structures to serve you;
5) Selecting a transformer with a higher performance level will have a higher level of technical content.



3. Excellent Materials

1) Oxygen-free copper wire with lower resistivity is selected, and after a series of additional surface treatments, it is smoother and free of burrs and sharp corners, making the load loss of the transformer lower and the electrical performance more reliable.
2) Select high-quality silicon steel sheets. With the improvement of performance level, use silicon steel sheets with lower unit loss to make the transformer no-load loss lower.
3) Select high-quality laminated wood insulation parts, never crack, even under the action of short-circuit current, the wire will not move.
4) Transformer oil after deep filtration is selected. The lower water, gas and impurity levels make the transformer work more reliable.

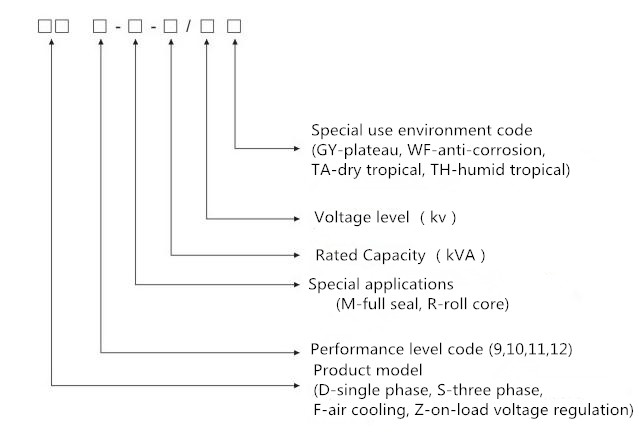

4. Product Standards

SNTOOM  S9-2500KVA 33/0.4KV 3 Phase Electric Oil Immersed Transformer

5. Service Condition

Transformer normal use conditions
The altitude does not exceed 1000m;
Ambient temperature:
Maximum temperature +40℃
The average temperature of the hottest month is +30°C
The highest annual average temperature +20℃
Outdoor minimum temperature -25℃



Transformer special use conditions

The altitude exceeds 1000m;

Ambient temperature:
Maximum temperature +40℃
Minimum temperature -25℃

(Specify when ordering)

6.Product Informations

2500KVA 3 Phase Oil Type Power Transformer Immersed Cooled 1

Parameters

Projects Parameters
Rated Capacity 2500kVA
High voltage 33 35 36.5 38.5KV
Low voltage 0.4 KV
Connection symbol Yyn0
Impedance voltage 6.5%
Tapping range of high-voltage ±5% ± 2 ×2.5%
No-load Loss 3.15kW
Load Loss 23.0kW
No-load current(%) 0.8%
Outline dimension 2370×1840×2490mm
Gauge vertical/horizontal 1070/1070mm
Total Weight(kg) 5840kg

2500KVA 3 Phase Oil Type Power Transformer Immersed Cooled 2



Service:

1.XIGAO Electricenergy Group Co., Ltd is founded in 1993, 320000m2 plant, specialized in manufacturing high & low voltage power transmission and distribution (PTD) equipment, always focusing on the business at collection of research, design, OEM, ODM and trade in CN.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.



FAQ:

1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
