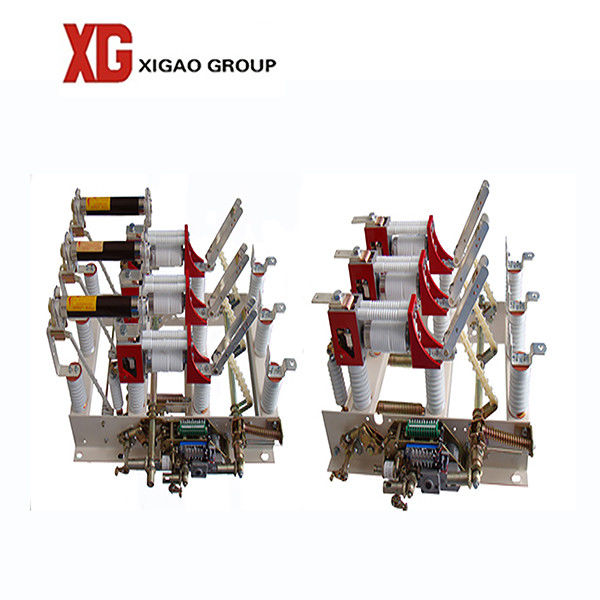

24kv 630a High Voltage Load Break Switch Light Weight

Basic Information
Place of Origin: XIAN, China
Brand Name: XG
Certification: ISO CCC
Model Number: FN5
Minimum Order Quantity: 1 SET
Packaging Details: WOODEN CASE
Delivery Time: 3-7 DAYS
Payment Terms: L/C, D/P, D/A, T/T, Western Union, MoneyGram
Supply Ability: 2000 SET
Detail Information
Type: Indoor Rated Voltage: 7.2kV, 12kV, 17.5kV, 24kV
Rated Current: 400A 630A, 1250A, 1600A, 2000A Frequency: 50/60Hz
Poles Number: 3 Phase: 3 Phase
Medium: Vacuum Material: Galvanized Sheet And Accessories
High Light:

630a High Voltage Load Break Switch

,

24kv High Voltage Load Break Switch

,

24kv 630a HV Load Break Switch


Product Description

1. 24kv 630a High Voltage Load Break Switch Light Weight



High Voltage Load Break Switch is used for the three-phase AC 50/60Hz RMU and terminal power station. The switches are suitable for protecting the 10kV, 24kV, and 35kV power systems on load situations. Compared to product of the kind in a foreign country, its technical parameter has reached the international level with the features of small volume and lightweight.



2. Product parameter



Name Unit Parameter
Rated voltage kV 12
Max. working voltage kV 12.7
Rated frequency Hz 50
Rated current A 400 630
Rated short-time withstand current kA/s 12.5/4 20/2
Rated peak withstands current kA 31.5 50
Rated short-circuit switch-off current A 400 630
Rated power load switch -off current A 400 630
5% rated power load switch-off current A 20 31.5
Rated capacity switch-off current A 10
Rated inductance switch-off current A 40
Rated transfer current kA 1.3
1min power frequency withstand voltage to ground interphase/isolation break kV 12/48
Lighting impulse resisting voltage (peak) to groundinterphase/isolation break kV 75/85



3. Application



It is used in the network of 50Hz rated voltage 6-12kV for breaking load, over-load, and short-circuit current. It is equipped with a CS6-I type handle operating mechanism. It is for the CS handle mechanism.
Service condition
(1). The altitude does not exceed 1000m.
(2). The ambient air temperature: Max.: +40. Min.: -10.
(3). The relatire humidity of air diaily average ≤ 90%, monthly average ≤ 95% (temperature: 25 ).
(4). The ambient air should not be obviously polluted by corrosivity and the flammability gas. Etc.
(5). The working site is without frequent violent.



4. Factory showing room



24kv 630a High Voltage Load Break Switch Light Weight 0



5. Certificate



24kv 630a High Voltage Load Break Switch Light Weight 1



6.Delivery



24kv 630a High Voltage Load Break Switch Light Weight 2



7.FAQ



1. Technology ensure the quality satisfy international request.

2.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.

3. For tender cooperation, it is welcome to discuss the detail in between.

4. Some type reports are provided accordingly.

5. Our factory is 250000m2 for production and office.

6. There are four subsidies in our group company. So our whole group company can produce switchgear, power transformer, load break switch, disconnect switch, vacuum/sf6 circuit breaker, fuse, surge arrester, CT PT, Metering unit.
