| Usage: | Power | Phase: | Three |
|---|---|---|---|
| Coil Structure: | TOROIDAL | Rated Capacity: | 30kva-5000kva |
| Frequency: | 50Hz/60Hz | Rated Voltage: | 33kv 35kv 40.5kv |
| Vector Group: | Dyn11 / Yyn0 | Winding: | Copper |
| High Light: | SFZ9-35 Oil Immersed Power Transformer,33kv Oil Immersed Power Transformer,35kv Oil Immersed Power Transformer |
||

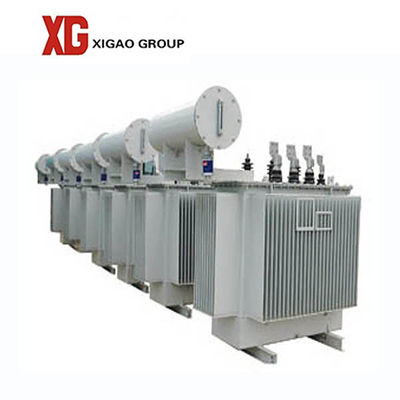

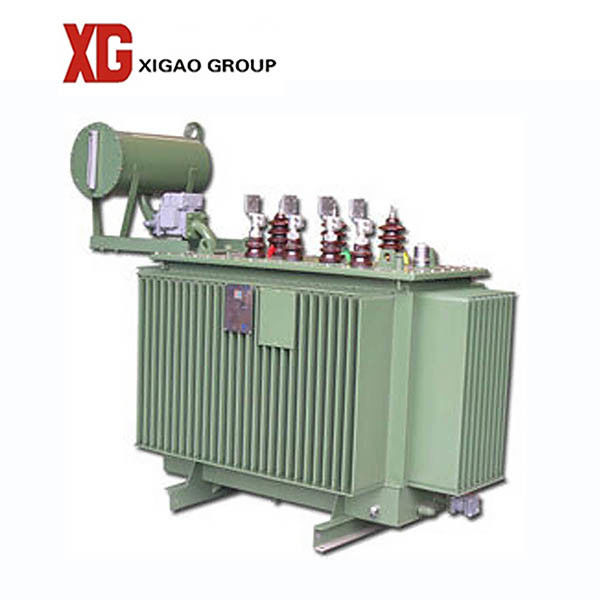

1. SFZ9-35 Type 33kv 35kv Oil Immersed 3 Phase Oil Type Power Transformer
The three-phase oil immersed distributing transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is make of high-quality cold-rolled silicon-steel plate. High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.
2. Working condition SFZ9 DyA 1000kVA 1250kVA 2000kVA power transformer
3. Transformer Tank
a. The transformer does not include trolley
b. The welding parts should meet the specified of GB6451-1999;
c. The transformer includes fuel outlet valve.
4. Data
|
Rated Capacity
|
Voltage ratio
|
Vector group
|
no-load loss(KW)
|
impedance
|
|
10kva
|
400/380/220/110/12v
|
Dyn11/dyn5/Yyno/Ynd1
|
0.08
|
4%
|
|
50kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.13
|
4%
|
|
100kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.2
|
4%
|
|
200kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.34
|
4%
|
|
500kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
0.68
|
4%
|
|
1000kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
1.15
|
4.5%
|
|
1600kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
1.64
|
4.5%
|
|
2500kva
|
33kv/11kv/6kv/0.4kv/0.38kv
|
Dyn11/dyn5/Yyno/Ynd1
|
2.31
|
4.5%
|
|
10MVA
|
69kv/35kv/20kv/15kv/11kv
|
Dyn11/dyn5/Yyno/Ynd1
|
|
|
|
24MVA
|
220kv/110kv/69kv/35kv/11kv
|
Dyn11/dyn5/Yyno/Ynd1
|
|
|
|
100MVA
|
400kv/220kv/110kv/69kv/35kv
|
Dyn11/dyn5/Yyno/Ynd1
|
