Rated Capacity: | 30kva-5000kva | Frequency: | 50Hz/60Hz |
---|---|---|---|
Rated Voltage: | 10kv | Vector Group: | Dyn11 / Yyn0 |
Output Voltage: | 200v/220/240/380v/400v/415v/440v | Cooling Method: | ONAN |
Coil Structure: | Winding | Type: | Dry Type, Cast Resin |
High Light: | SCB9-6KV Dry Type Power Transformer,10KV Dry Type Power Transformer,33KV Dry Type Power Transformer |
1. Safe, fire-retardant, pollution-free, can be installed directly in the load center.
2. Maintenance-free, easy to install and integrated operation cost is low.
3. It has good moisture-proof performance and can operate normally under 100% humidity.
4. Low loss, low partial discharge, low noise, cooling ability, forced air cooling conditions can be 150% rated load operation.
5. It is equipped with perfect temperature protection control system to provide reliable guarantee for transformer safe operation.
6. Reliability is high. According to the operation research of the products that have been put into operation, the reliability index of the products has reached the international advanced level.
2. Technical data
Rated Capacity(KVA) | Voltage combination | Link Group | No load Loss(W) | Loading Loss(W) | No load current | Impedance voltage | |||
(KV)HV | Adjust | (KV) LV | |||||||
SCB11 | 30 | 6 6.3 6.6 10 10.5 11 | ±5% or ±2x2.5% | 0.4 | Yyn0 or Dyn11 | 170 | 710 | 2.0 | 4 |
50 | 240 | 1000 | 2.0 | ||||||
80 | 330 | 1380 | 1.5 | ||||||
100 | 360 | 1570 | 1.5 | ||||||
125 | 420 | 1850 | 1.3 | ||||||
160 | 480 | 2130 | 1.3 | ||||||
200 | 550 | 2530 | 1.1 | ||||||
250 | 640 | 2760 | 1.1 | ||||||
315 | 790 | 3470 | 1.0 | ||||||
400 | 880 | 3990 | 1.0 | ||||||
500 | 1040 | 4880 | 1.0 | ||||||
630 | 1170 | 5960 | 0.85 | 6 | |||||
800 | 1360 | 6960 | 0.85 | ||||||
1000 | 1590 | 8130 | 0.85 | ||||||
1250 | 1880 | 9690 | 0.85 | ||||||
1600 | 2200 | 11700 | 0.85 | ||||||
2000 | 2740 | 14400 | 0.7 | ||||||
2500 | 3240 | 17100 | 0.7 |

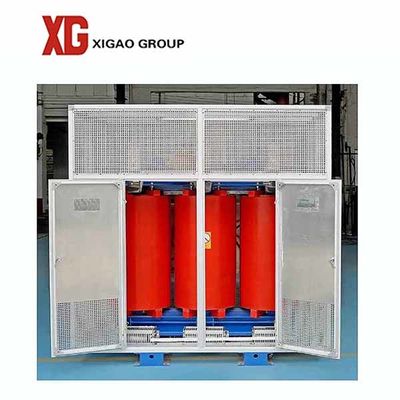

3. Photo
4. Factory
5. Delivery
6. FAQ
1. All our activities are accredited to ISO 14001:2015 and IEC standard.
2. Technology ensure the quality satisfy international request.
3.Generally we promise one - two years quality guarantee, some products will be extended longer time for life span.
4. For tender cooperation, it is welcome to discuss the detail in between.
5. Some type reports are provided accordingly.
6. Our factory is 250000m2 for production and office.
