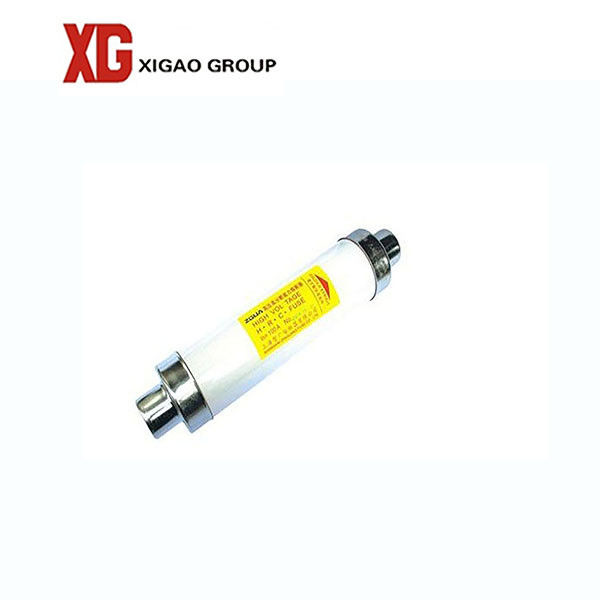

XRNT Single Phase 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse

Basic Information
Place of Origin: XIAN,CHINA
Brand Name: XG
Certification: ISO, CCC
Model Number: XRNT
Minimum Order Quantity: 3-5 SET
Packaging Details: WOODEN CASE
Delivery Time: 1-3 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 SET
Detail Information
Phase: Single Rated Frequency: 50HZ/60Hz
Rated Voltage: 10kv Breaking Capacity: High
Color: White, Brown Usage: High Voltage
Material: Porcelain Ambient Temperature: -45℃ To +40℃
High Light:

XRNT HRC Fuse

,

ISO HRC Fuse

,

CCC HRC Fuse


Product Description

1. XRNT Type 3.6kv 7.2kv 12kv 24kv 35kv Current Limit Fuse HRC Fuse

This product is suitable for indoor AC 50Hz, rated voltage 3.6KV, 7.2KV, 12KV, 24KV, 40.5KV system. It can be used together with other switchgear such as load switch and vacuum contactor, as short circuit and overload of power transformer and other equipment. Protection component. It is also a necessary accessory product for high-voltage switch frames, ring net frames, and high/low voltage pre-installed substations.

2. Technical Data Sheet


Model

Rated
Voltage
Un (KV)

Melt Rated
Current
In (A)

Melt tube
Size
φ*C (mm)

Remark
XRNTSDL-J7.26.3,10,16,20,25,31.5,40,50φ51*292T-cap
XRNTSFL-J7.263,71,75,80,100,125φ76*292T-cap
XRNTSXL-J7.2160,200,250,315φ88*292T-cap
XRNTSFM-J7.2100,200,125,160φ76*442T-cap
XRNTSDL-J126.3,10,12.5,16,20,25,31.5,40φ51*292T-cap
XRNTSFL-J1250,63,71,75,80,100,125φ76*292T-cap
XRNTSXL-J12160,200,250,315φ88*292T-cap
XRNTSDM-J126.3,10,16,20,25,31.5,40φ51*442T-cap
XRNTSFM-J1250,63,80,100,125φ76*442T-cap
XRNTSXM-J12160,200φ88*442T-cap
XRNTSDM-J246.3-31.5φ51*442T-cap
XRNTSFM-J2440-125φ76*442T-cap
XRNTSDQ-J40.52,3.15,6.3,10,16φ51*537T-cap
XRNTSFQ-J40.520,31.5,40φ76*537T-cap
XRNTSXQ-J40.550,63φ88*537T-cap
XRNTSKY-J40.550,63φ76*650Flat cap


10kv maximum short-circuit breaking current (breaking capacity) 50KA (h1); 40.5kv maximum short-circuit breaking current 31.5KA (l2) 2.Minimum breaking current; 4 points of fuse rated current (below 100A) 7 bits (125A or more) with rated current of 100A (l3) fuse containing 125A (l3).


3. Photo



XRNT Single Phase 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 0XRNT Single Phase 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 1
4. Delivery


XRNT Single Phase 3.6kv 7.2kv 12kv 24kv 35kv HRC Fuse 2


5. FAQ



1. Send the technical data, better for all useful information; we will make a good recommendation.

If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.

2. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.

3. Usually shipped by sea, small order or urgent order we can send you by air.

4. All our activities are accredited to ISO 14001:2015 and IEC standard.

5. Technology ensure the quality satisfy international request.
